Pitney Bowes 7H20C - Page 146

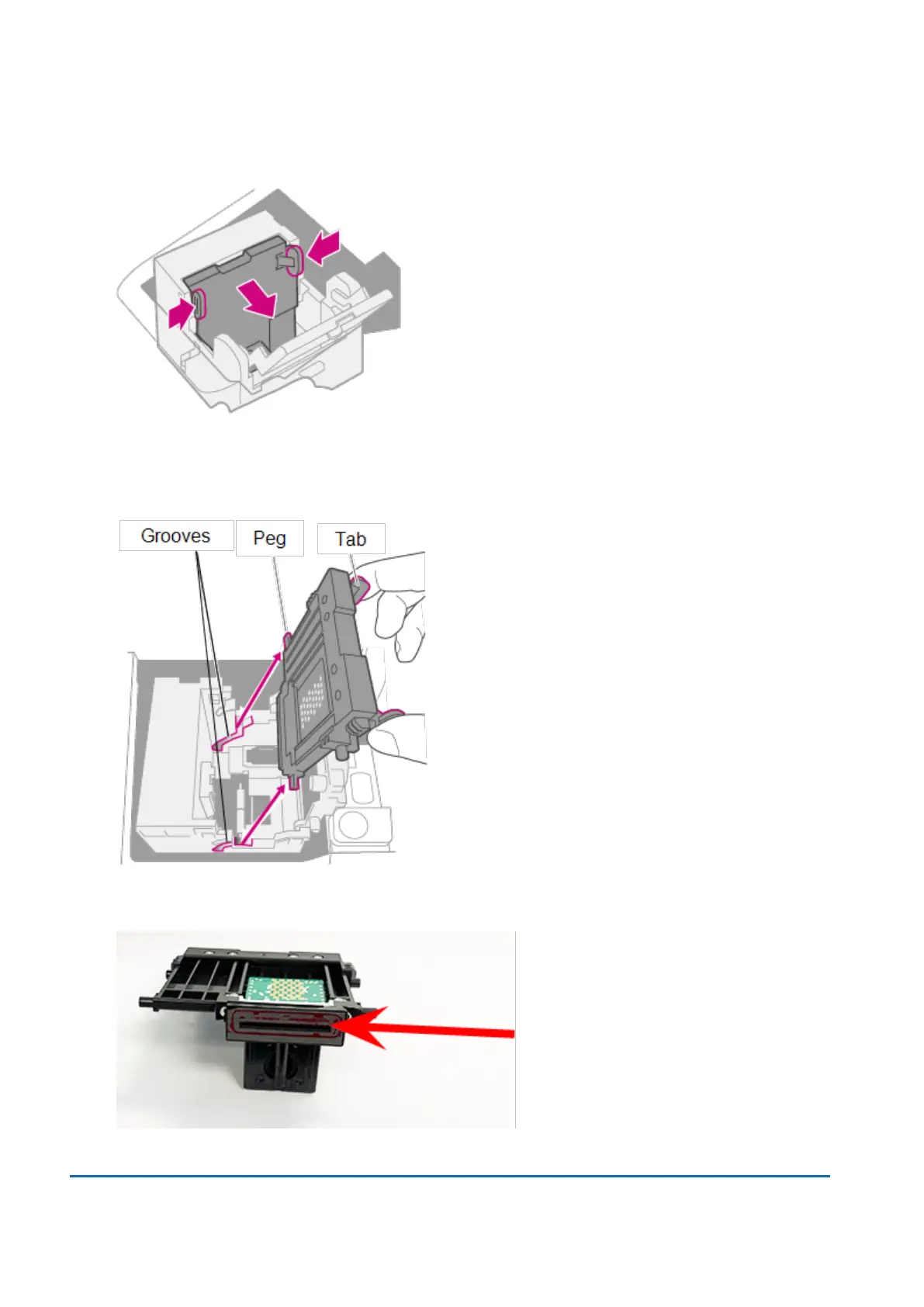

7. Squeeze the tabs on either side of the printhead.
8. While squeezing, lift and tilt to the printhead to the right. The printhead should come up out of
the device.
9. Clean off the printhead by wiping the surface of the printhead with a dry, lint-free cloth or a foam
swab.
15 • Maintenance
Pitney Bowes User Guide March 2023 146
