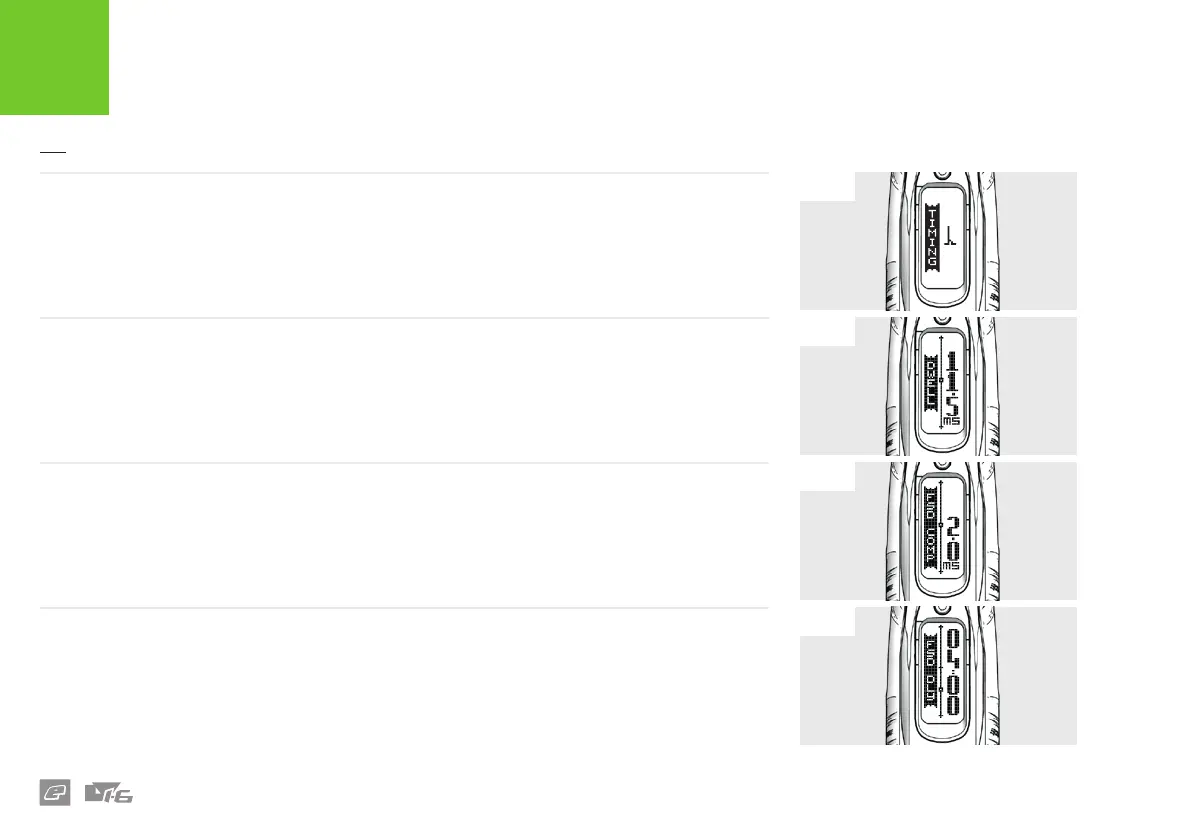

USER INTERFACE PARAMETERS
FIG-1 - TIMING MENU
The TIMING menu parameters control the energise time of the solenoid valve.
FIG-3 - FSD COMP PARAMETER
‘First Shot Drop-O’ is a reduction in velocity of
the rst shot when the marker has not been red
for some time. This parameter adds extra DWELL
time to the rst shot in order to compensate.
This parameter can be set between 0.0 and 5.0
milliseconds in 0.1 increments.
FIG-4 - FSD DLY PARAMETER
This sets the amount of time that must pass
before the FSD COMP is applied to a shot.
This parameter can be set between 00:00 and
04:00 minutes in 5 second increments.
FIG-2 - DWELL PARAMETER
Sets the amount of time that the solenoid valve
is energised during each ring cycle. Setting this
parameter too low will result in low velocity shots
and excessive velocity/shot uctuations.
If set too high the marker will waste gas.
This parameter can be set between 5 and 20.0
milliseconds in 0.1 increments.
