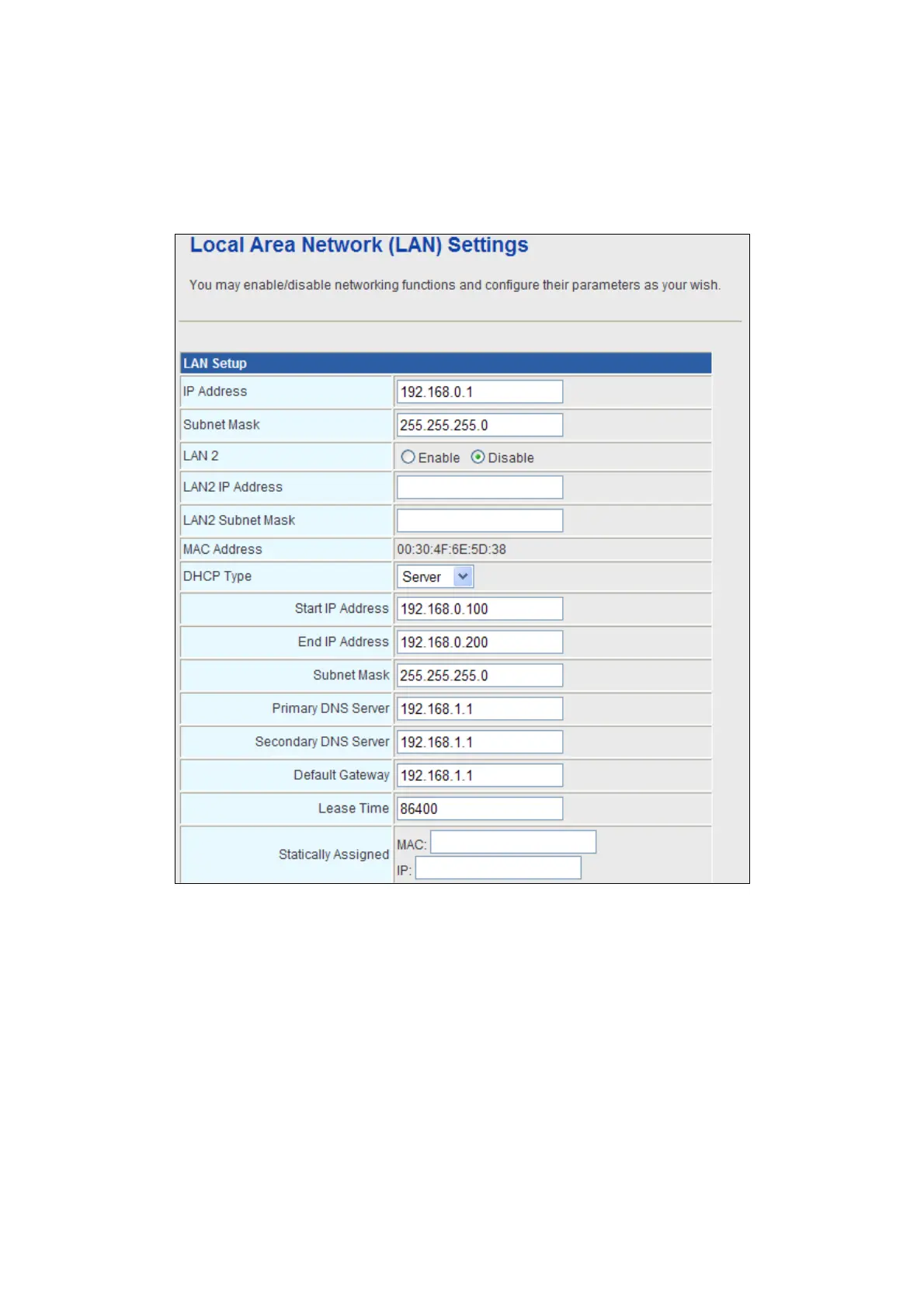

3.2.2 LAN
This page allows you may enable or disable networking functions and configure their
parameters according to your practice.
IP Address: Enter the IP address of LAN port.
Subnet mask: Enter the subnet mask of LAN port.
LAN2: The second IP switch of LAN port. You can enable or disable this function.
LAN2 IP Address: The second IP address of LAN port.
LAN2 Subnet Mask: The second IP Subnet Mask of LAN port.
MAC Address: MAC address of LAN port (Read-only).
DHCP Type: You can select Server or Disable. If you select Disable, the DHCP
service of LAN port is disabled. After selecting Server, you can set the following items.
Start IP Address: The first IP address that DHCP server assigns.
End IP Address: The last IP address that DHCP server assigns.
Subnet Mask: The subnet mask of dynamic IP.
