3.5.3 OAM Configuration
 802.3ah OAM Configuration
When enable 802.3ah OAM function, all 802.3ah OAMPDU packets will trap to embedded
CPU. Software will implement auto discovery procedure. With hardware support, software
controls the 802.3ah remote loop back procedure. Hardware can also detect dying gasp
even and interrupt CPU to send dying gasp even notification OAMPDU. All other functions
defined by 802.3ah are implemented using embedded CPU.
When remote device is in loop back mode, hardware can support change looped test
frame’s DA, SA or both as user defined. Hardware can also set to don't change looped test
frame.

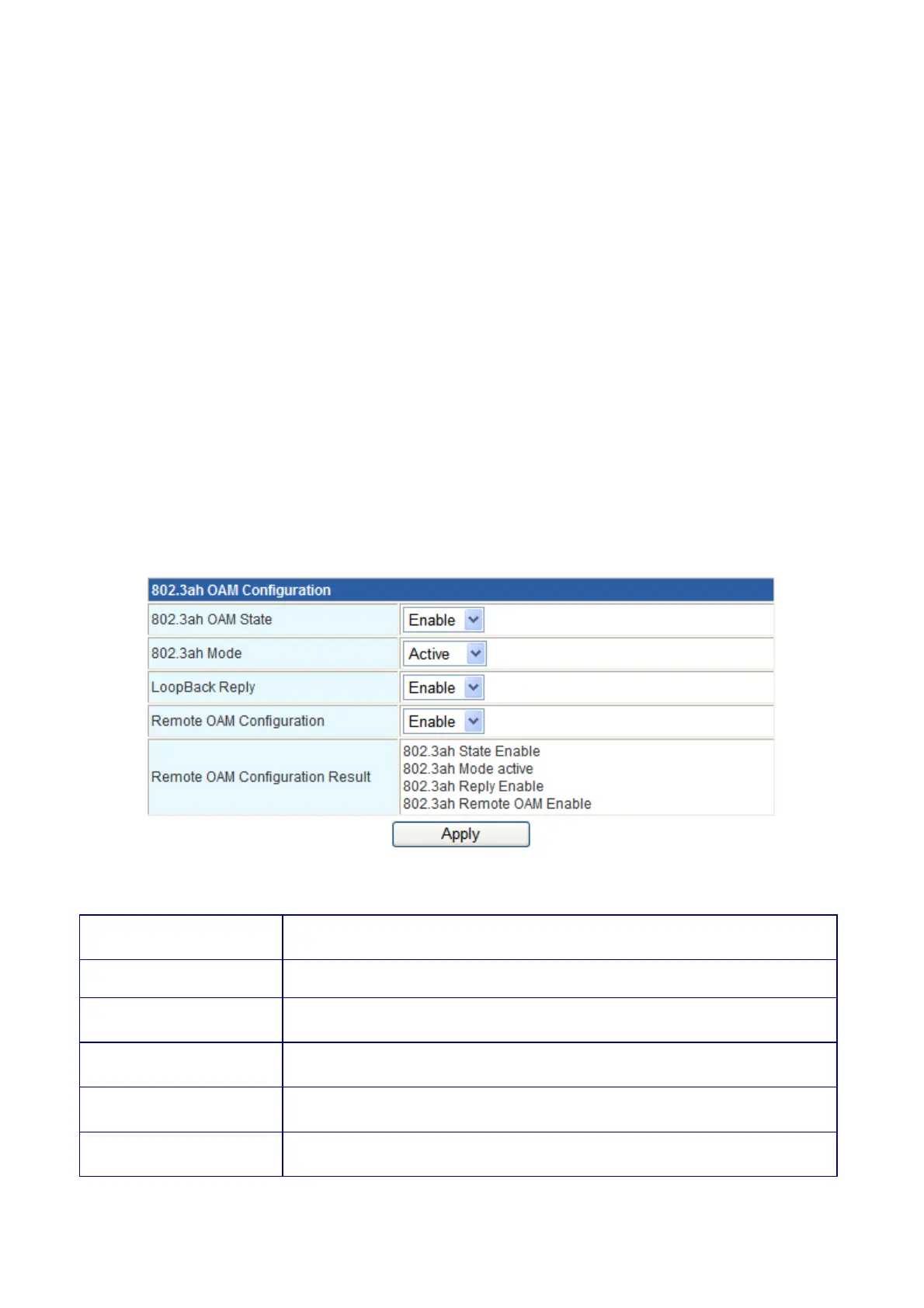

This function provides 802.3ah Setup of Managed Media Converter. Press the “Apply”
button to save the current configuration of Managed Media Converter. Below Figure and
Table describes the 802.3ah Setup object of Managed Media Converter.
The 802.3ah OAM Configuration Web page includes the following configurable data:
802.3ah OAM State Provide disable or enable the 802.3ah OAM State function.
Default mode is Enable.
802.3ah OAM Mode Allow to choose “Active” or “Passive” for 802.3ah OAM Mode.
Loopback Reply Provide disable or enable the Loopback Reply function. Default
mode is Enable.
Remote OAM
Configure
Provide disable or enable the Remote OAM Configure function.
Default mode is Enable.
Remote OAM
Configuration Result
Display the Remote OAM Configuration Result.
Apply button Press this button for save current configuration of Managed
Media Converter.
Table Descriptions of the 802.3ah Setup Web Page Screen Objects
