Appendix A
A.1 Device‘s RJ-45 Pin Assignments
■
10/100Mbps, 10/100Base-TX
Contact MDI MDI-X
1 1 (TX +) 3
2 2 (TX -) 6
3 3 (RX +) 1
6
6 (RX -)
2
4, 5, 7, 8
Not used
Not used
Implicit implementation of the crossover function within a twisted-pair cable, or at a wiring
panel, while not expressly forbidden, is beyond the scope of this standard.
A.2 RJ-45 cable pin assignment
2 1 3 6
1
2
3
6
2 1
3 6
There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin
allocation and color of straight cable and crossover cable connection:

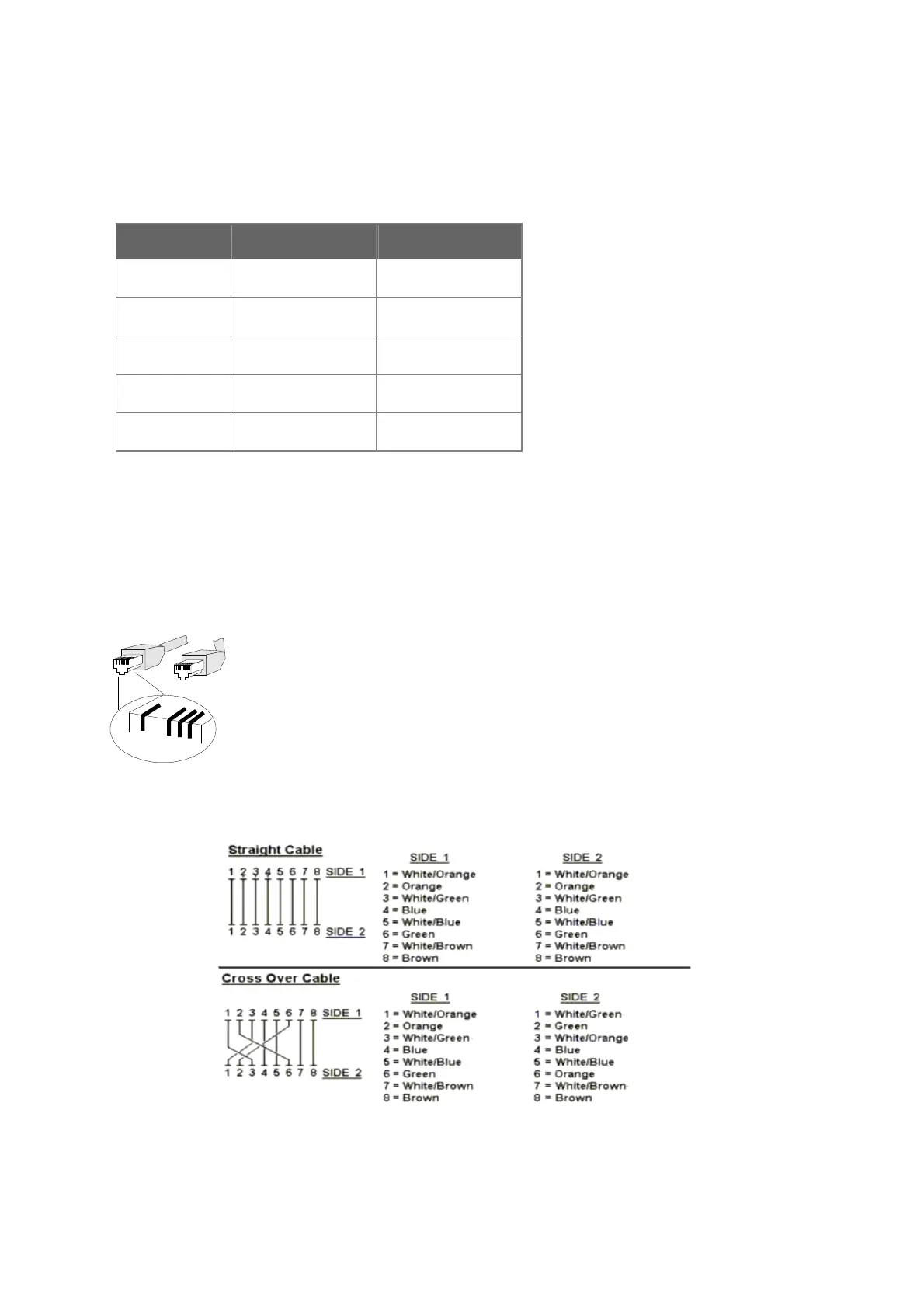

Figure A-1: Straight-Through and Crossover Cable
Please make sure your connected cables are with same pin assignment and color as above picture before
deploying the cables into your network.
