- 91 -

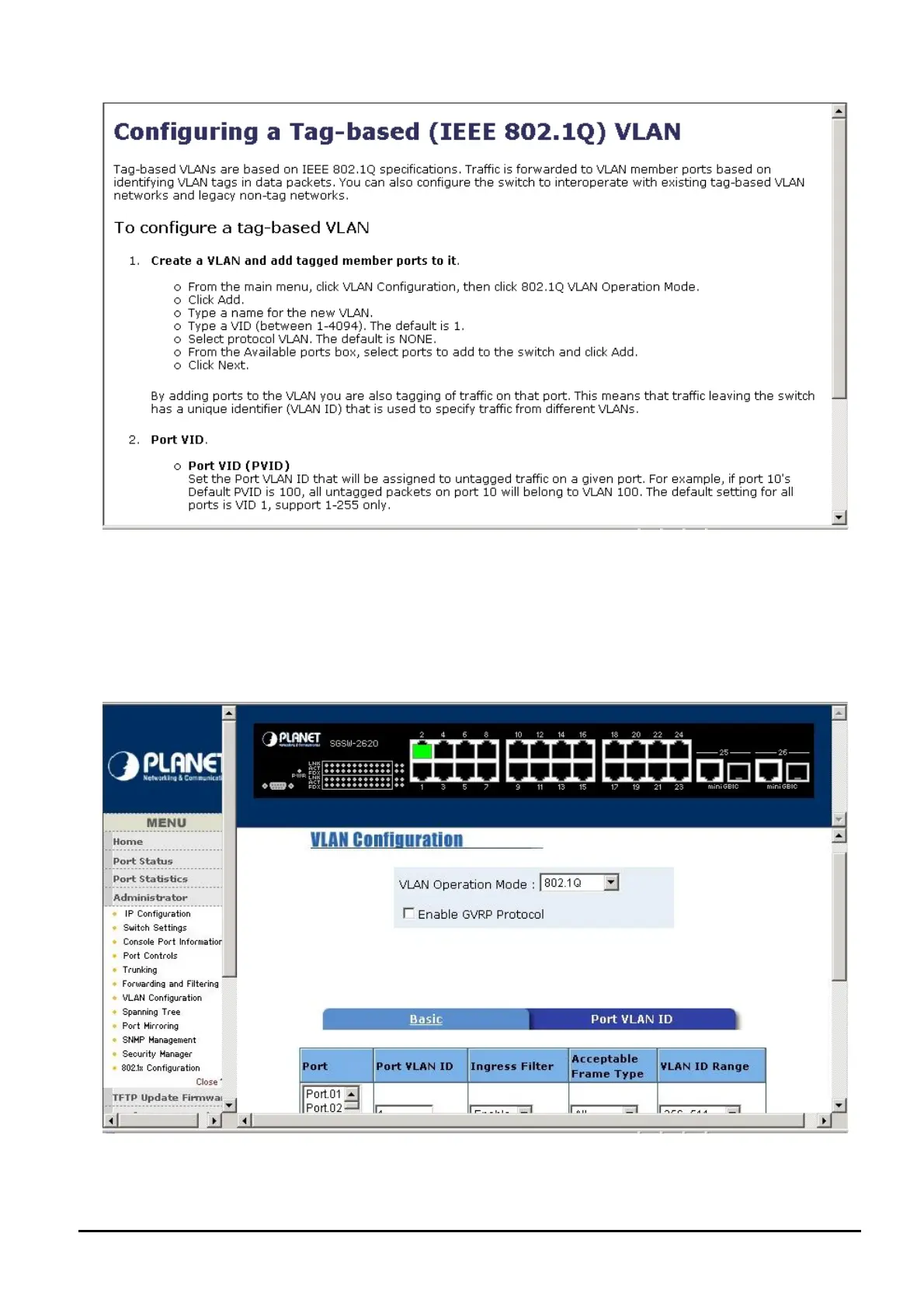

Figure 5-35 SGSW-2620 IEEE 802.1Q VLAN Help Web Page screen
Click “Close” to close this screen.
Port VID:
In order for an end station send packets to different VLANs. Itself has to be either capable of tagging
packets it sends with VLAN tags or attached to a VLAN-aware bridge that is capable of classifying and tagging
the packet with different VLAN ID based on default PVID and other packet information. The screen in Figure
5-36 appears. Table 5-8 describes the Port VLAN ID objects of switch.
Figure 5-36 SGSW-2620 Port VID setting Web Page screen
