User Manual of WAP-200N/WBS-200N
-34-

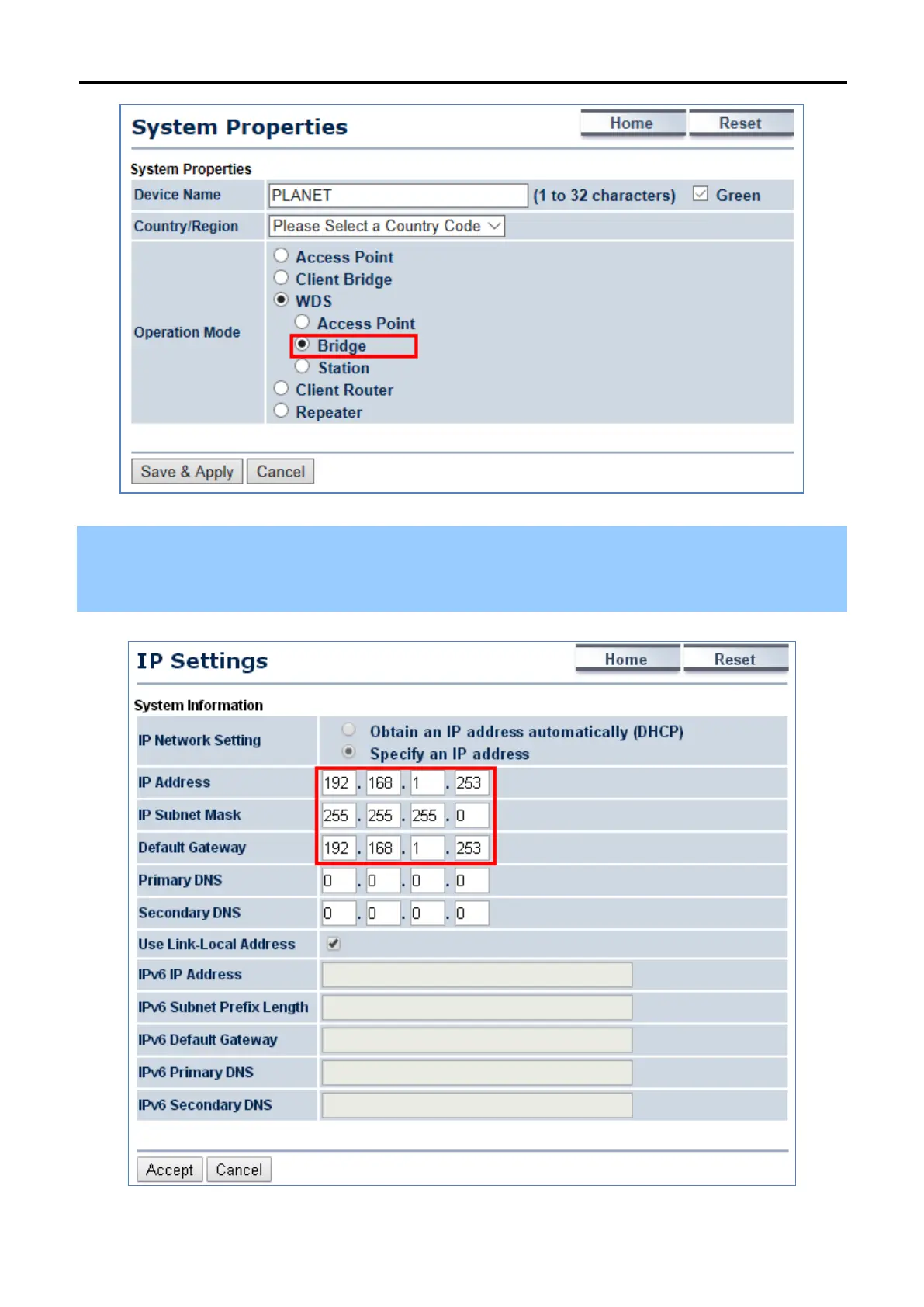

Step 2. Go to the “System  IP Settings” page to configure LAN IP of central site and remote site. The LAN IP
must be different at both sites. In this example, the master AP at the central site is configured to
192.168.1.252 and the slave AP at remote site is configured to 192.168.1.253.
