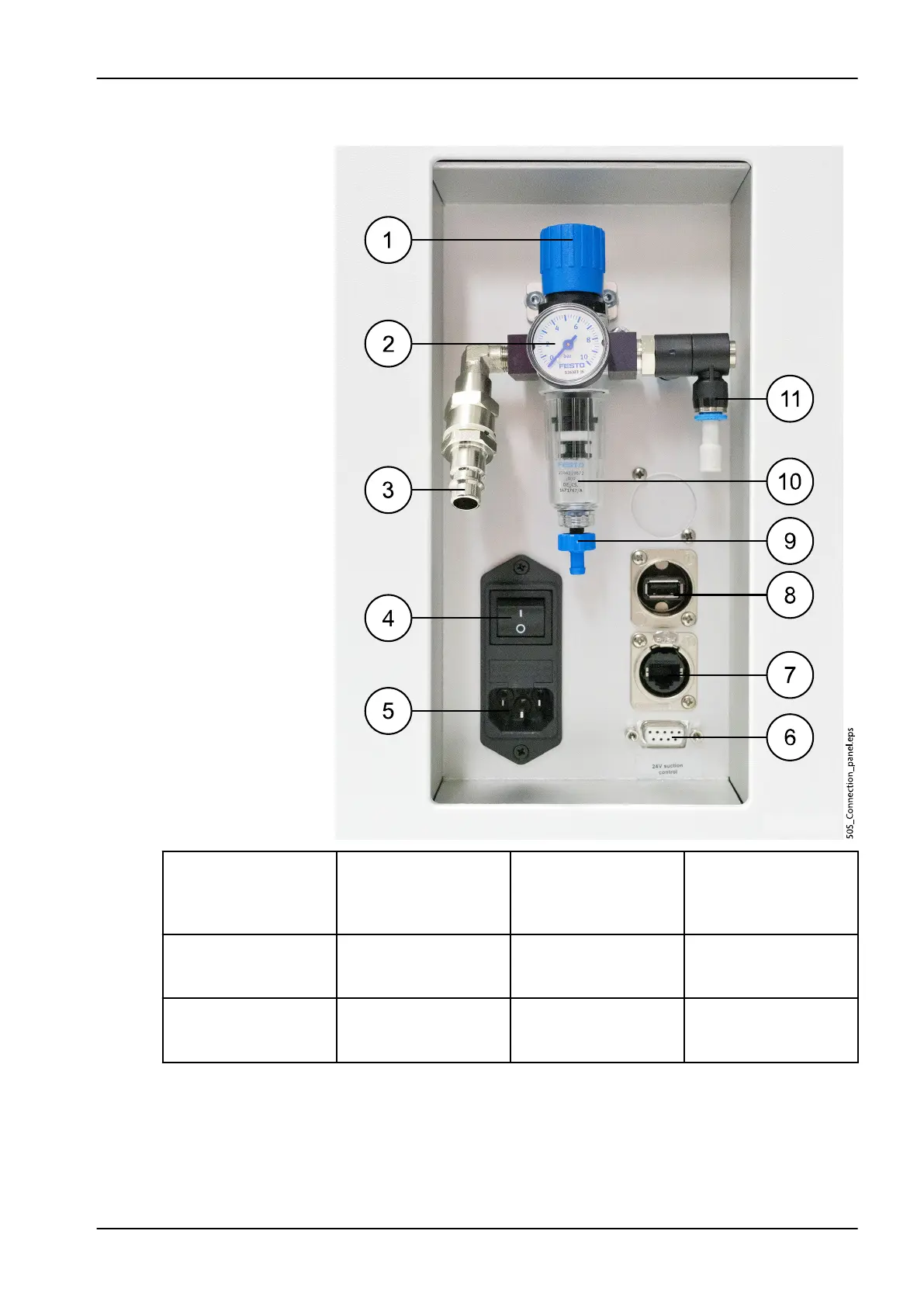

6.4 Connection panel with maintenance unit
1. Compressed air
adjusting valve (> 6 to
9 bar)
2. Pressure display
(bar)
3. Compressed air
connection (plug-in
nipple NW 7.2 (quick
connection))
4. Mains switch (on/off
switch)
5. Mains connection for
cold units - connection
cable
6. Control line for
extraction system (sub-
D connection)
7. Network connection
(RJ-45)
8. USB-B connection
9. Drainage valve on
the separation tank
10. Separation tank 11. Additional
compressed air outlet
(blank)
