6.5 Tool magazine (direct changer)
The milling unit’s tool magazine contains a total of 12 tool positions for

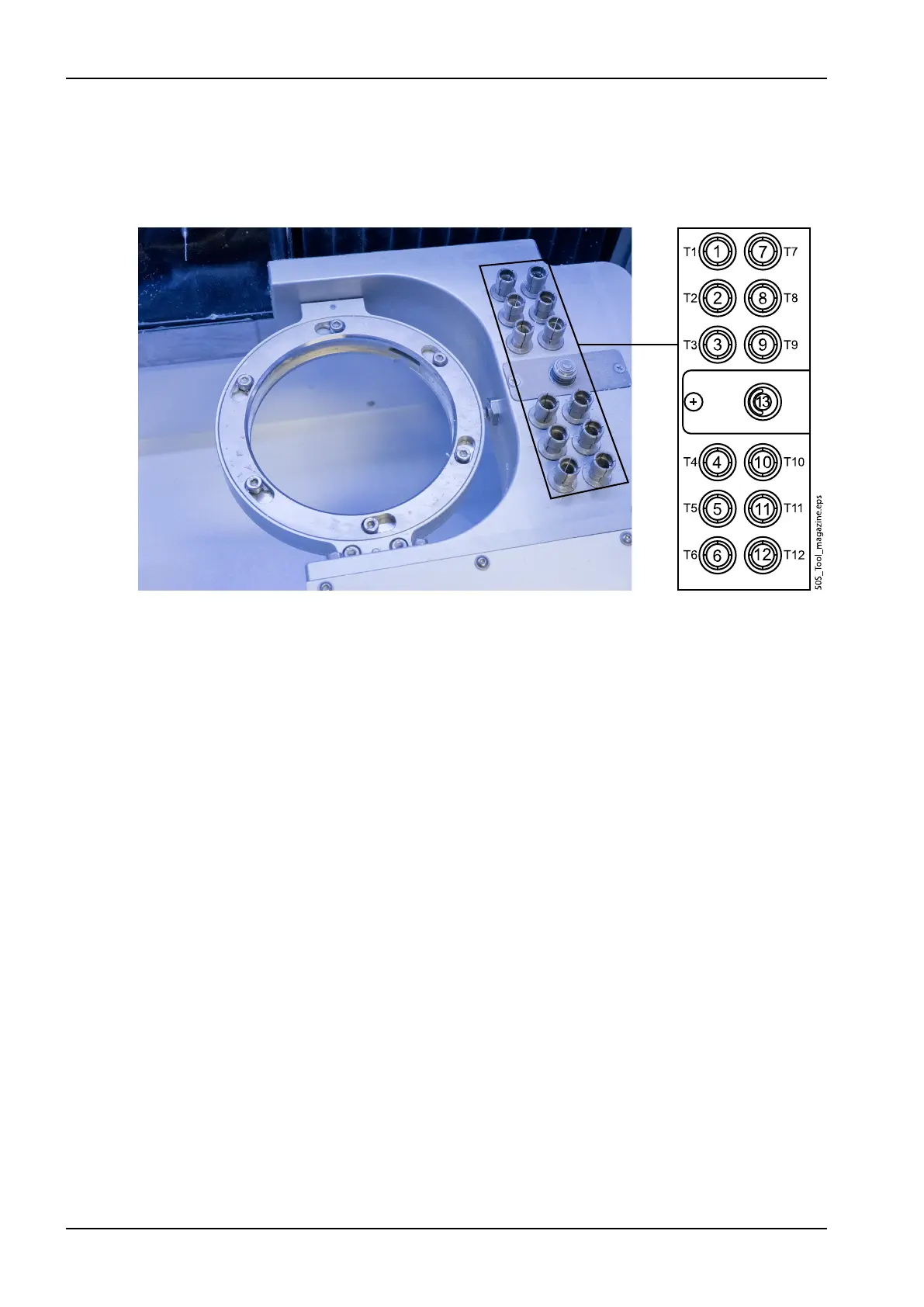

ready-ringed tools. The arrangement of the tool positions (1) to (12) is shown
in figure below. Between the tool positions is a length measuring probe (13),
which serves to measure the length of tool currently in use.
The appropriate tools for this milling unit can be found in section "Milling
tools" on page 21 and ordered from your local dealer.
6 Milling unit
28 Planmeca PlanMill 50 S User's manual
