6.6 Cooling liquid system
The cooling liquid system is only installed with milling units of type Planmeca
PlanMill 50 S and is optimally tailored to the milling unit in the factory. Only
use approved cooling liquid from Planmeca, because this is optimally
tailored to the requirements of the milling unit and guarantees a seamless
processing sequence.

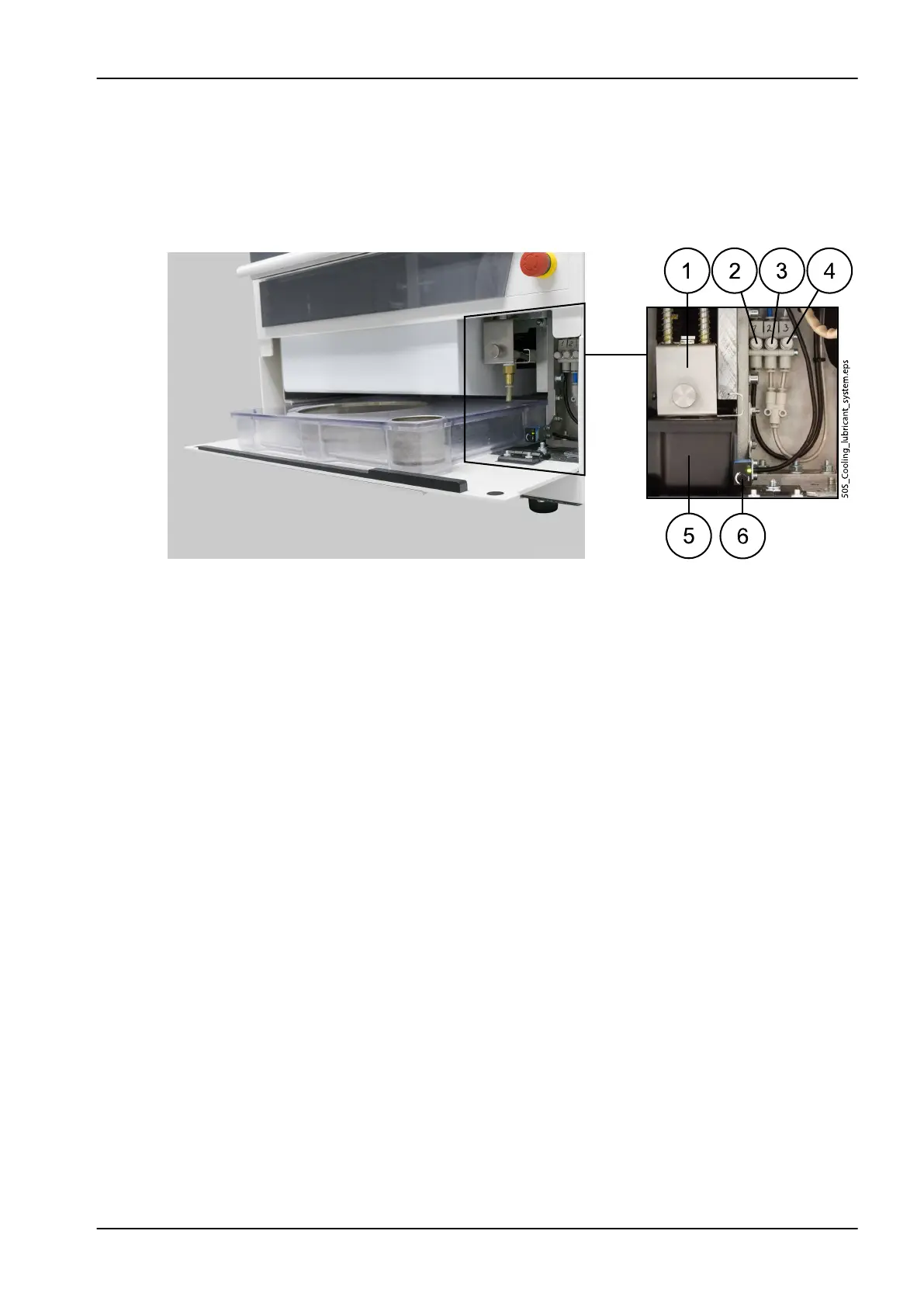

1. Extraction device (manually extending and retracting)
2. Throttle valve (spindle sealing air)
3. Throttle valve (air purge device)
4. Throttle valve (tool changer)
5. Coolant tank
6. Capacitive filling level sensor
6 Milling unit
User's manual Planmeca PlanMill 50 S 29
