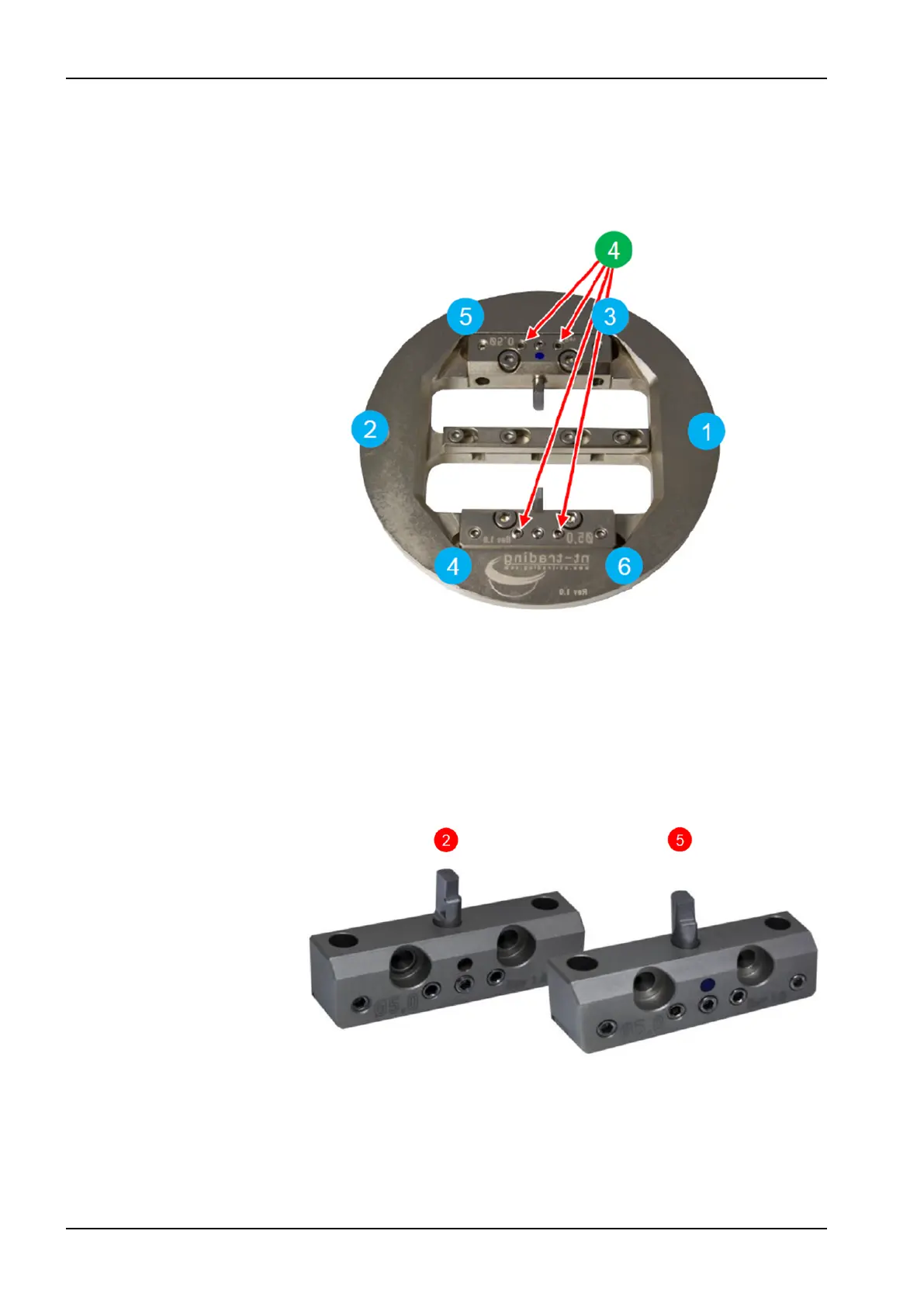

• The nt-trading adapter is then fixed into the clean milling unit reception.
NOTE
Always attach the screws loosely at first and then tighten in the same
order (1) - (6).
• The test pins are milled directly on the milling unit with the scripted test
program available from your local dealer. A 2 mm metal tool (T2) is
required for the milling process.
7.2.3.3 Measurement
• The two test pins are unscrewed from the adapter
• The test pins have to be clean and free of burrs for measuring
• width (X-axis) (1)
• length (Y-axis) (2)
• height (Z-axis) (3)
• width control measurement / only Pos 2 (4)
7 Adapters
42 Planmeca PlanMill 50 S User's manual
