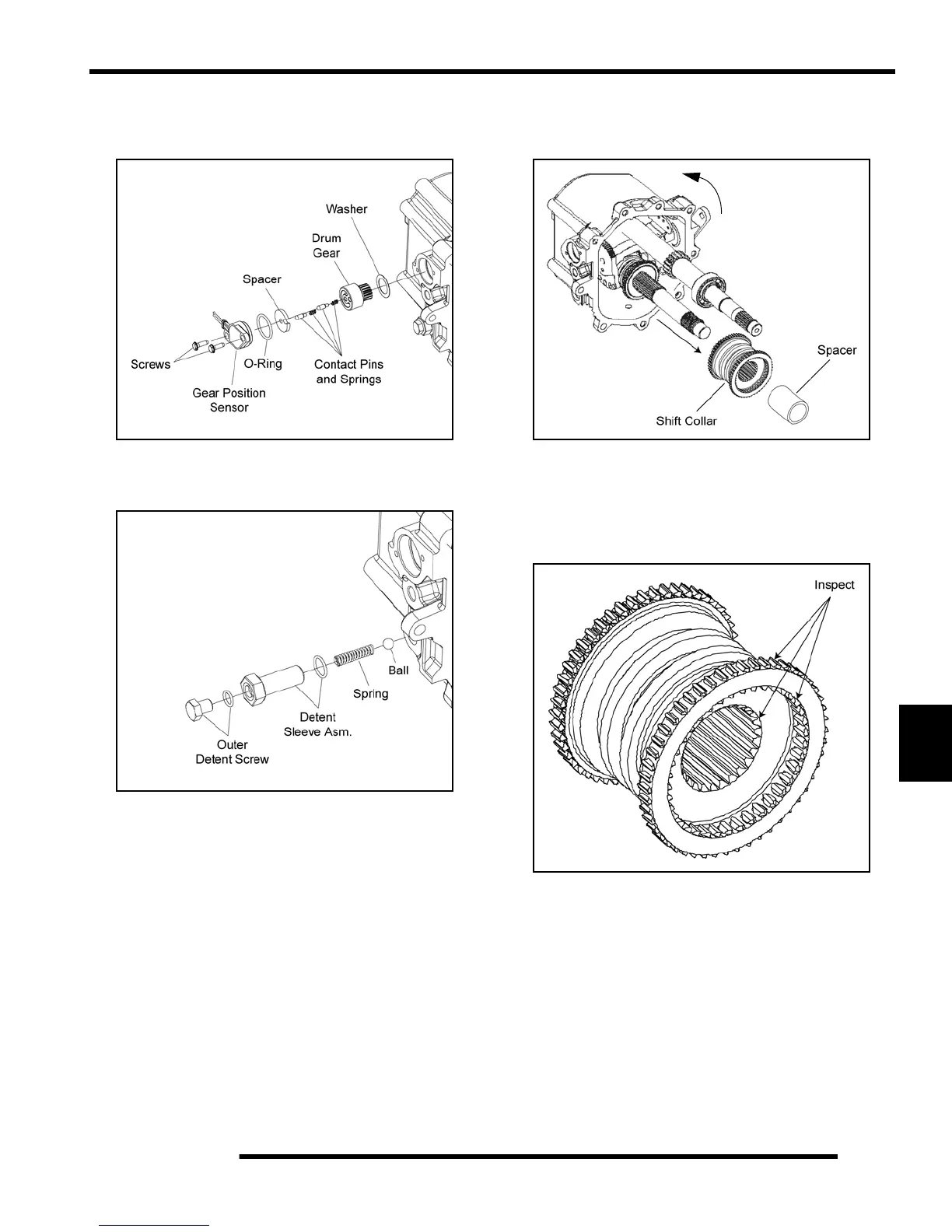

10. Remove the spacer, contact pins, springs, drum gear and
washer from the shift housing. Replace any worn or
damaged components.
11. Remove the inner shift detent screws, springs, and balls
from the shift housing.
NOTE: Never remove the outer shift detent screw
first. Removal of the outer screw will allow the detent
ball and spring to fall into the shift housing.
12. Remove the park/reverse spacer from the clutch shaft.
13. Pull back fully on gear selector arm to bring shift collar up
and disengage the shift collar from the clutch yoke. Lifting
on the clutch shaft may aid in shift collar removal.
14. Inspect the inner and outer gear teeth and splines on both
ends of the shift collar for excessive wear or damage.
NOTE: If servicing a Model Year 2010 RZR
transmission, proceed to step 15.
NOTE: If servicing a Model Year 2009 RZR
transmission, proceed to step 18.
MY09 Shift Collar and
Clutch Shaft Shown
Model Year
2009
To Next Page
