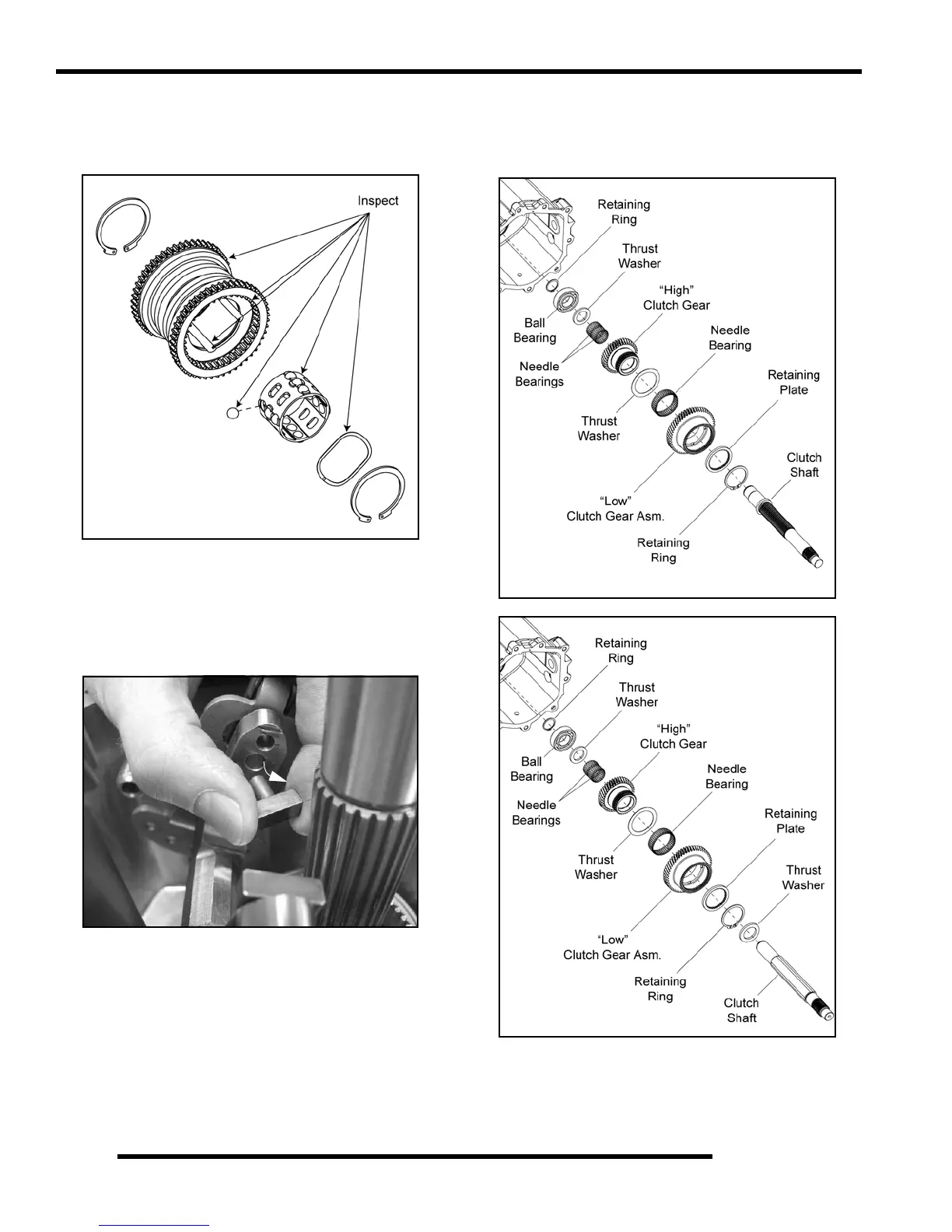

15. Remove the retaining rings from each end of the shift collar.
16. Remove the wave spring and ball bearing cage assembly
from the shift collar as shown.
17. Inspect the inner and outer gear teeth and ball bearing
channels on both ends of the shift collar for excessive wear
or damage.
18. Remove the sliding shoes from the clutch yoke.
19. Remove the clutch shaft assembly from the housing. The
forward gear assembly and bearings will remain on the
shaft upon removal.
20. Disassemble the clutch shaft as needed by removing both
retaining rings and separating the high and low gears from
the clutch shaft. Inspect all parts for wear or damage and
replace as required.
