8.13
TRANSMISSION
8
P
RELIMINARY
V
ERS
I
ON

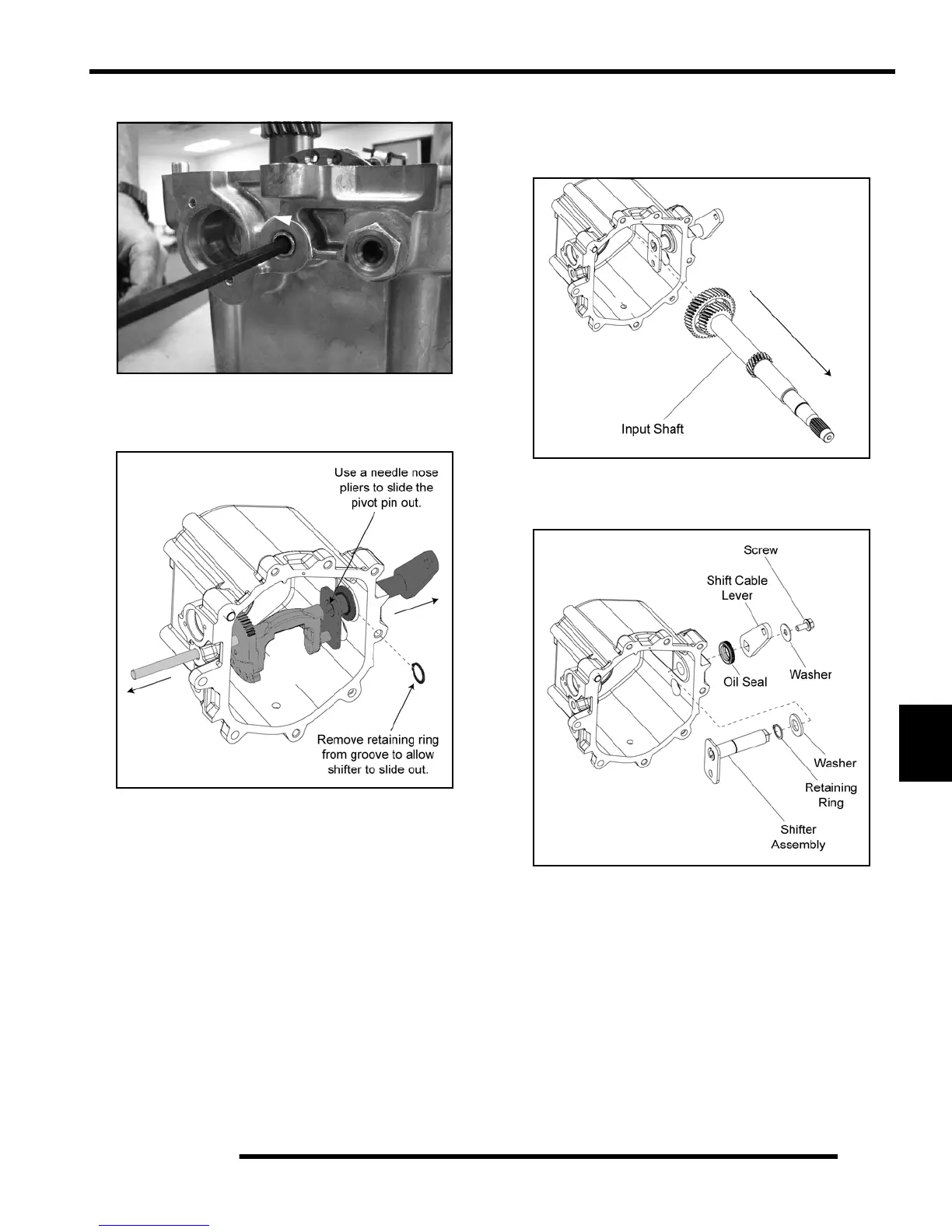

21. Remove the set screw retaining the pivot pin.
22. Locate the retaining ring on the shifter assembly and move
the retaining ring out of the groove to allow the shifter
assembly to slide out.
23. Use a needle nose pliers to grab the pivot pin and slide the
pin out of the case.
24. Remove the clutch yoke from the shifter assembly and out
from the transmission housing.
25. Remove the transmission input shaft from the housing.
Inspect the shaft bearing and replace if required using a
shop press. Inspect the gears for damage and/or wear.
Replace the shaft if required.
26. Remove the screw from the end of the shift cable lever and
remove the shifter assembly from the housing.
27. Inspect the shifter assembly shaft and housing for excessive
wear or damage. Replace components if needed.
28. Inspect and replace the case bearings if required.
NOTE: Do not pull bearings from case for
inspection, as the removal process damages the
bearing.
Pivot
Pin
Shifter
Assembly
Clutch
Yoke
To Next Page
