Polaris ACE 900 2018

5.22
9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.
DRIVEN CLUTCH SERVICE

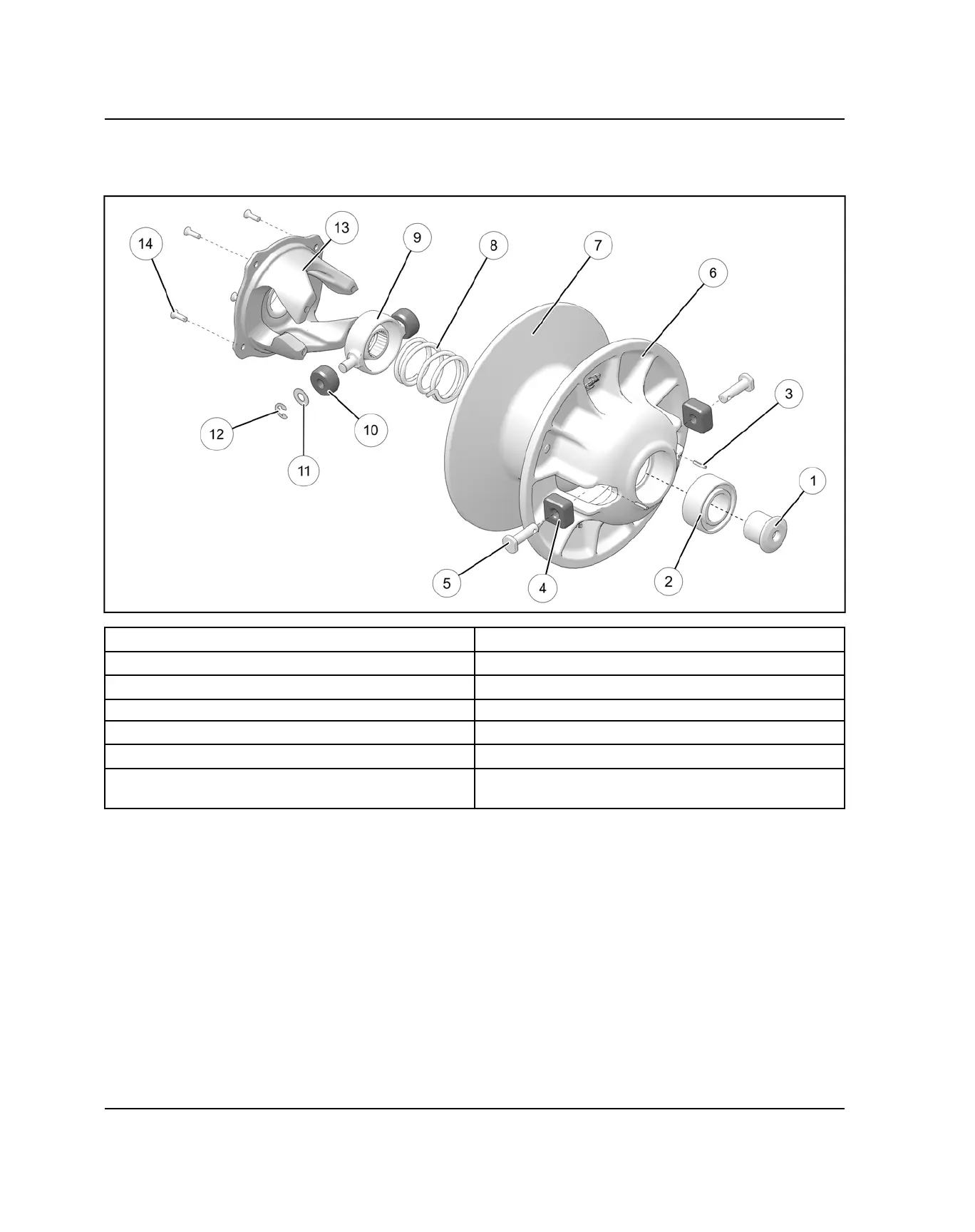

DRIVEN CLUTCH ASSEMBLY VIEW
q
Shoulder Sleeve
i
Spring
w
Bearing
o
Spider
e
Spring Pin
a
Roller
r
Slider
s
Washer
t
Slider Pin
d
E-clip
y
Stationary Sheave
f
Helix (Cam)
u
Moveable Sheave
g
Helix Screws
48 in-lb (5 Nm)
PVT SYSTEM
