9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.
3.15

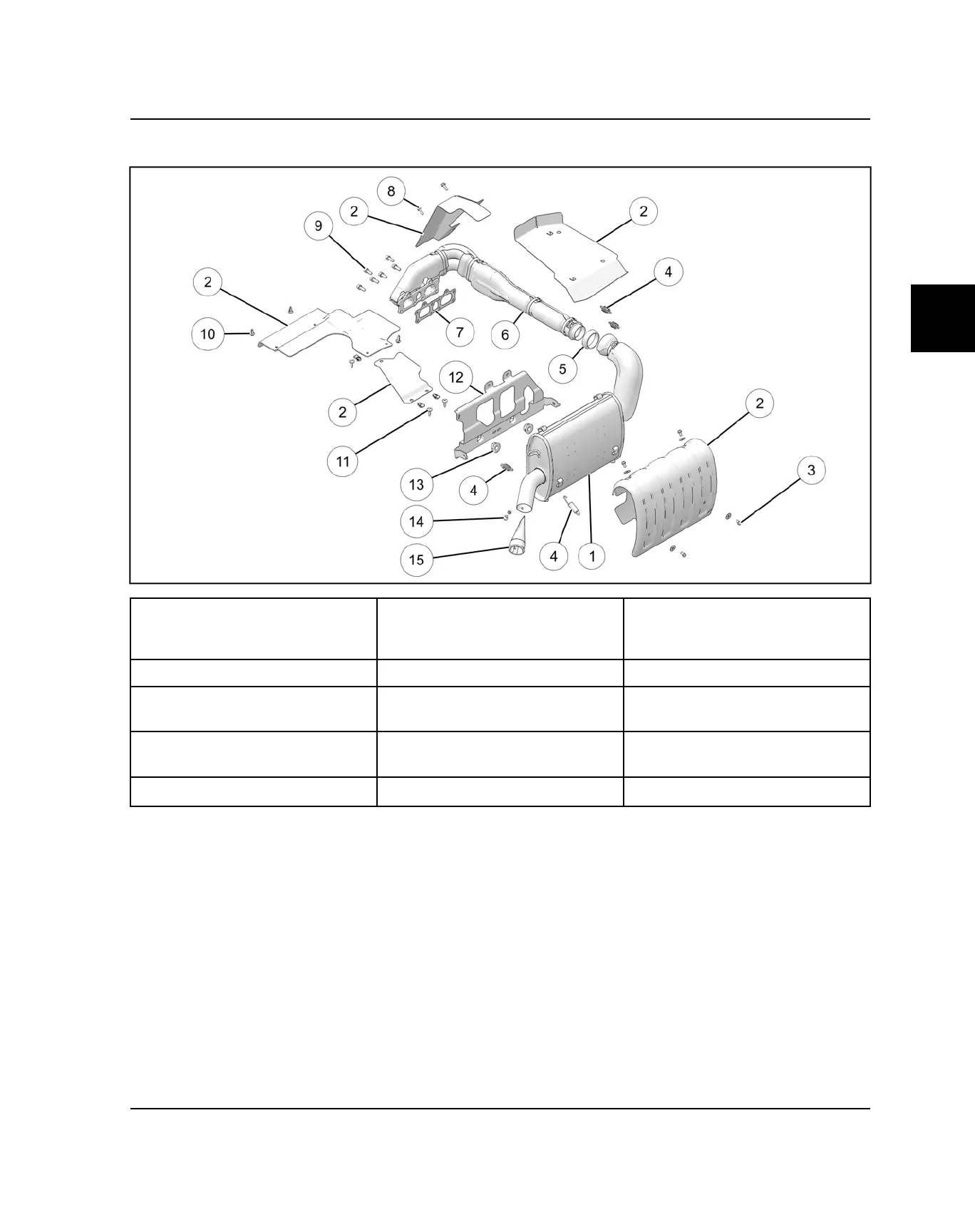

EXHAUST ASSEMBLY VIEW
q
Muffler
y
Exhaust Pipe
s
Access Panel Heat Shield
Fasteners
10 ft-lbs (14 Nm)
w
Heat Shield
u
Exhaust Gasket
d
Lower Exhaust Mount
e
Muffler Heat Shield Fasteners
10 ft-lbs (14 Nm)
i
Front BoxHeat Shield Fasteners
10 ft-lbs (14 Nm)
f
Muffler Rubber Mounts
r
Exhaust Springs
o
Head Pipe Fasteners
18 ft-lbs (24 Nm)
g
Spark Arrestor Fastener
8 ft-lbs (11 Nm)
t
Exhaust Seal
a
Push Rivets
h
Spark Arrestor
