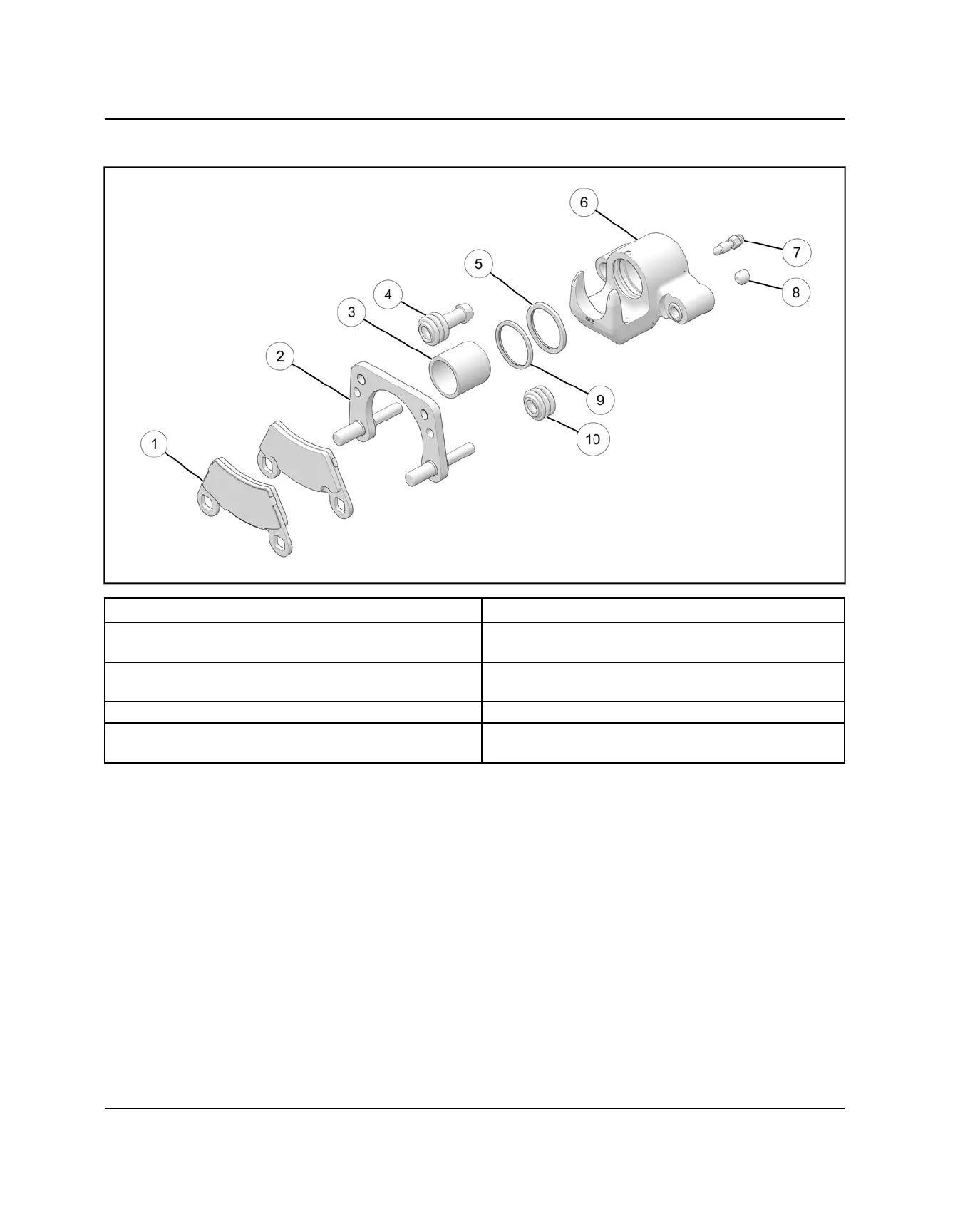

CALIPER EXPLODED VIEW
q
Brake Pads
y
Caliper Body
w
Caliper Mount
Apply Silicone Grease to Pins.
u
Bleeder Screw
44 in-lbs (5 Nm)
e
Piston
Apply DOT 4 Brake Fluid
i
Adjuster Screw
r
Pin/Boot
o
Seal Boot
t
Inner Seal- 1.25
Replace with new parts. Apply DOT 4 Brake Fluid.
a
Outer Seal- 1.25
Replace with new parts. Apply DOT 4 Brake Fluid.
