SHOCKS / SPRINGS

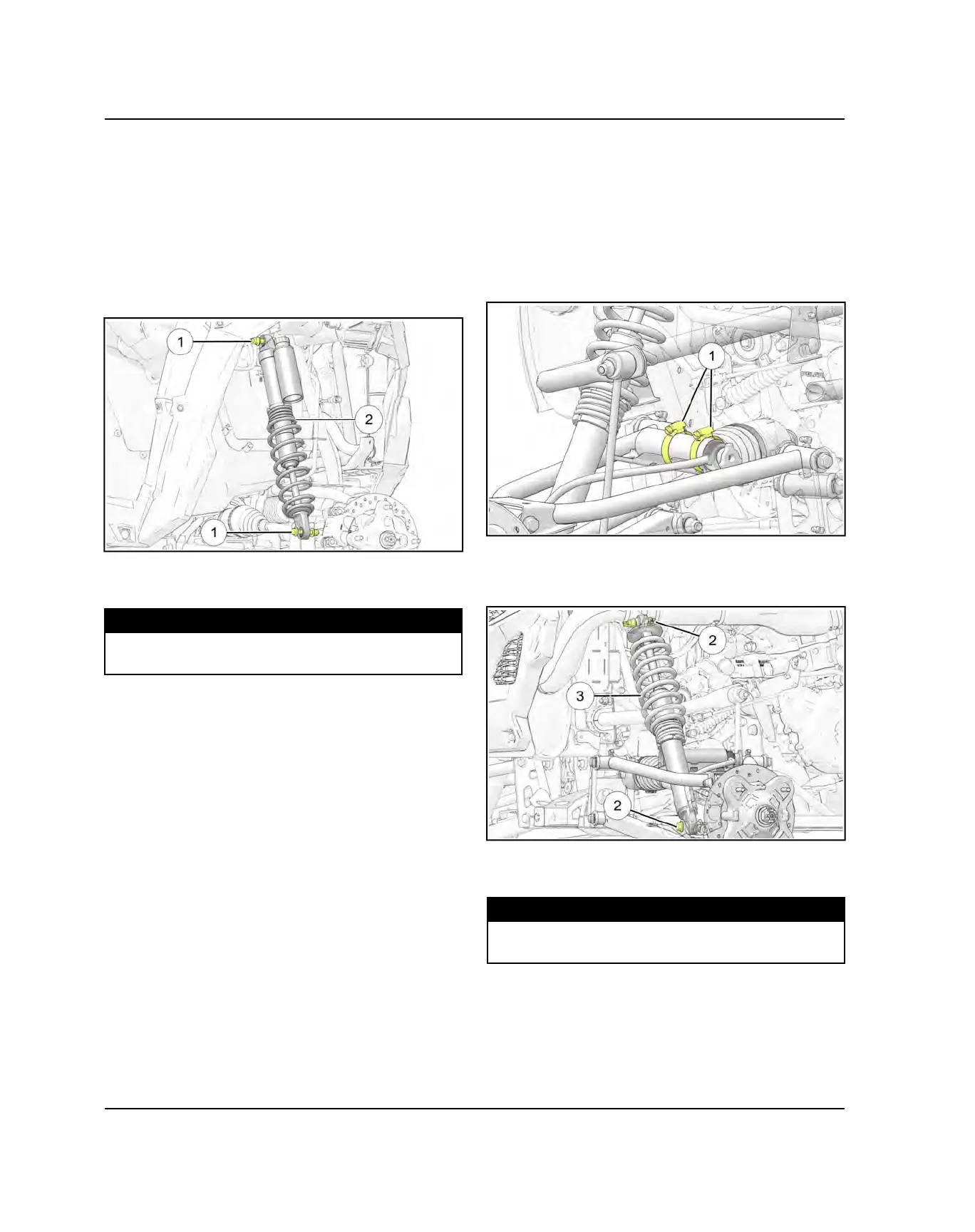

FRONT SHOCK REMOVAL / INSTALLATION
1. Elevate the vehicle off the ground to relieve the
suspension load.
2. Support under A-arm.
3. Remove the upper and lower fasteners
q
retaining
the shock and remove the shock
w
from the vehicle.
Discard nuts and replace with new upon installation.
4. Reverse the procedure to reinstall the shock. Torque
new fasteners to specification.
TORQUE
Shock Mounting Bolts:
42 ft-lbs (57 Nm)
REAR SHOCK REMOVAL / INSTALLATION
1. Elevate the vehicle off the ground to relieve the
suspension load.
2. Support under control arm.
3. Remove the hose clamps
q
retaining the shock
reservoir to the upper control arm.
4. Remove the upper and lower fasteners
w
retaining
the shock and remove the shock
e
from the vehicle.
Discard nuts and replace with new upon installation.
5. Reverse the procedure to reinstall the shock. Torque
new fasteners to specification.
TORQUE
Shock Mounting Bolts:
42 ft-lbs (57 Nm)
