TRANSMISSION SERVICE

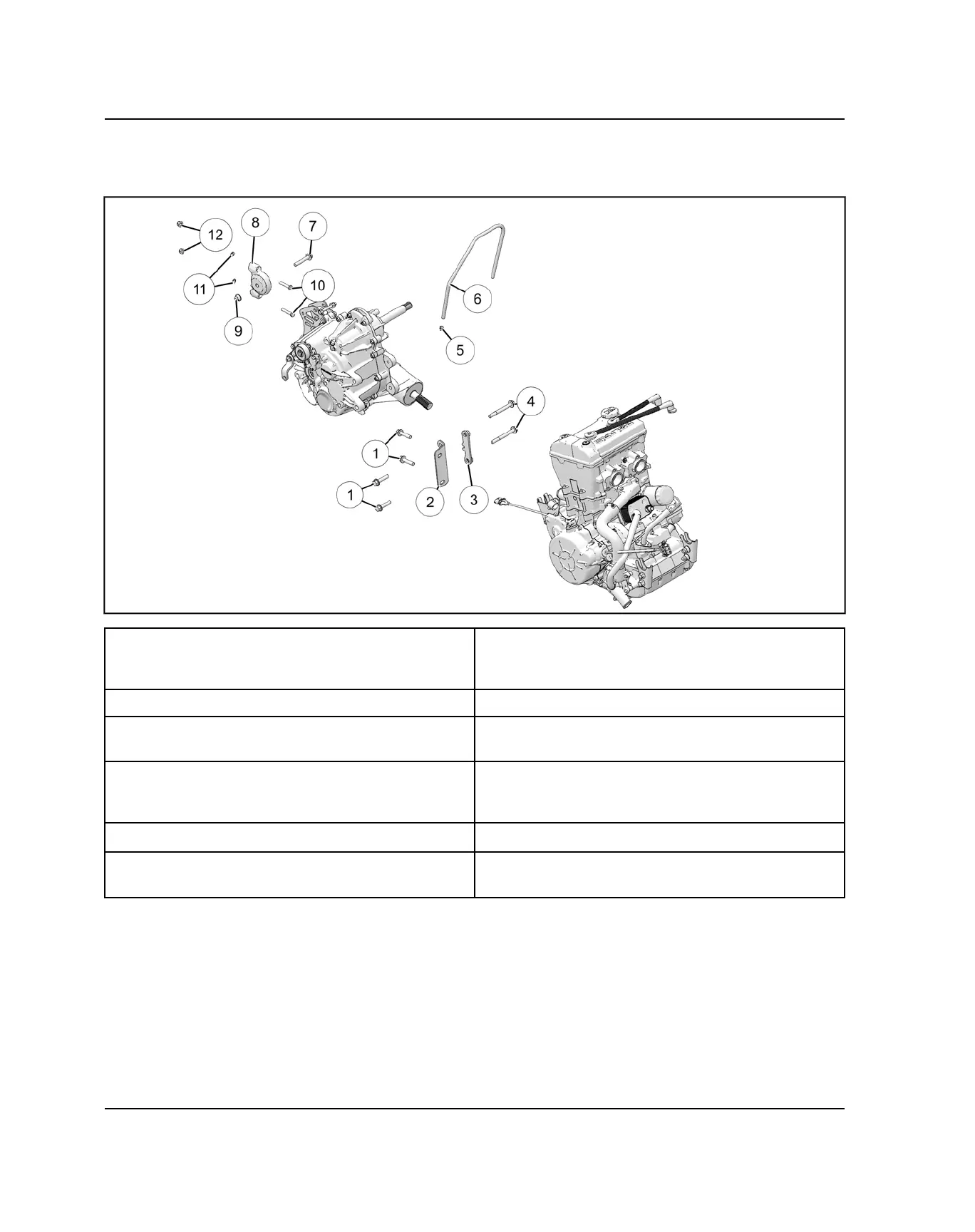

TRANSMISSION / TORQUE VALUES
q
Bolt – M10x1.25x45
Pre-Torque 5 ft-lbs (7 Nm)
45 ft-lbs (61 Nm)
u
Screws – M10x1.25x60
w
Outer Transmission Brackets
i
Isolator Mount
e
Inner Transmission Mount – Weld Nut Plate – Right
o
Flange Nuts – M10
40 ft-lbs (54 Nm) Replace with new when removed.
r
Transmission Mount Screws– M10x1.25x95 – Left
Pre-Torque 5 ft-lbs (7 Nm)
45 ft-lbs (61 Nm)
a
Screws – M8x1.25x45
t
Hose Clamp
s
Pal Nuts
y
Transmission Vent
d
Flange Nuts – M8
22 ft-lbs (30 Nm) Replace with new when removed.
TRANSMISSION
