3.16
9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.

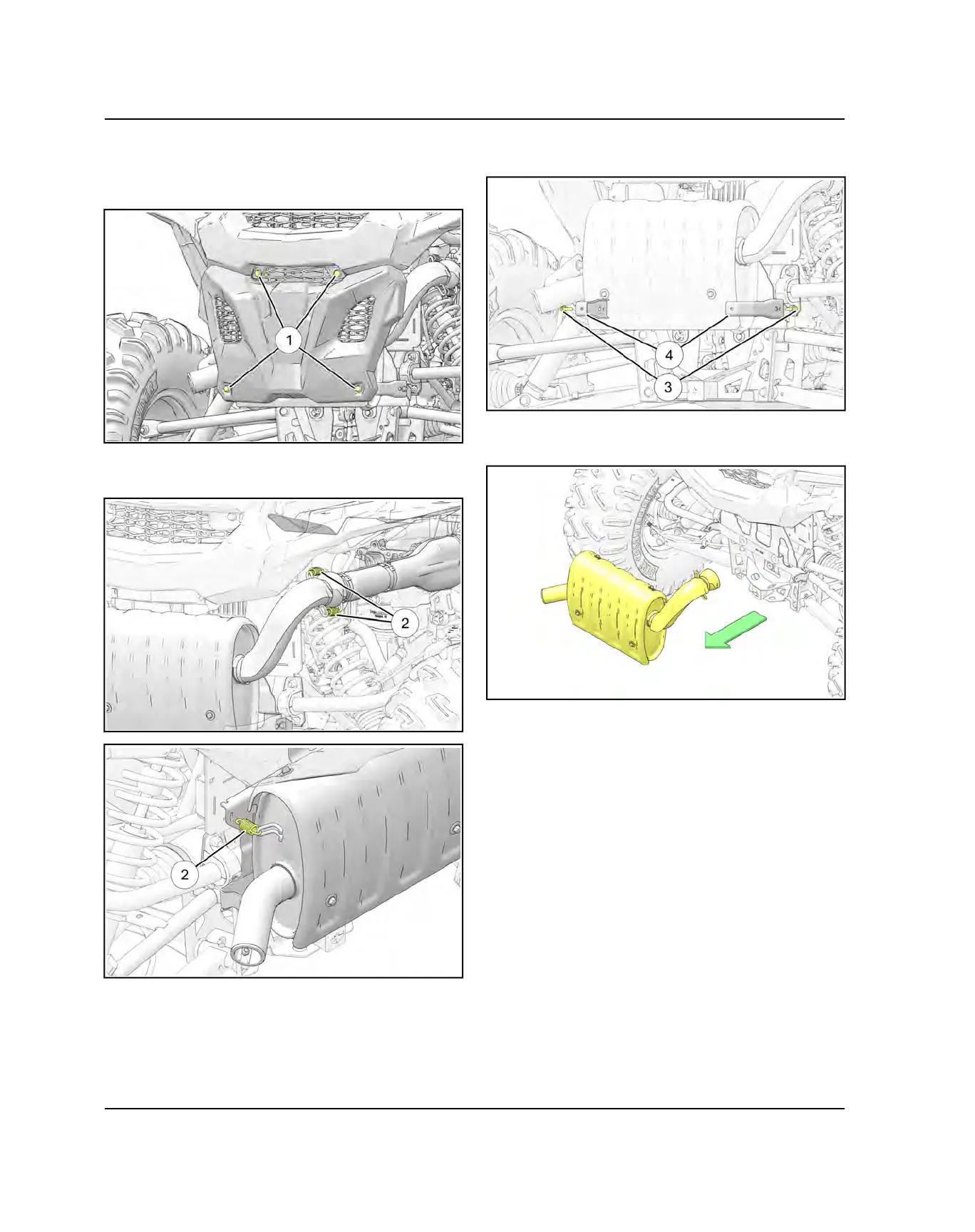

MUFFLER REMOVAL
1. Remove the four fasteners
q
retaining the lower
bumper.
2. Remove the three springs
w
retaining the muffler to
the exhaust pipe and muffler bracket.
3. Remove the fasteners
e
securing the lower bumper
brackets
r
and remove them from the vehicle.
4. Pull muffler towards the rear of the vehicle to remove
it from the mounting grommets.
ENGINE / COOLING SYSTEM
