FRONT SUSPENSION

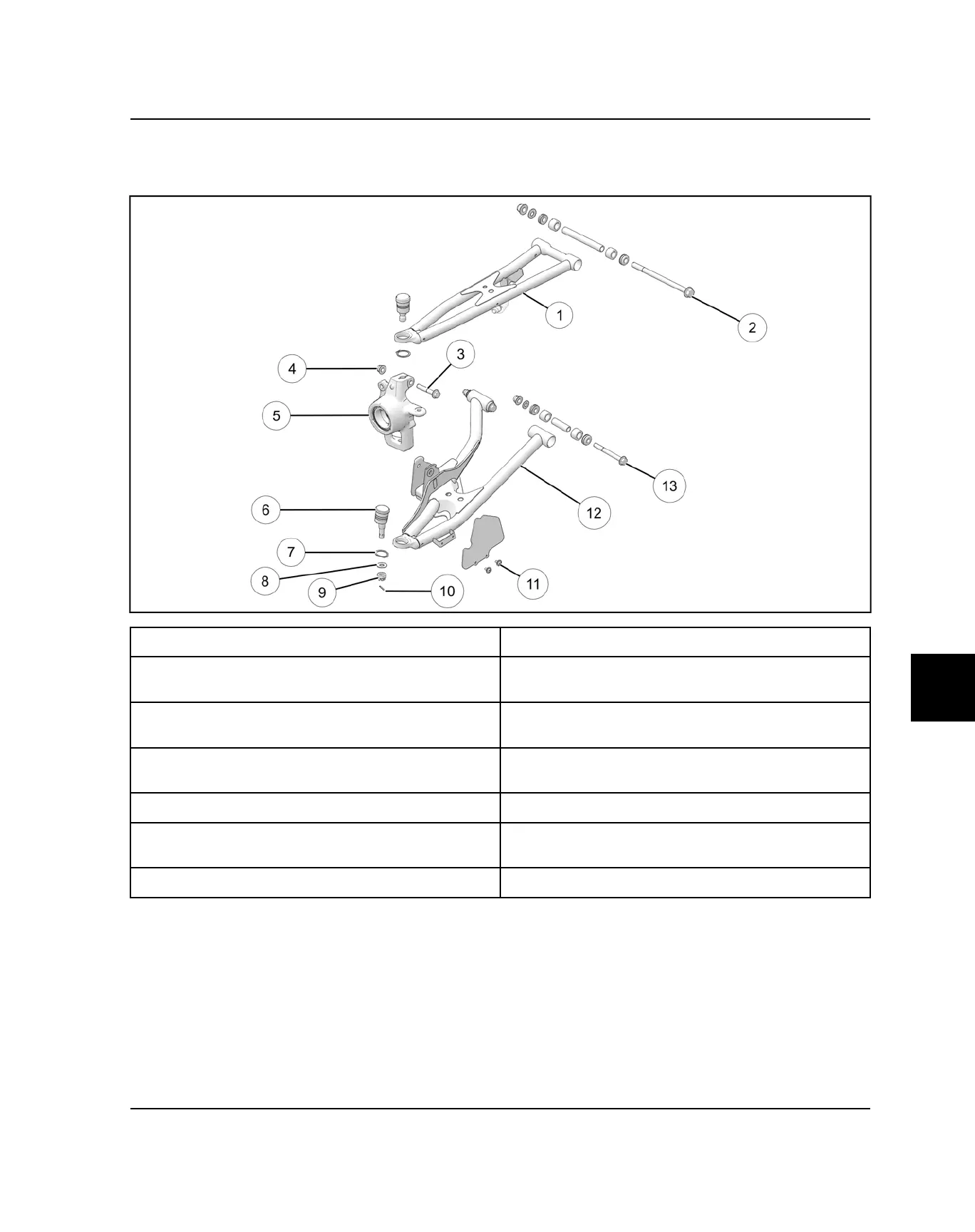

FRONT SUSPENSION ASSEMBLY VIEW
q
Upper A-Arm
i
Washer
w
Upper A-Arm Fastener
73 ft-lbs (99 Nm)
o
Lower Ball Joint Fastener
45 ft-lbs (61 Nm)
e
Upper Ball Joint Pinch Fastener
42 ft-lbs (57 Nm)
a
Cotter Pin
r
Nut
s
CV Guard Screws
Torque Till Seated
t
Bearing Carrier
d
Lower A-Arm
y
Ball Joint
f
Lower A-Arm Fasteners
42 ft-lbs (57 Nm)
u
Retaining Ring
