Polaris ACE 900 2018

10.16
9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.

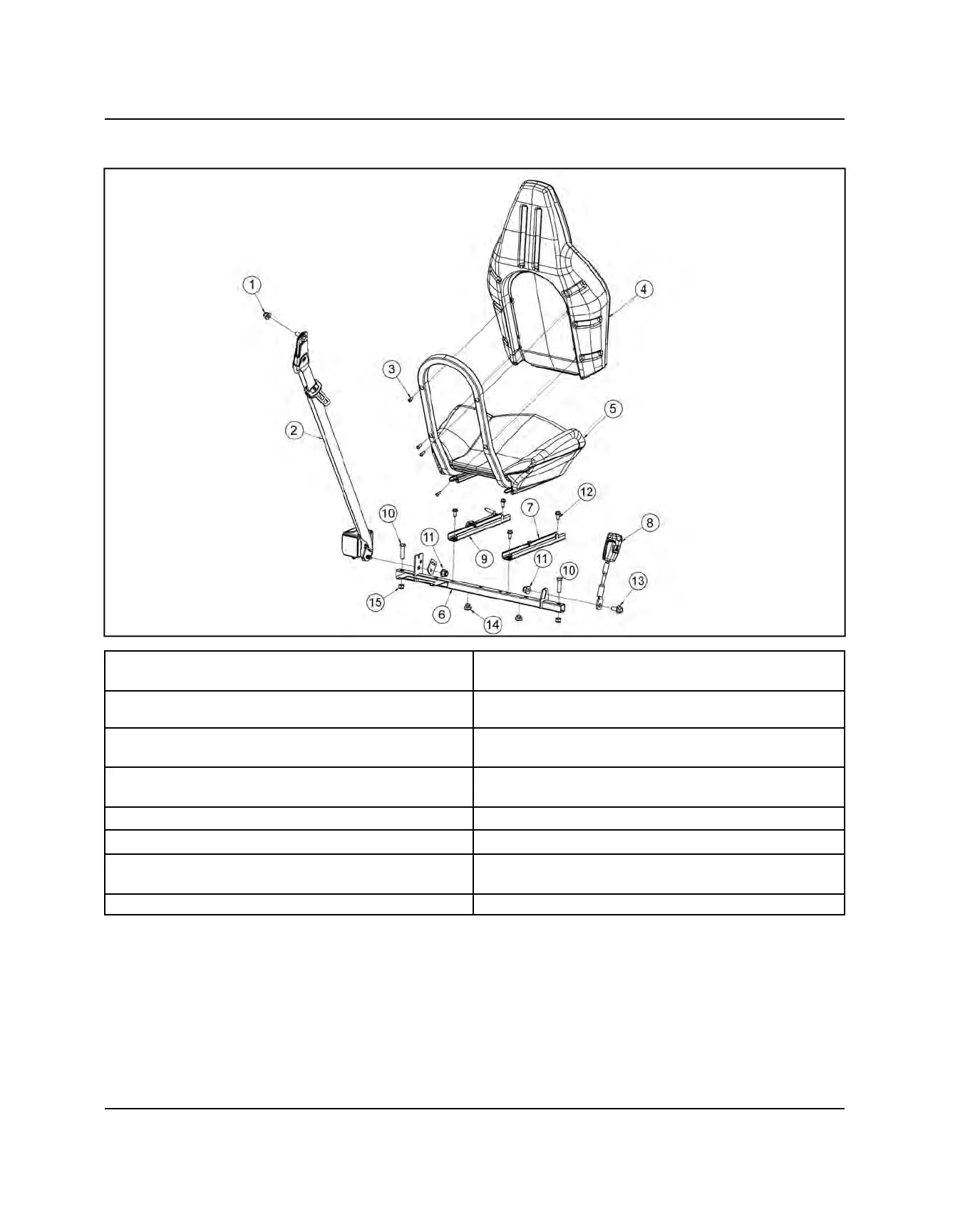

SEAT / SEAT BELT ASSEMBLY VIEW
q
Lock Nut, M12
42 ft-lbs (57 Nm) Replace with new when removed.
o
Seat Slider
w
Seat Belt Assembly
Not serviceable.
a
Screws, 7/16–14x1.75
e
Screws, 1/4–20x3/4
27 in–lbs (3 Nm)
s
Lock Nuts, M12
42 ft-lbs (57 Nm) Replace with new when removed.
r
Seat Back
d
Bolts, M8x1.25x20
11 ft-lbs (15 Nm)
t
Seat
f
Screws, M12x1.75x25
y
Rear Seat Base
g
Rubber Bumpers
u
Seat Slider Channel
h
Lock Nuts
30 ft-lbs (41 Nm)
i
Seat Belt Buckle
BODY / FRAME
