ECU PINOUTS
NOTICE
Last two digits of pin number equals cavity number. I.E. 210 = pin 10.

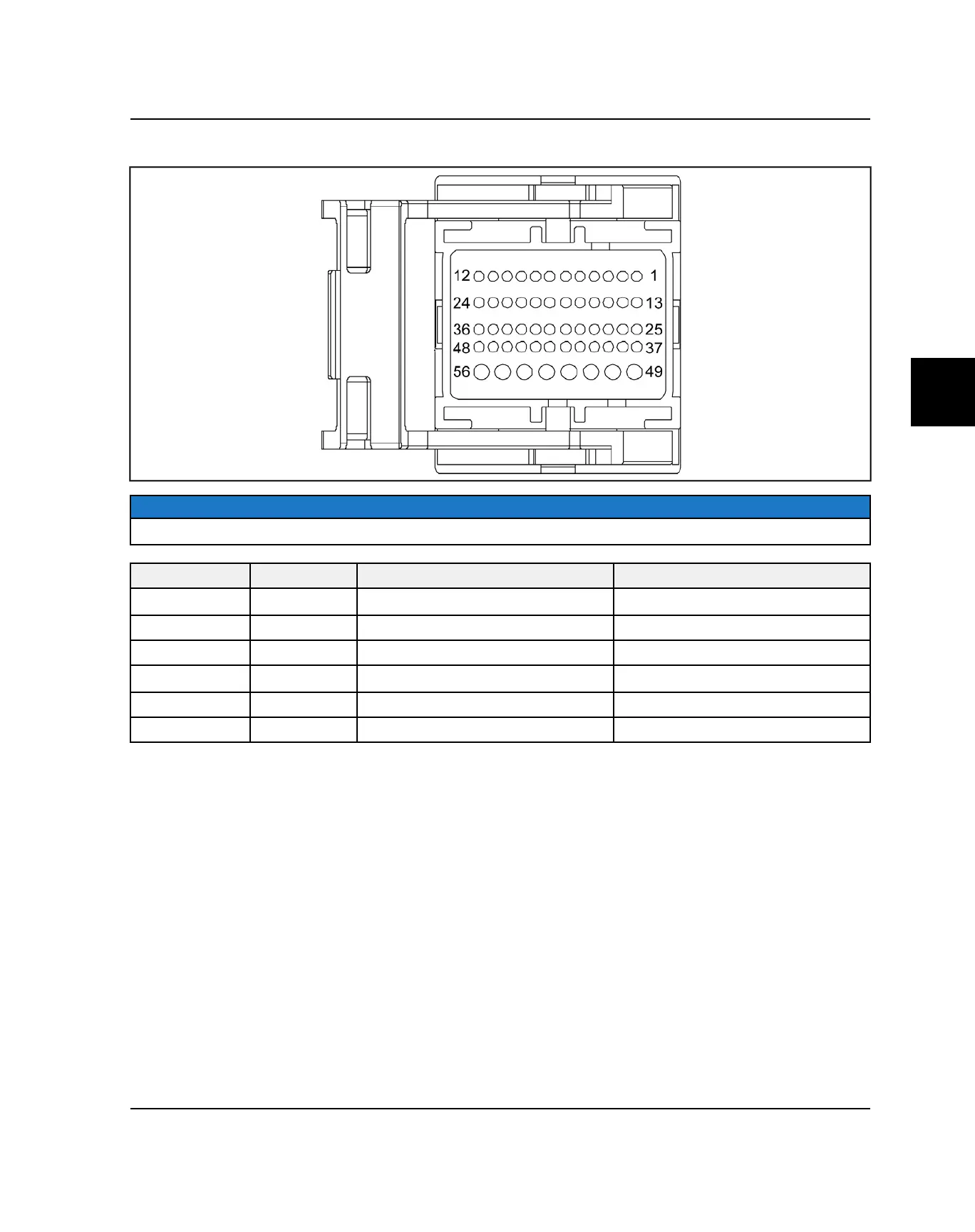

ECU PLUG
PIN
WIRE COLOR DESCRIPTION
ECM 1 16 Orange Key Switch Battery Voltage
ECM 1
53 Brown
ECM 1Ground
ECM 1
54 Brown
ECM 1Ground
ECM 1
55
Red / DK. Blue Constant Battery Voltage
ECM 2
47 Brown
ECM 2 Ground
ECM 2
50 Brown
ECM 2 Ground
