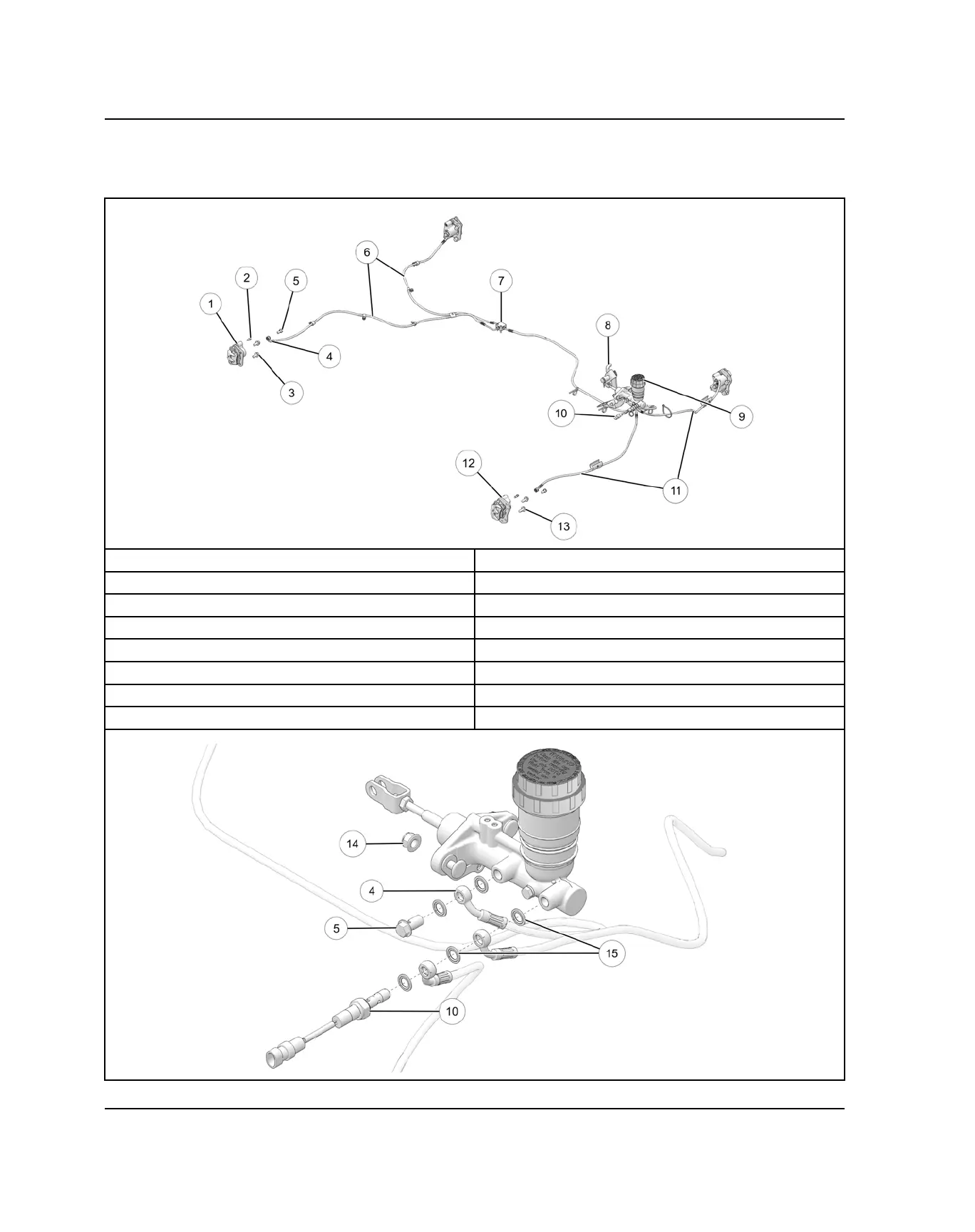

BRAKE SYSTEM OVERVIEW
BRAKE SYSTEM VIEW
q
Rear Brake Caliper
o
Master Cylinder
w
Brake Bleeder Screw 44 in-lbs (5 Nm)
a
Brake Pressure Switch 180 in-lbs (20 Nm)
e
Rear Caliper Bolts 40 ft-lbs (54 Nm)
s
Front Brake Lines
r
Banjo Fitting
d
Front Brake Caliper
t
Banjo Bolt 180 in-lbs (20 Nm)
f
Front Caliper Bolts 30 ft-lbs (54 Nm)
y
Rear Brake Lines
g
Master Cylinder Mounting Fasteners 23 ft-lbs (31 Nm)
u
Brake Junction Block 35 in-lbs (4 Nm)
h
Sealing Washer
i
Brake Pedal Assembly
BRAKE SYSTEM
