BRAKE PEDAL

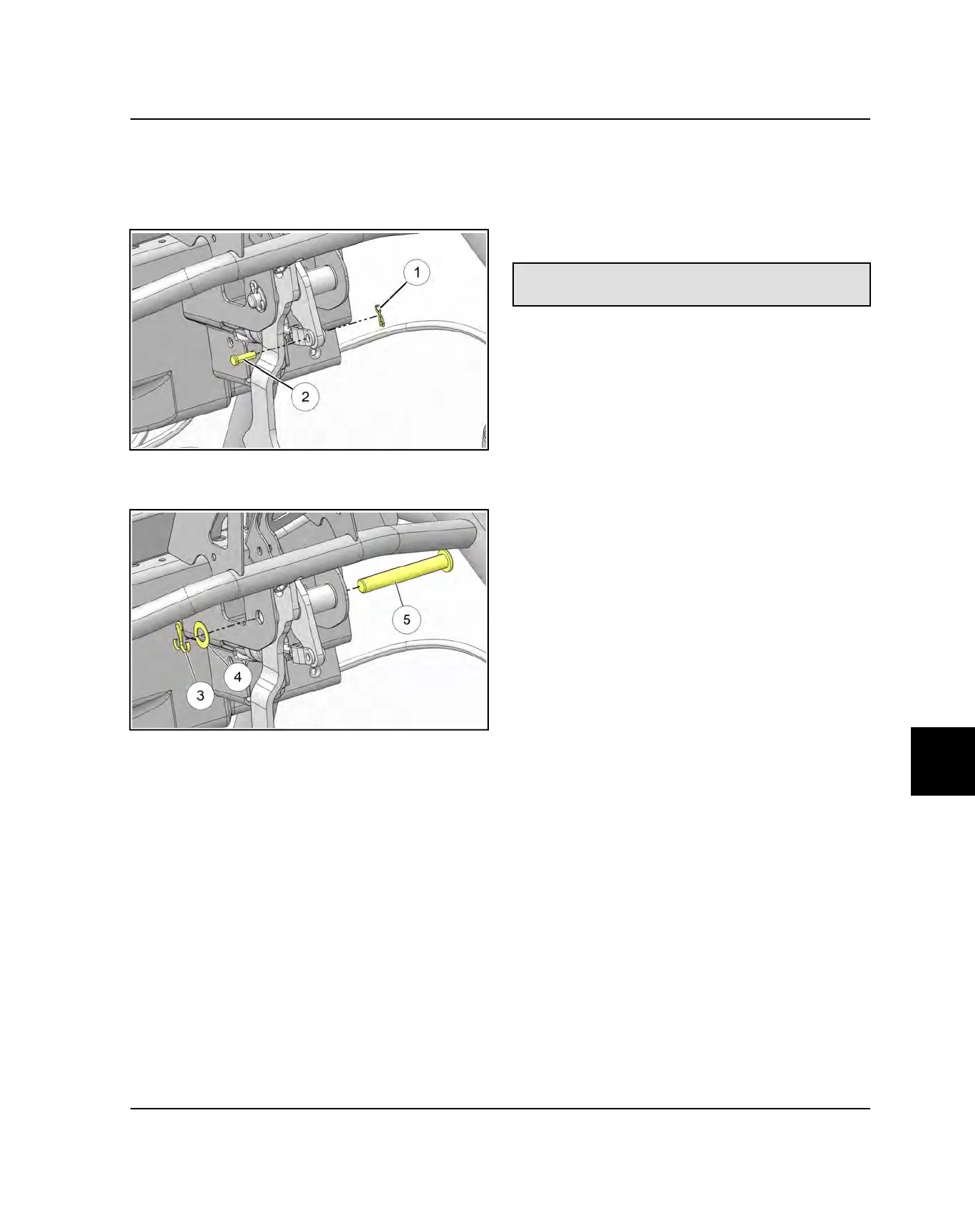

PEDAL REMOVAL
1. Locate the brake pedal lever and remove the master
cylinder clip
q
and clevis pin
w
.
2. Remove the cotter pin
e
, washer
r
, and pin
t
from
the pedal mount. Remove the brake pedal lever from
the vehicle.
3. Discard cotter pin. Always use a new cotter pin
during reassembly.
PEDAL INSTALLATION
1. Reverse the “Removal” steps to install brake pedal
lever. Always use a new cotter pin when installing the
brake pedal pin. Compare brake pedal freeplay to
specification.
Brake Pedal Freeplay:
.090” (2.28 mm)
