2.30
9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.

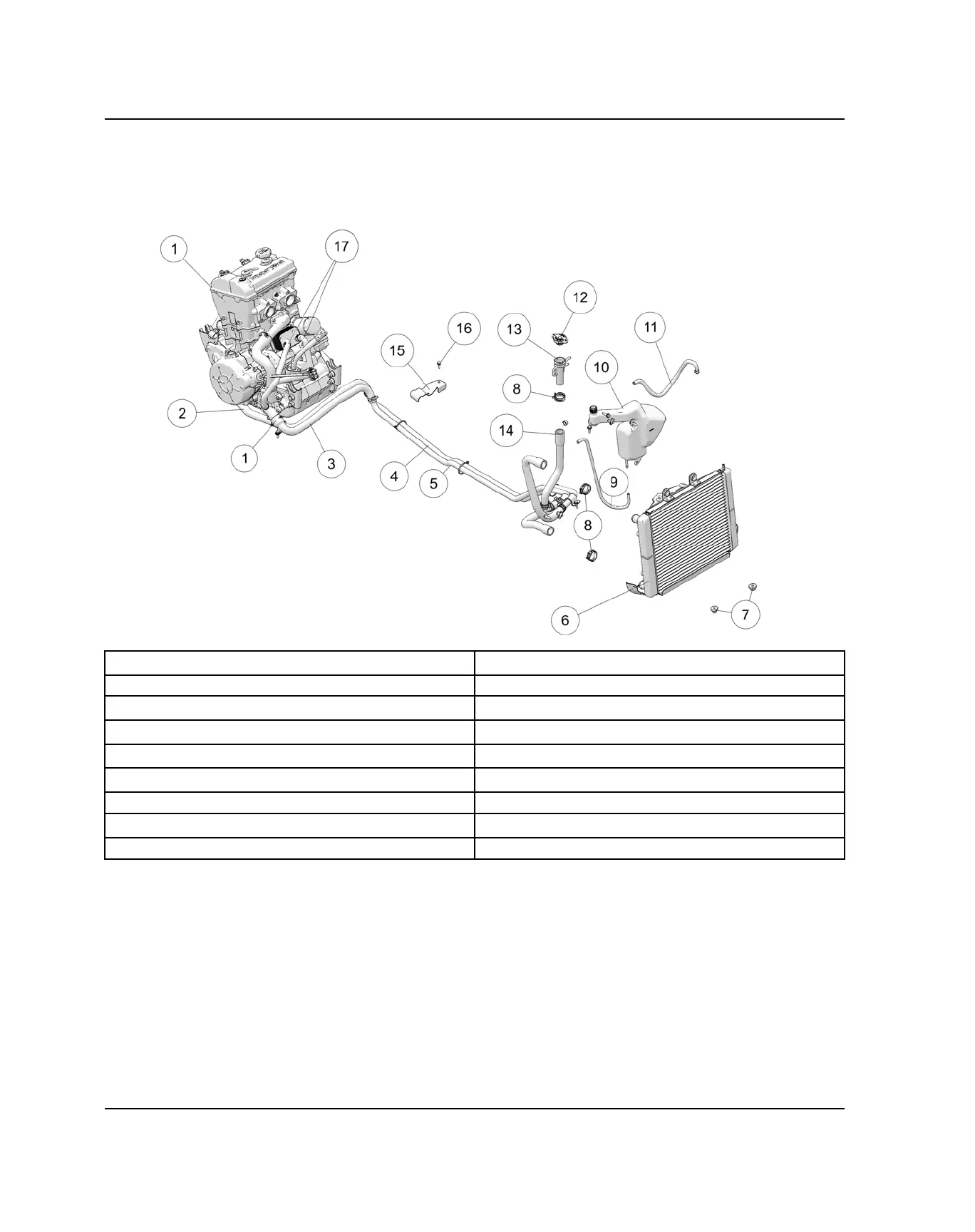

COOLING SYSTEM HOSES
1. Inspect all vehicle hoses for cracks, deterioration, abrasion or leaks. Replace if necessary.
2. Check the tightness and condition of all hose spring clamps. Replace if necessary.
q
Gear Clamps
a
Surge Tank (Recovery Bottle)
w
HOSE — FLOW TO RADIATOR
s
Bleed Hose
e
Hose — FLOW TO ENGINE
d
Pressure Cap (13 psi)
r
Coolant Pipe – FLOW TO RADIATOR
f
Filler Neck
t
Coolant Pipe – FLOW TO ENGINE
g
Filler Neck Hose
y
Radiator / Fan Assembly
h
Cooling Pipe Bracket
u
Grommets
j
Screw
i
Spring Clamp
k
Oil Cooler Hoses
o
Hose
MAINTENANCE
