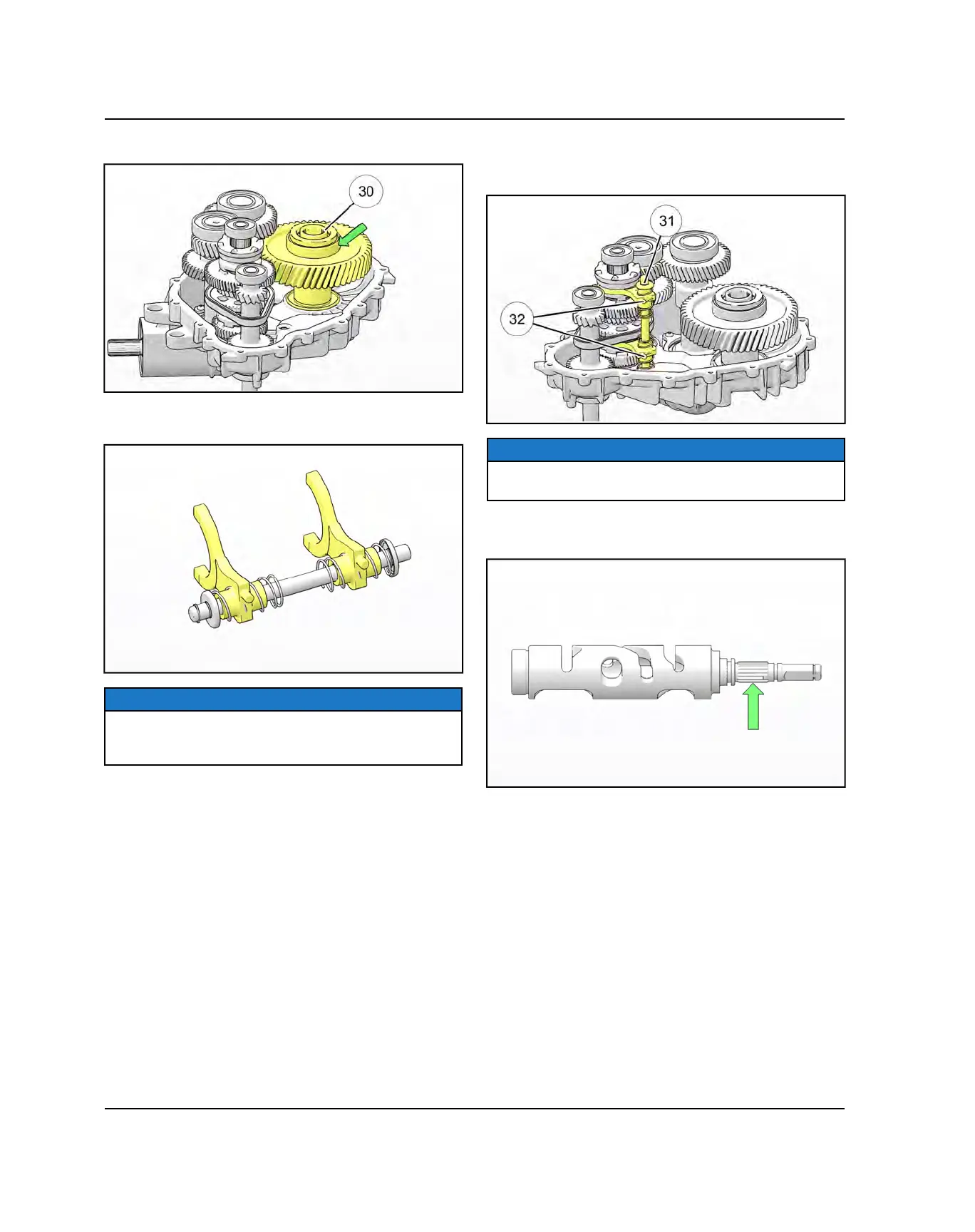

18.Install the rear output shaft assembly
3)
.
19.Assemble the shift shaft rail if previously
disassembled.
NOTICE
Both shift forks need to be orientated the same way, so
that the shift fork pins are both offset to the same side
of the rail.
20.Install the shift shaft rail
3!
and shift forks into the
transmission housing as an assembly. Be sure the
shift forks are engaged into the engagement dogs.
NOTICE
Shift fork pins should be offset towards the input shaft
as shown above
3@
.
21.Inspect the shift drum for any damage or wear.
Inspect the splines of the shift drum.
