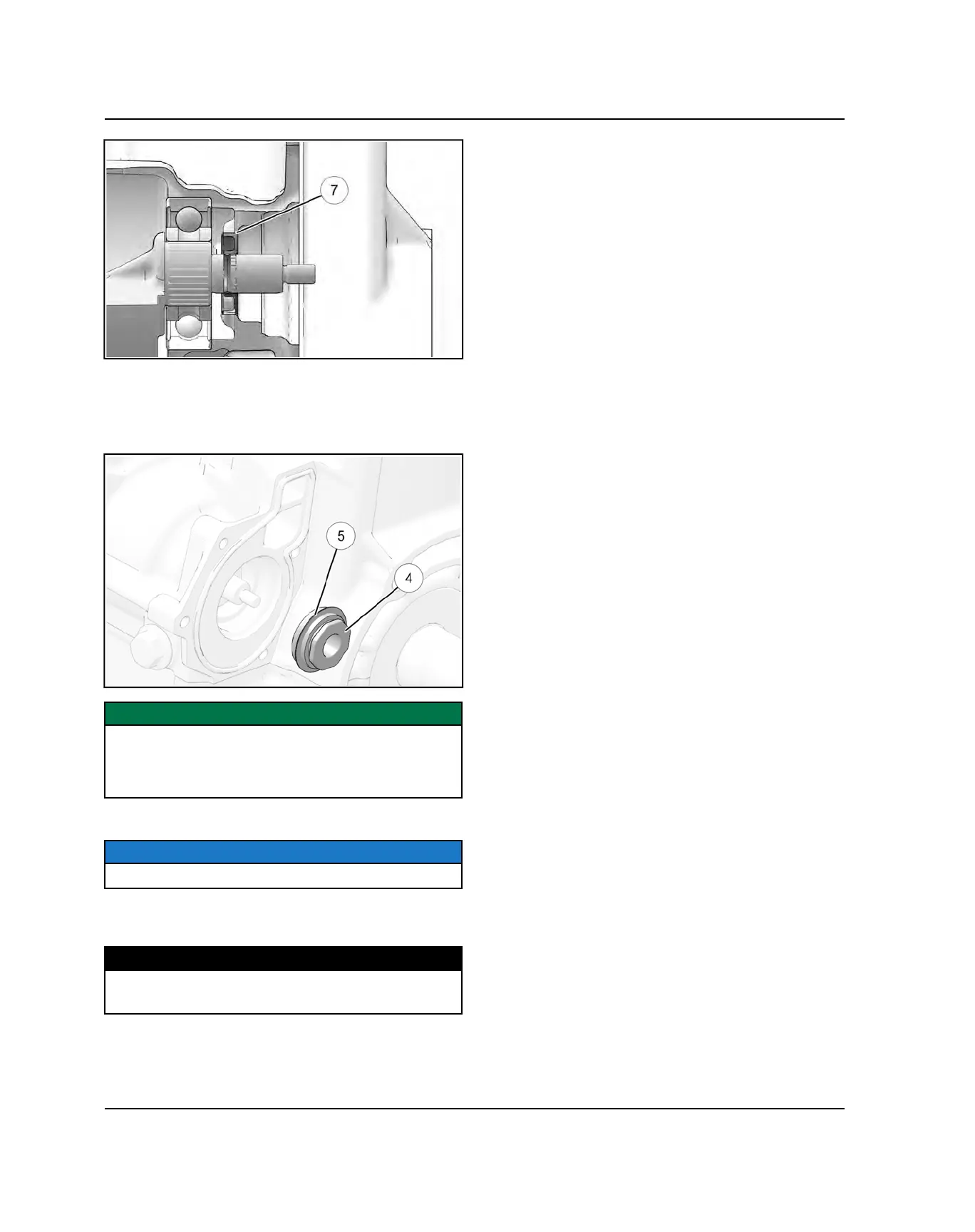

Installation
1. Using the seal driver included with special tool PU-
50869, install new Water Pump Seal
r
&
t
into the
engine case.
IMPORTANT
The mechanical seal driver included with special tool
PU-50869 is designed to compress the seal to a
specific height required for proper operation. Do not use
any other type of seal driver to install mechanical seal.
2. Install Water Pump Impeller
e
to hand tightness.
NOTE
The Impeller has left hand threads.
3. Install Water Pump Cover
w
and four screws
q
.
Torque screws to specification.
TORQUE
Water Pump Cover Screw:
7 ft-lbs (10 Nm)
