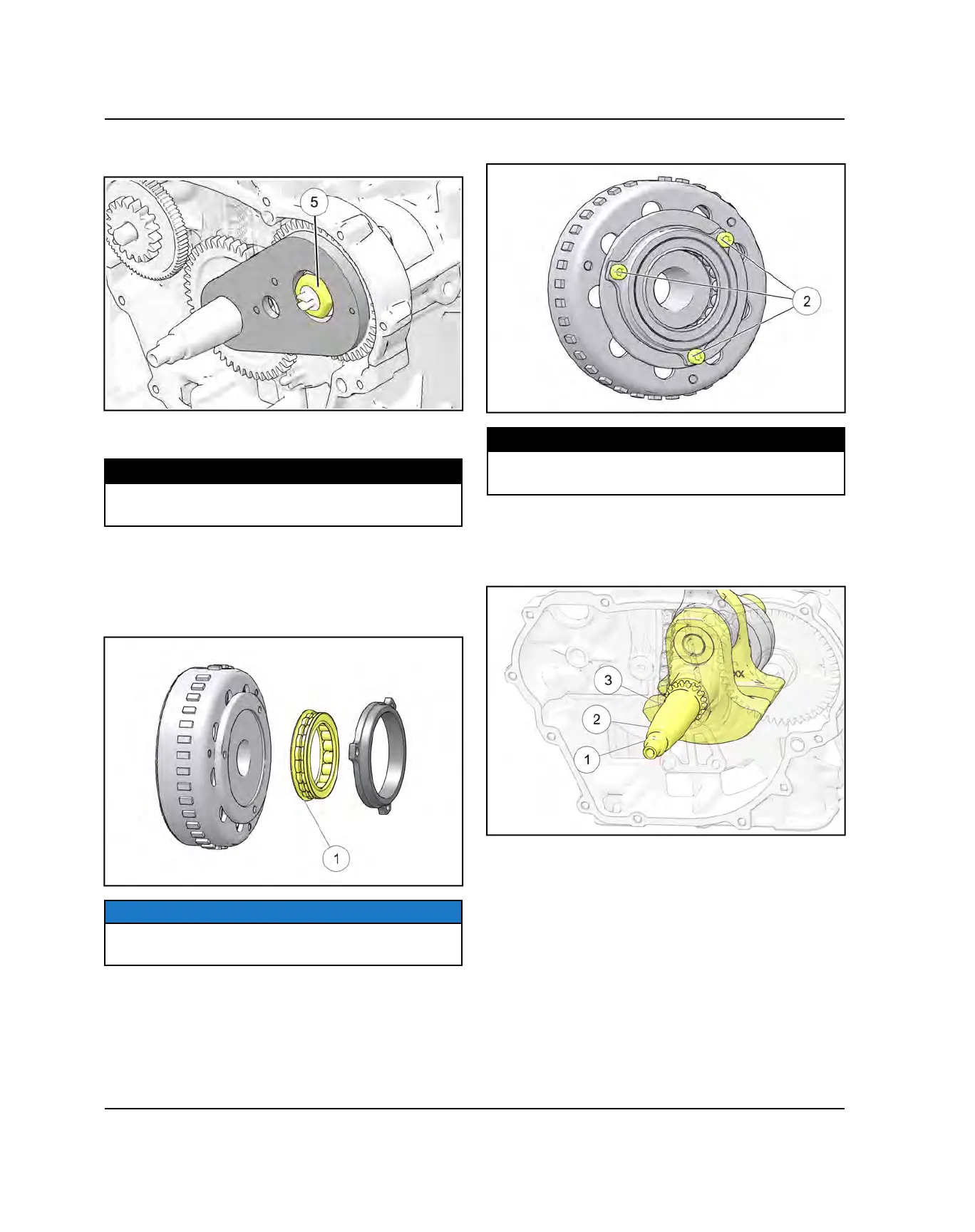

5. Install Crank-Balance Shaft Holder PA-51424
t
onto
the balance shaft and crankshaft.
6. Install washer
r
, nut
t
and torque balance shaft
nut to specifications.
TORQUE
Balance Shaft Nut:
132 ft-lbs (180 Nm)
STARTER ONE-WAY CLUTCH
INSTALLATION
1. Install one-way clutch in clutch hub with flange of
clutch
q
facing the flywheel.
NOTE
The one-way clutch can be installed into the hub
incorrectly. This will cause engine cranking issues.
2. Clean screw threads in flywheel to remove all oil or
grease.
3. Apply Loctite® 272™ on the one way clutch retaining
bolts threads
w
. Place hub on flywheel and install
bolts.
4. Torque screws to specification.
TORQUE
One Way Clutch Retaining Bolts:
9 ft-lbs (12 Nm)Apply Loctite® 272™
FLYWHEEL INSTALLATION
1. Clean the threads
q
, taper
w
and flat
e
of
crankshaft to remove all oil or grease.
ENGINE / COOLING SYSTEM
