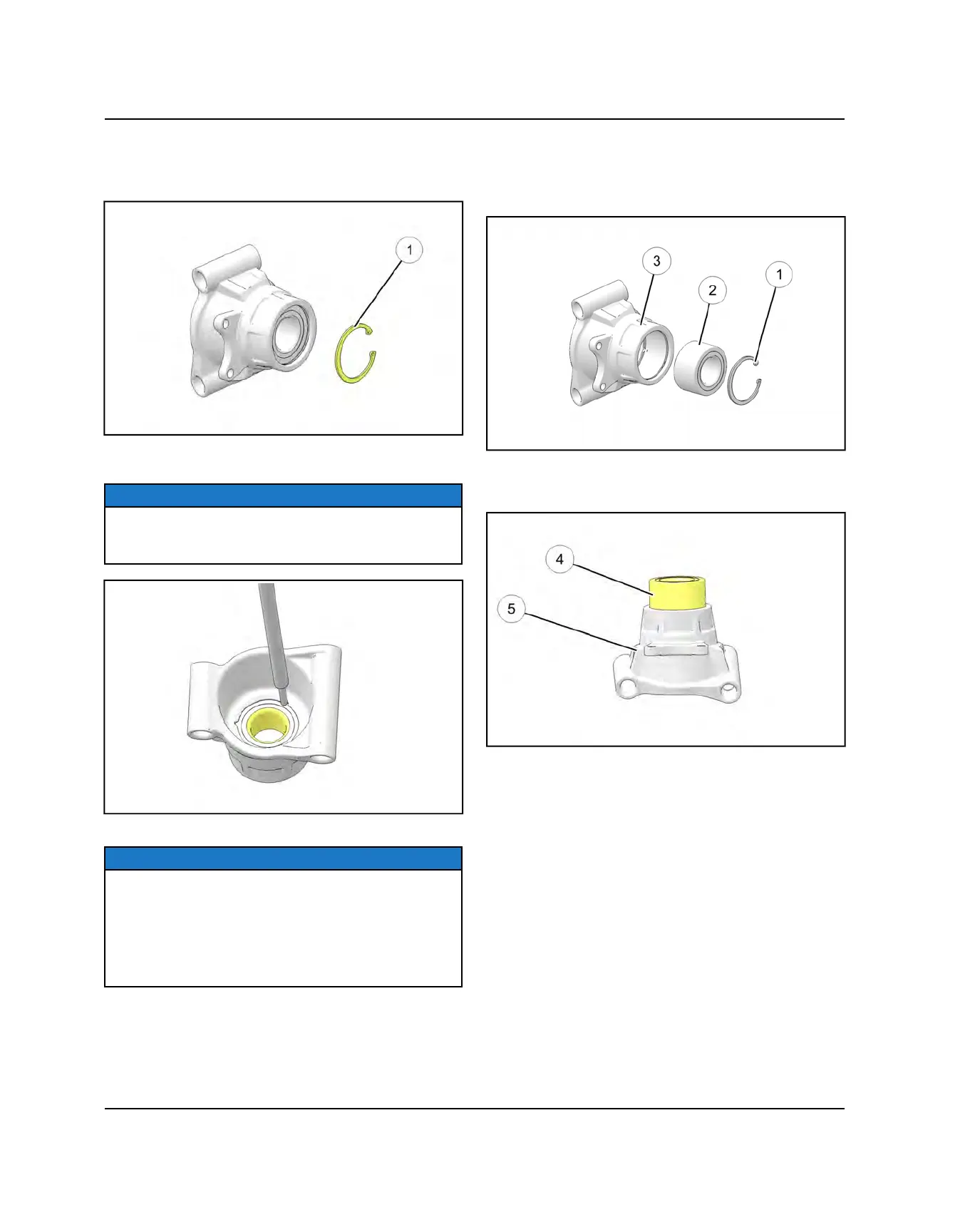

DISASSEMBLY

1. Remove the retaining ring from the bearing carrier

2. From the back side, tap on the outer bearing race

with a drift punch in the reliefs as shown.

NOTE

Drive bearing out evenly by tapping on outer race only.

Once bearing is at bottom of casting, support casting on

outer edges so bearing can be removed.

3. Inspect the bearing.

NOTE

Due to extremely close tolerances and minimal wear,

the bearings must be inspected visually, and by feel.

While rotating bearings by hand, inspect for rough

spots, discoloration, or corrosion. The bearings should

turn smoothly and quietly, with no detectable up and

down movement and minimal movement sideways

between inner and outer race.

4. Inspect bearing housing for scratches, wear or

damage. Replace housing if damaged.

5. Replace the bearing carrier bushings if worn or

damaged.

ASSEMBLY

1. Thoroughly clean the bearing carrier housing

and

prepare the bearing

and retaining ring

for

assembly.

2. Support the bottom of the bearing carrier housing.

Start the bearing

in the bearing carrier housing

Use an arbor press to install the bearing.

FINAL DRIVE
