9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual

7.9

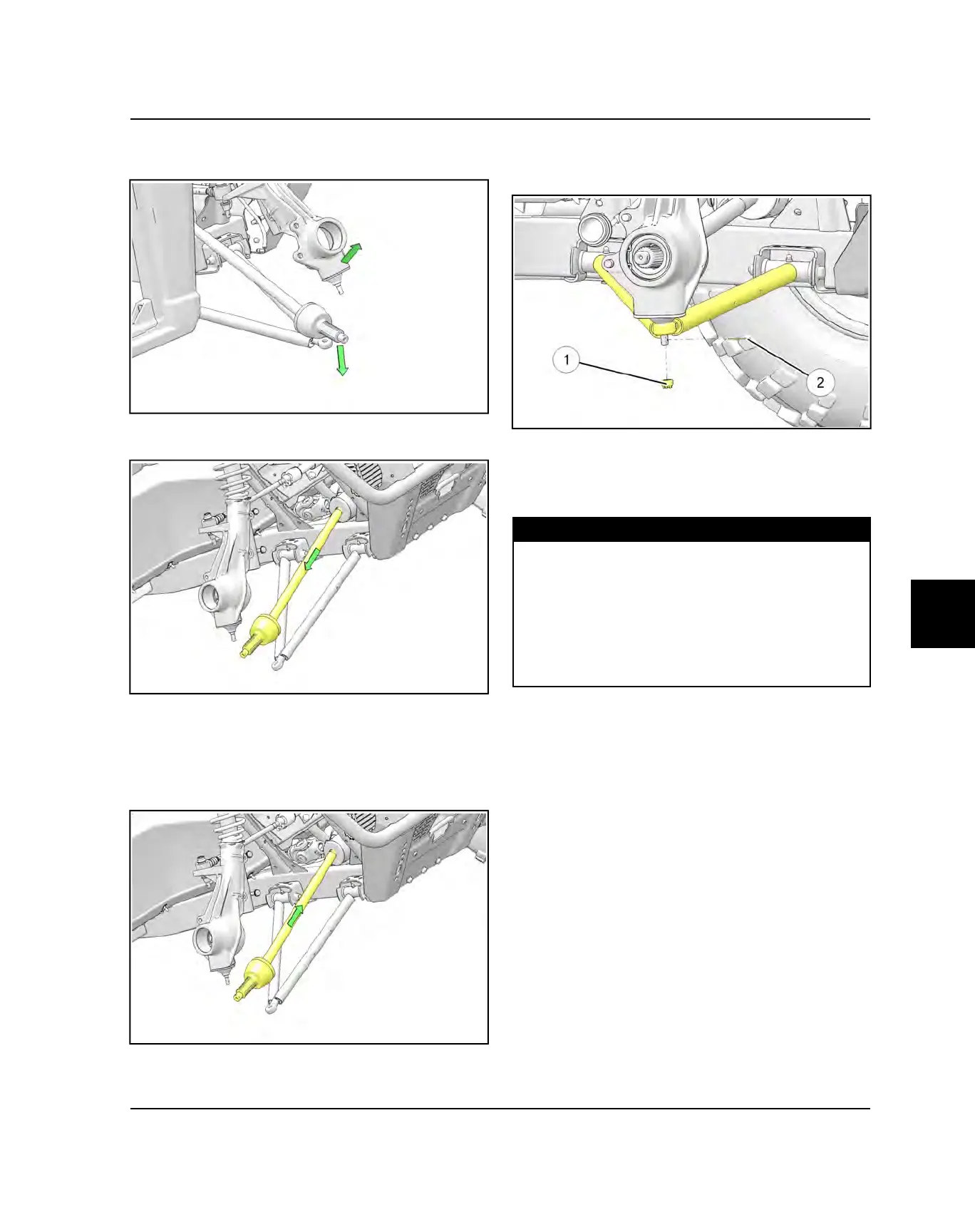

9. Pull strut assembly out while pivoting front drive shaft

downward until it clears strut assembly.

10. With short sharp jerks, remove drive shaft from front

gearcase.

FRONT DRIVE SHAFT INSTALLATION

1. Install new spring ring on drive shaft. Apply an anti-

seize compound to splines. Align splines of drive

shaft with front gearcase and install by lightly tapping

on drive shaft with rubber faced hammer.

2. Install drive shaft into strut housing.

3. Install the lower A-arm onto the lower ball joint,

torque nut

to specification and install new cotter

4. Install hub and tighten spindle nut to specification.

Install a new cotter pin

5. Install the brake caliper. Torque fasteners to

specification.

TORQUE

Ball Joint Nut Torque:

30 ft-lbs (41 Nm)

Front Hub Nut Torque:

90 ft-lbs (122 Nm)

Brake Caliper Bolt Torque:

46 ft-lbs (62 Nm)

FINAL DRIVE
