IGNITION COIL AND HT LEAD
REPLACEMENT
1. Remove the drivers seat and disconnect the (-)
negative battery cable.
2. Disconnect harness connection to the ignition coil.

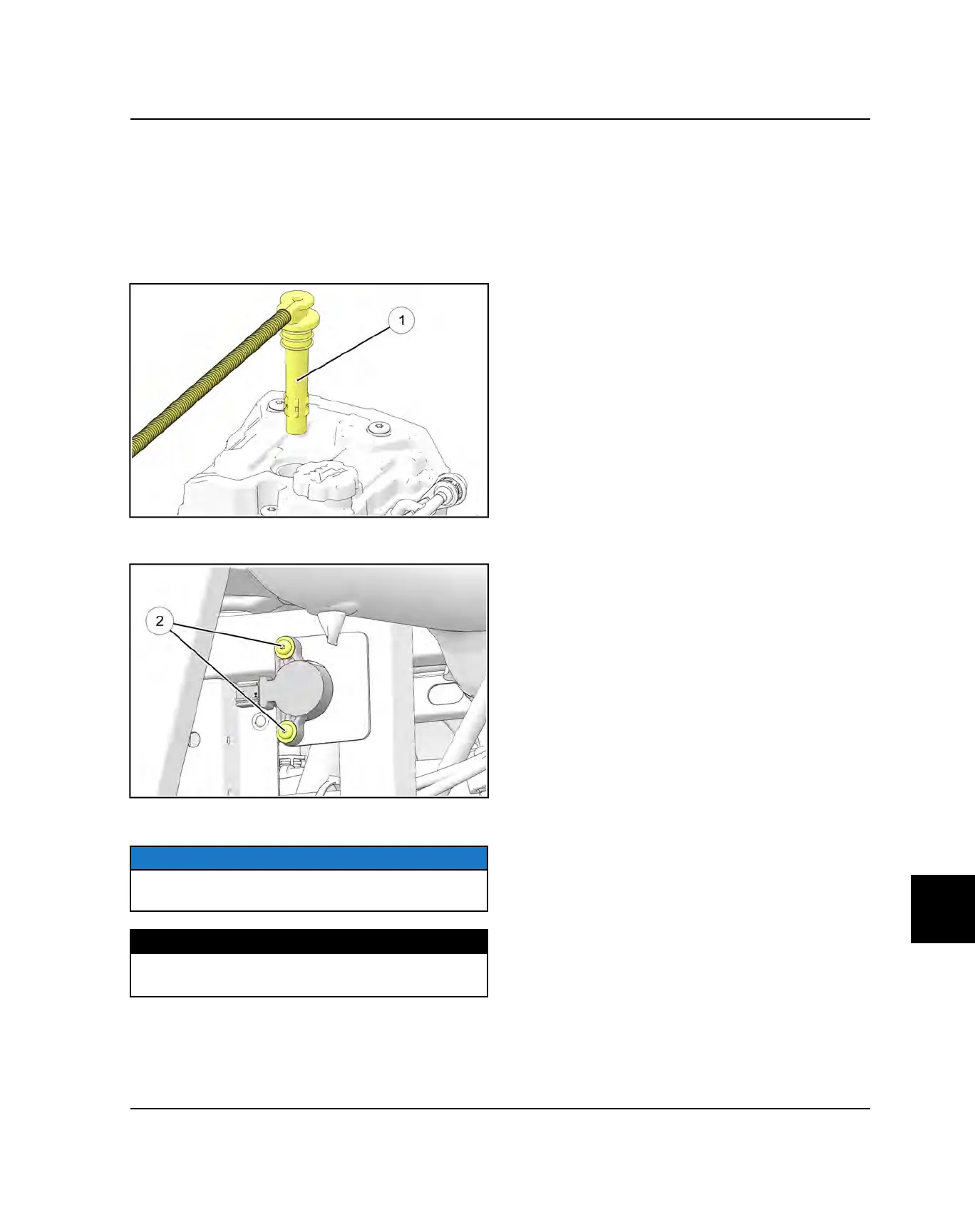

3. Remove high tension lead cap
q
from the spark
plug.
4. Remove fasteners
w
retaining the ignition coil and
remove coil assembly from the vehicle.
5. Install new ignition coil assembly and tighten
fasteners to specification.
NOTE
Be sure to reinstall the coil mounting spacers upon
assembly (if equipped).
TORQUE
Ignition Coil Retaining Bolt:
75 in-lbs (8.5 Nm)
6. Connect harness connection to the ignition coil.
7. Reconnect battery cable and install the drivers seat.
ELECTRICAL
