9
9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.
9.29

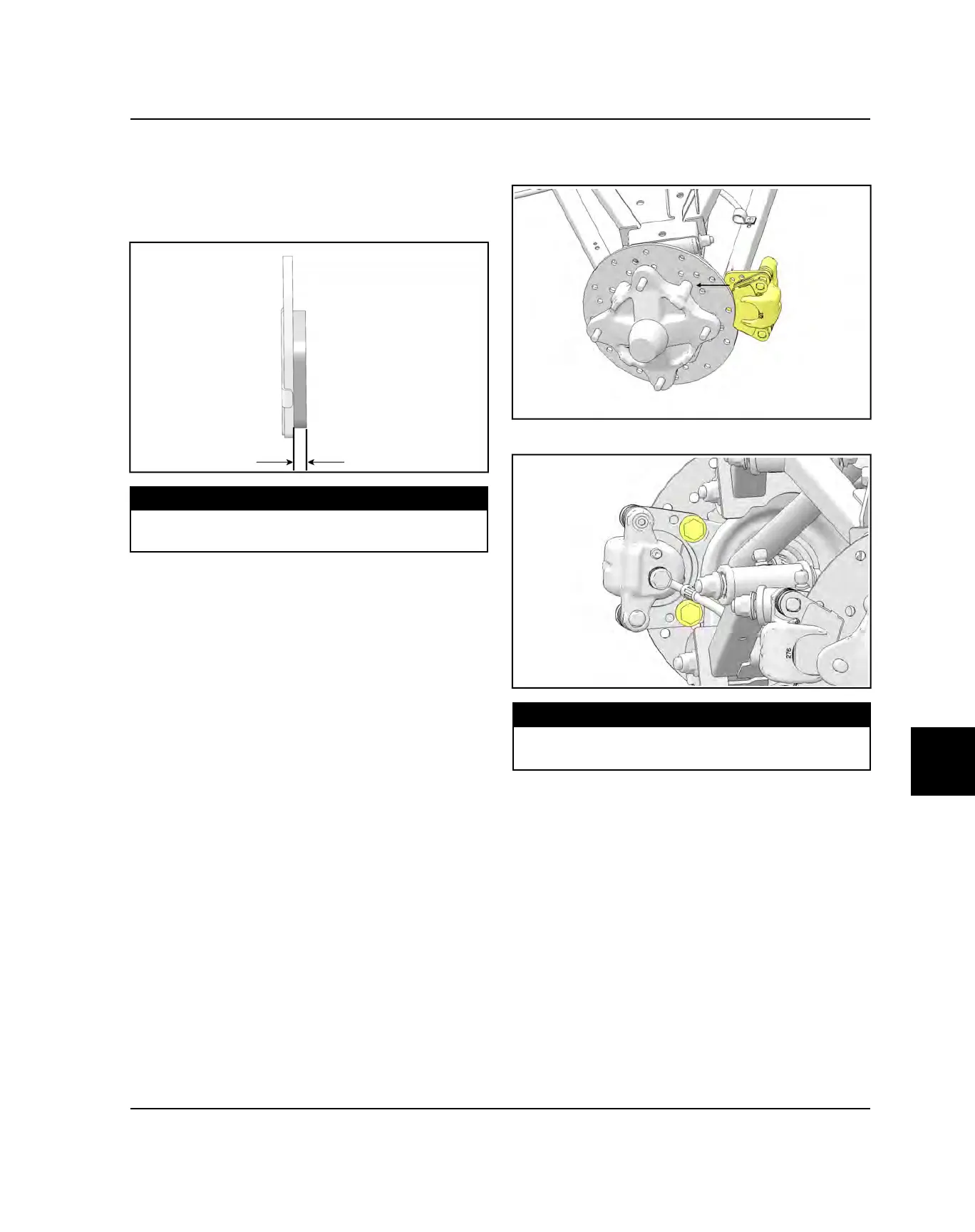

BRAKE PAD INSPECTION
1. Check the brake pads for wear, damage, or
looseness.
2. Inspect the brake pad wear surface for excessive
wear.
MEASUREMENT
Brake Pad
.030″ (0.762 mm)
3. If any one pad is less than the service limit then all
pads should be replaced.
REAR PAD INSTALLATION
1. Install new pads in caliper body.
2. Install caliper and torque mounting bolts.
TORQUE
Rear Brake Caliper Mounting Bolts:
46 ft-lbs (62 Nm)
3. Turn adjuster screw back in finger tight using a hex
wrench. Then back off 1/2 turn.
4. Slowly pump the brake pedal until pressure has been
built up. Maintain at least 1/2"(12.7 mm) of brake
fluid in the reservoir to prevent air from entering the
master cylinder.
5. Fill master cylinder to Max level.
6. Burnish brakes as outlined in this chapter.
BRAKE SYSTEM
