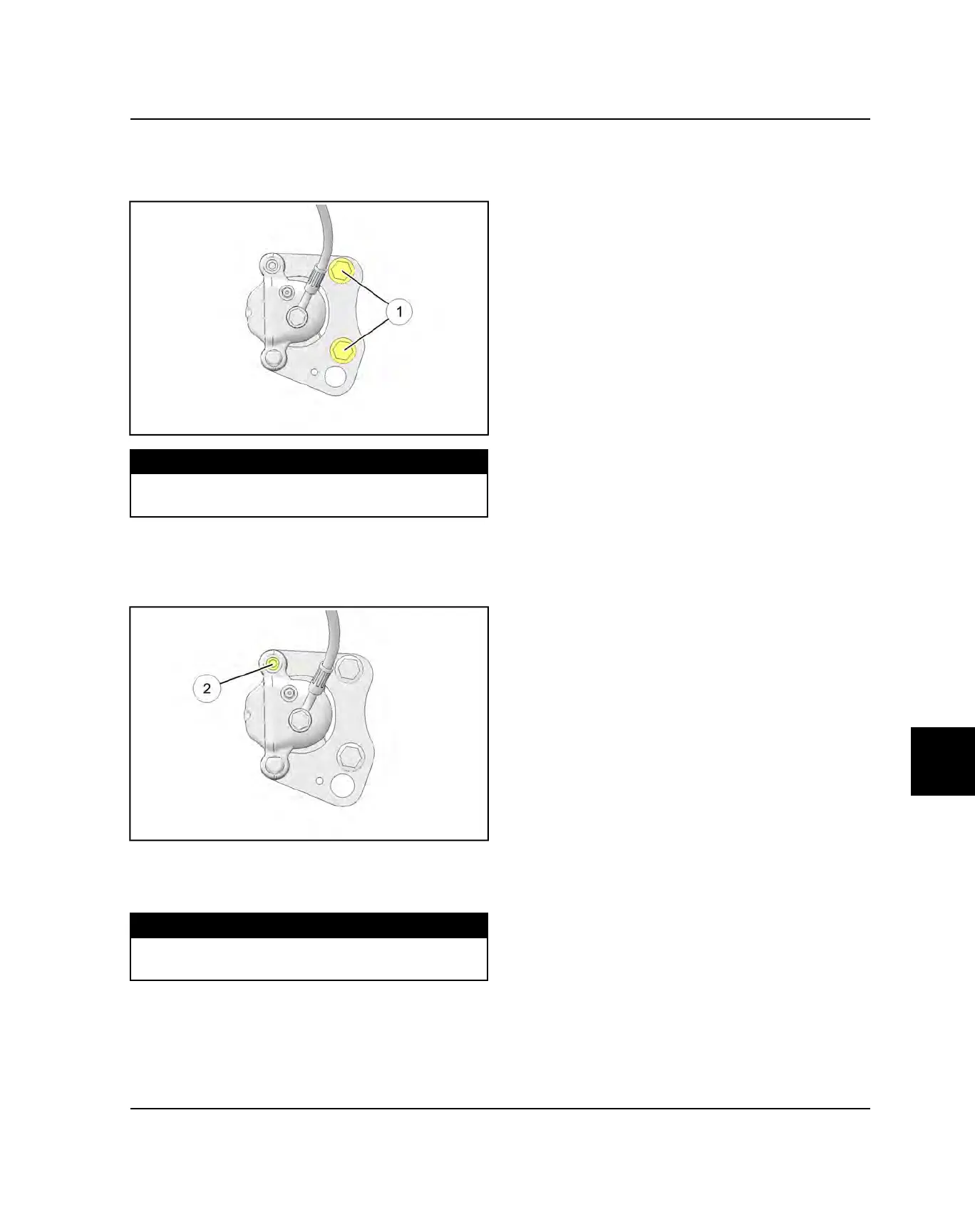

FRONT CALIPER INSTALLATION
1. Install caliper on hub strut, and torque mounting bolts
q
.
TORQUE
Front Caliper Mounting Bolt:
46 ft-lbs (62 Nm)
2. Install brake line and tighten securely with a flare nut
wrench.
3. Install the adjuster screw
w
and turn until stationary
pad contacts disc, then back off 1/2 turn.
4. Follow brake bleeding procedure outlined earlier in
this chapter.
5. Install wheels and torque wheel nuts to specification.
TORQUE
Steel Wheel Lug Nuts:
36 ft-lbs (49 Nm)
6. Burnish brake pads as outlined in this chapter
BRAKE SYSTEM
