2.44
9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.
SUSPENSION
SUSPENSION INSPECTION
Compress and release the suspension. Damping should
be smooth throughout the range of travel.
• Check all suspension components and mounting
fasteners for wear or damage.
• Inspect each shock body for leakage.

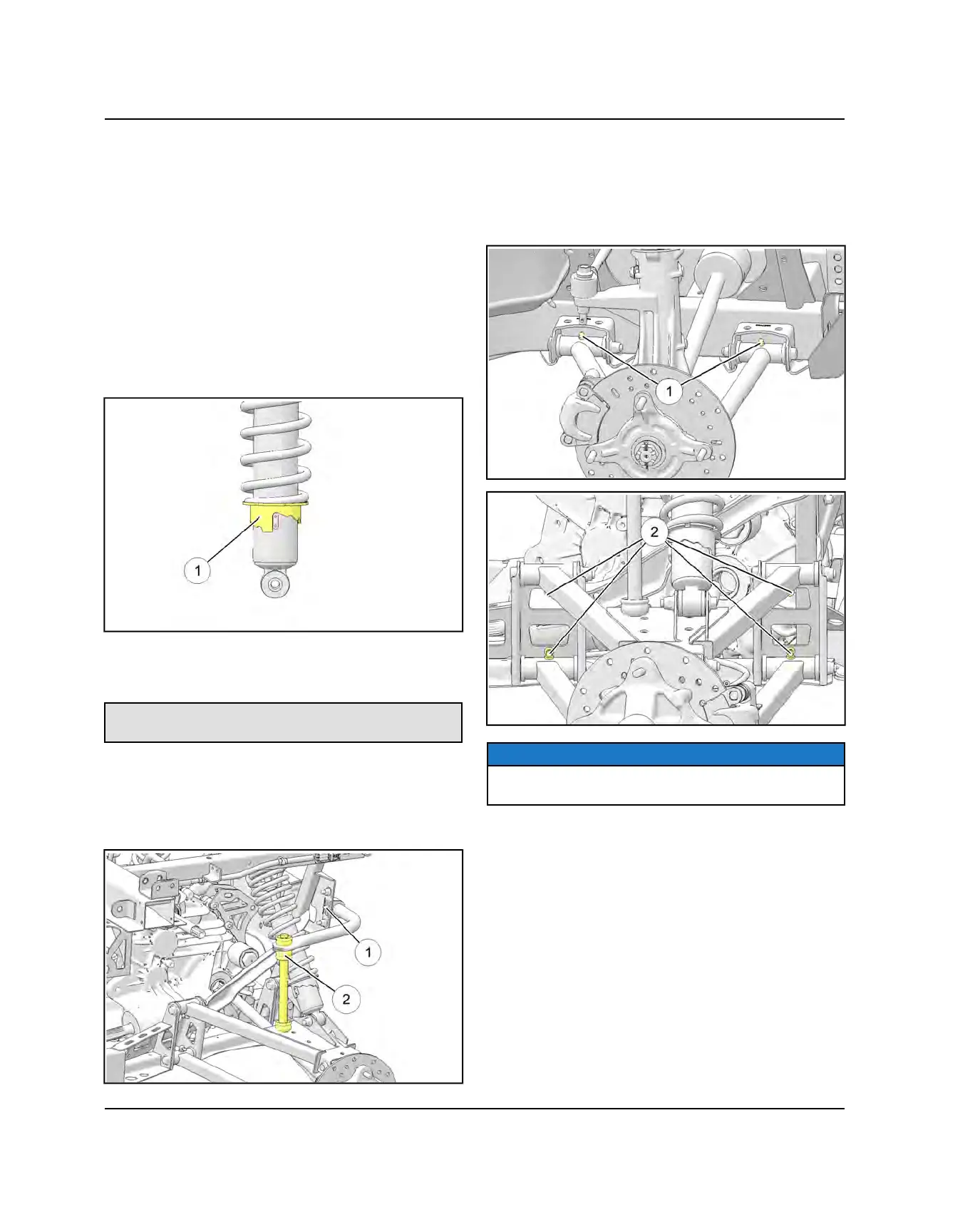

SPRING PRE-LOAD ADJUSTMENT
The rear shock absorber springs are adjustable. Rotate
the adjuster cam
q
either direction to increase or
decrease spring tension. Always adjust both left and right
sides equally.
Vehicle loads effect suspension spring pre-load
requirements. Use Spanner Wrench to adjust pre-load as
necessary to avoid bottoming of the shocks.
Shock Spanner Wrench
2871095
STABILIZER BAR PIVOT LUBRICATION
1. Grease stabilizer bar pivots
q
with a grease gun
until old grease is purged from the joint and new
grease appears. Inspect link isolators
w
for cracks.
SUSPENSION PIVOT POINT LUBRICATION
Grease all four front A-Arm pivot points
q
and all eight
rear A-Arm pivot points
w
. See the maintenance chart
for service intervals or grease as needed.
NOTE
Wheels removed for clarification only. Procedure can be
done with wheels installed on unit.
MAINTENANCE
