9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.
3.111

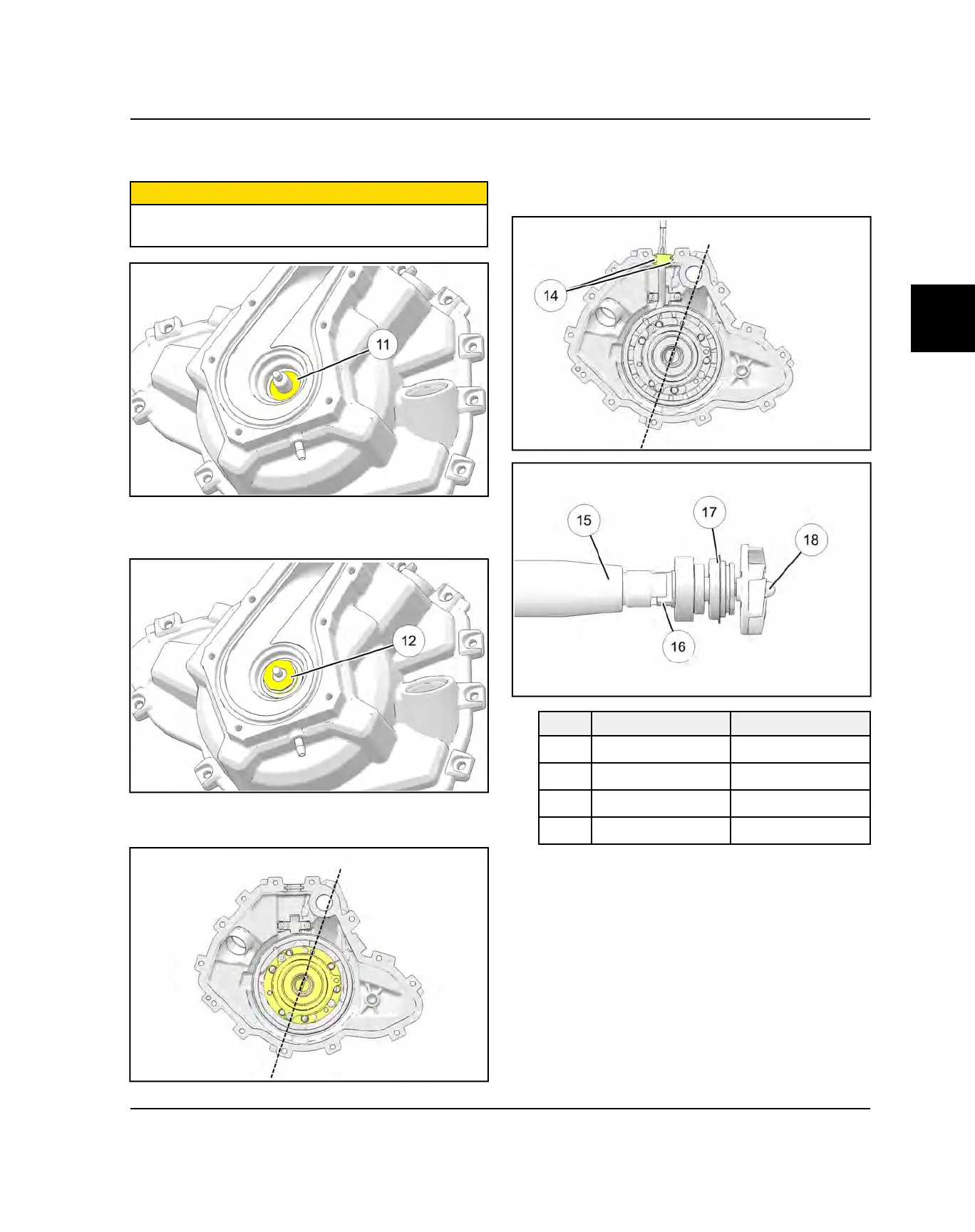

27. Use the water pump oil seal installation tool in kit PU-
50869 to fully install the new water pump oil seal
s
.
CAUTION
Be sure the oil seal is fully seated in cover or severe
engine damage may result.
28. Use the water pump mechanical seal installation tool
in kit PU-50869 to fully install the new water pump
mechanical seal
d
until it is fully seated in the cover.
29. Install a new stator cover gasket onto the engine.
30. Align the water pump drive slot as shown below.
31. Align the water pump drive shaft blade as shown
below.
32. Apply a small amount of crankcase sealant to the
area indicated below
g
.
REF.
DESCRIPTION NOTES
h
Crankshaft
j
Driveshaft
k
Mechanical Seal
l
Impeller
33. If needed, install the stator cover removal handles
tool PA-49317 to the water cover bolt holes to aid in
stator cover installation.
ENGINE / COOLING SYSTEM
