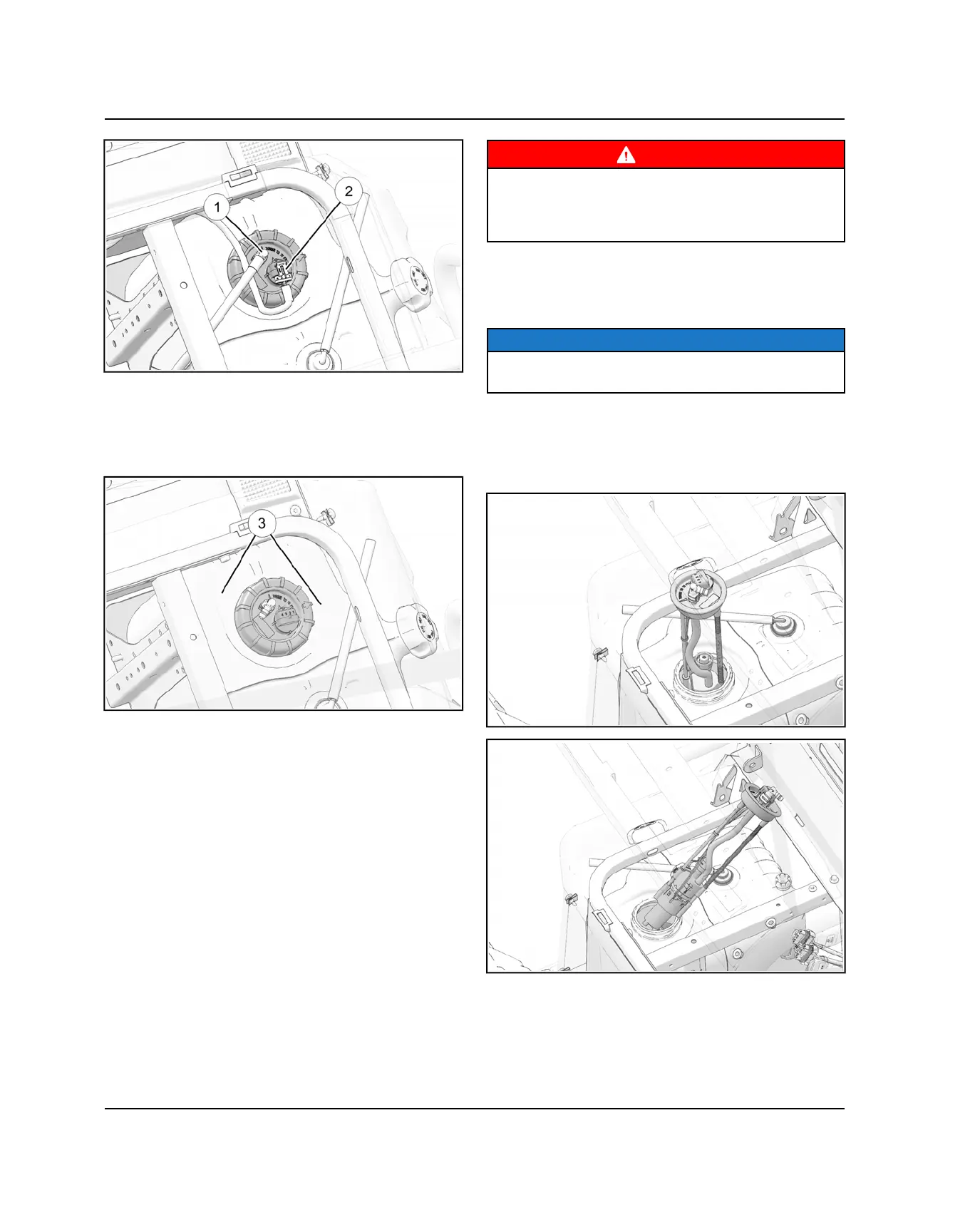

5. Disconnect the fuel pump electrical harness
w
.
6. Be sure the top of the fuel tank is clean. If it requires
cleaning, hand wash the top of the tank
e
to ensure
no debris will enter the fuel system when the fuel
pump is removed.
WARNING
Failure to clean area around fuel pump may lead to
debris entering the fuel tank during service. Excessive
debris in fuel tank may cause premature wear of fuel
pump and/or clogging of internal fuel filters.
7. Place the Fuel Pump Service Tool (PU-50326) over
the fuel pump PFA nut. Using a 1/2” drive ratchet or
breaker bar, loosen and remove the PFA nut. Discard
the PFA nut.
NOTE
Apply downward force on the fuel pump flange while
removing the fuel pump PFA nut.
8. Carefully lift the fuel pump out of the fuel tank. As the
fuel pump assembly is being removed, be aware of
float arm and pump pre-filter. Hold the float arm to the
pump body as you lift and tilt the pump to ensure that
the float arm is not bent when removed from the tank.
9. Transfer old fuel pump to a suitable container capable
of safely holding fuel. The fuel pump will retain some
fuel.
10.Inspect the inside of the fuel tank for debris (may
require flashlight and mirror). If debris like mud or
