6.32
9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.

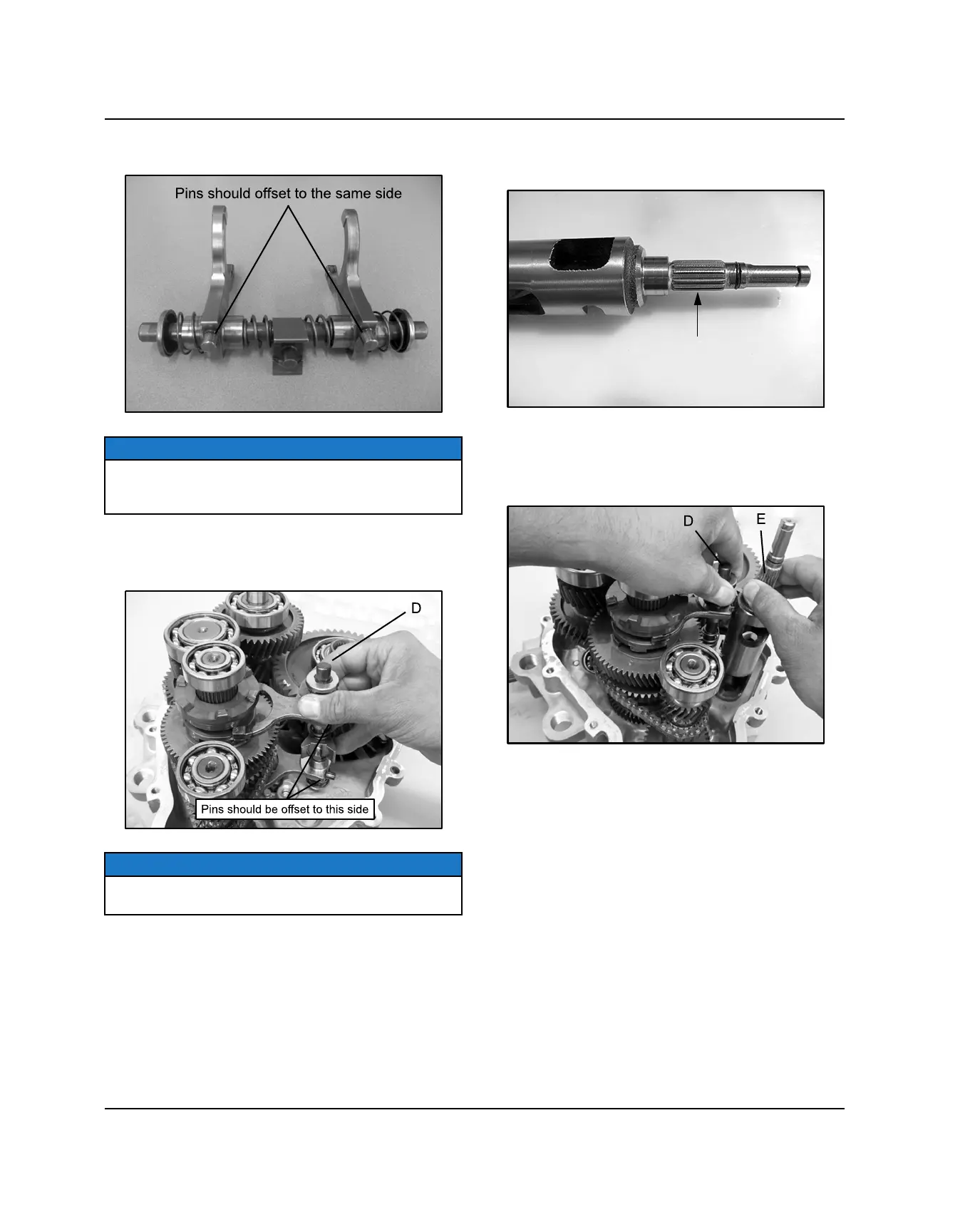

24. Assemble shift shaft rail if previously disassembled.
NOTE
Both shift forks need to be orientated the same way, so
that the shift fork pins are both offset to the same side
of the rail.
25. Install the shift shaft rail (D) and shift forks into the
transmission housing as an assembly. Be sure the
shift forks are engaged into the engagement dogs.
NOTE
Shift fork pins should be offset towards the input shaft
as shown above.
26. Inspect the shift drum for any damage or wear.
Inspect the splines of the shift drum.
27. Install the shift drum (E) into the transmission
housing. Lift up on the shift shaft rail (D) and move
the rail assembly towards the shift drum to allow the
shift fork ends to be installed into the shift drum (E).
28. Apply a continuous bead of Crankcase 3 Bond
Sealant (PN 2871557) to the left hand transmission
mating surface.
TRANSMISSION
