9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.
FRONT GEARCASE / CENTRALIZED HILLIARD
FRONT DRVIE (NON-ADC)

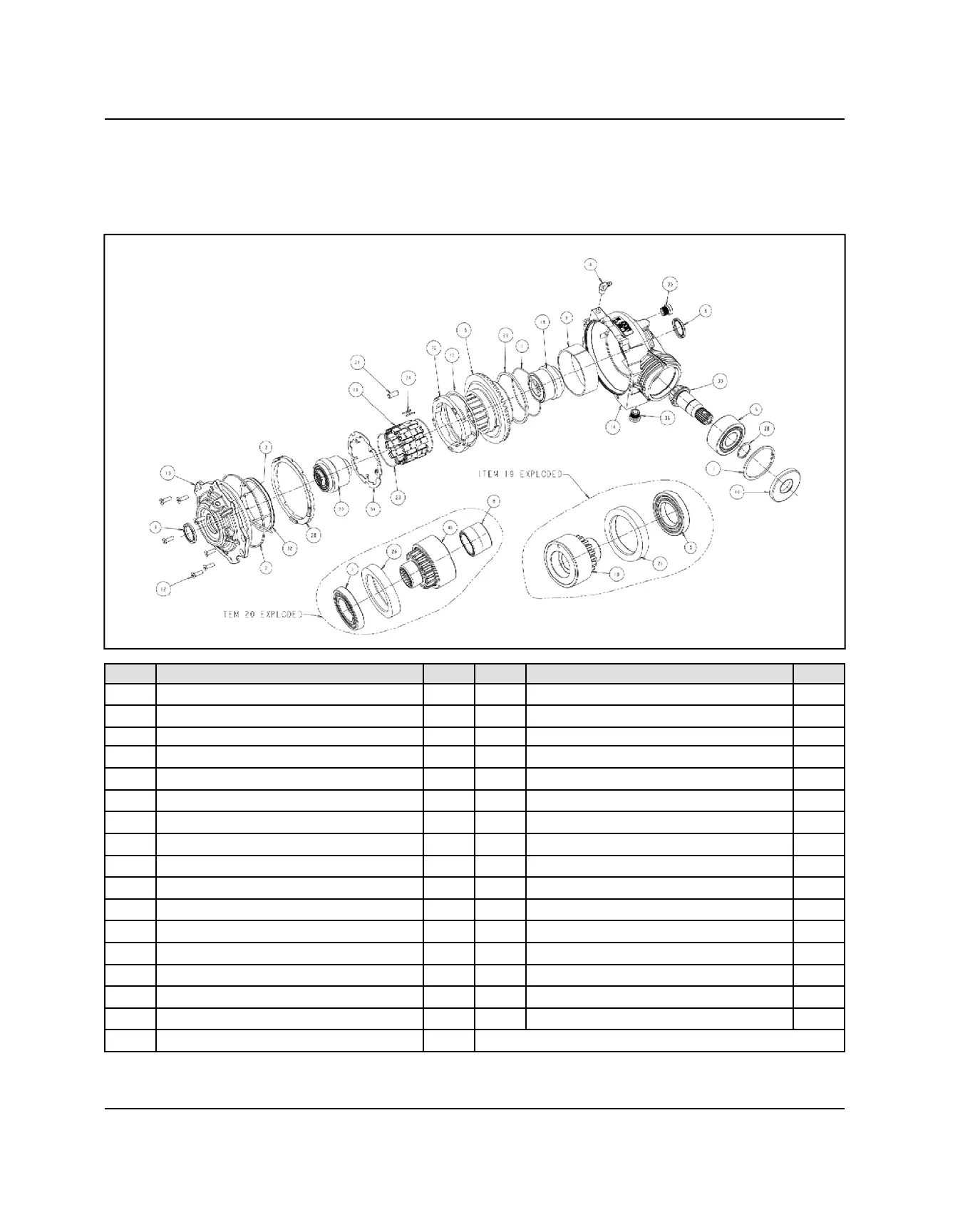

FRONT GEARCASE ASSEMBLY VIEW
REF# DESCRIPTION
QTY
REF# DESCRIPTION
QTY
1
O-Ring
1 19
Hub Sub-Assembly (Female)
1
2
O-Ring
1 20
Hub Sub-Assembly (Male)
1
3 Dowel Pin 1 21 Rollers 20
4
Vent Hose Fitting
1 22
Torsion Spring
1
5
Ball Bearing
2 23
Spring, Wireform
2
6
Ball Bearing (Double Row)
1 24
H-Clip Spring
20
7
Bushing
1
26
Nylon Spacer
2
8
Bushing
1 27
Torsion Spring Retainer
1
9 Oil Seal 2 28
Backlash Spacer
1
10 Oil Seal 1 29
Ring Gear Spacer
1
11
Retaining Ring, Internal
1 30 Pinion Gear 1
12
Cover Screws, M6 (T30 Torx)
7 31 Armature Plate 1
13
Cover Plate Assembly
1 32 AWD Coil 1
14
Gearcase Housing
1 35
Fill Plug
1
15
Clutch Housing (Ring Gear)
1 36
Drain Plug, Magnetic
1
16
Roll Cage
1
38
Retaining Ring, External
1
18
Hub / Race Assembly
2
FINAL DRIVE
