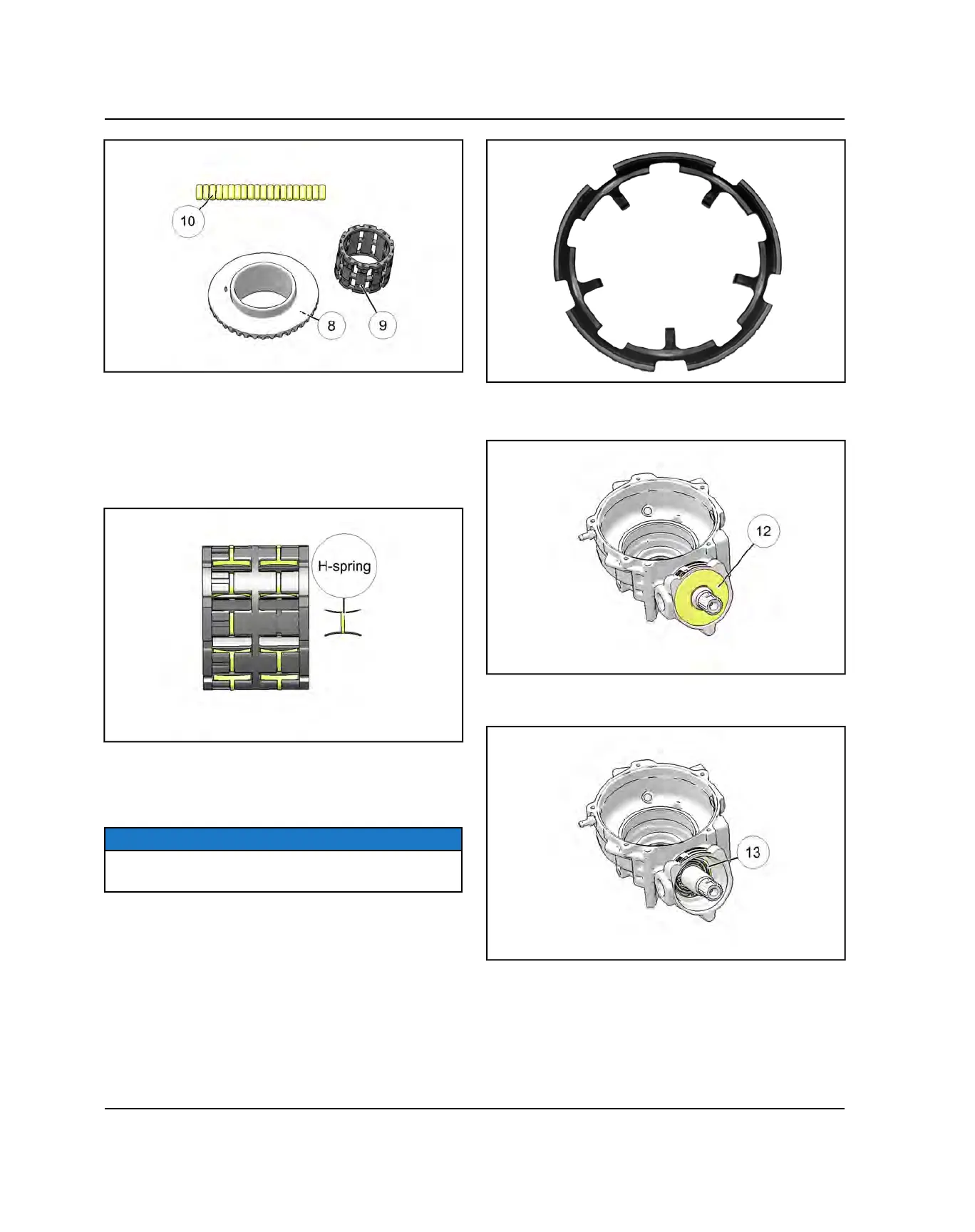

13.Inspect the ring gear
i
for inconsistent wear patterns
or damage. The surfaces should be free of nicks or
burrs.
14.Inspect roll cage (B) sliding surface. This surface
must be clean and free of nicks, burrs or scratches.
Inspect the H-springs, but do not remove them
from the roll cage.
15.Inspect the armature plate for a consistent wear
pattern. Uneven wear of the armature plate indicates
a warped plate, which may cause intermittent
operation.
NOTE
See “FRONT GEARCASE DIAGNOSIS” later in this
chapter for more details.
16.Drill a hole in the input shaft seal
d
and remove the
seal using a pry bar or seal puller.
17.Remove the snap ring retaining the input shaft
assembly.
18.Remove the input shaft assembly. Inspect the pinion
gear
g
for chipped, broken, or missing teeth. Inspect
the input shaft bearing
h
for signs of wear. Replace
the input shaft cover O-ring prior to reassembly.
