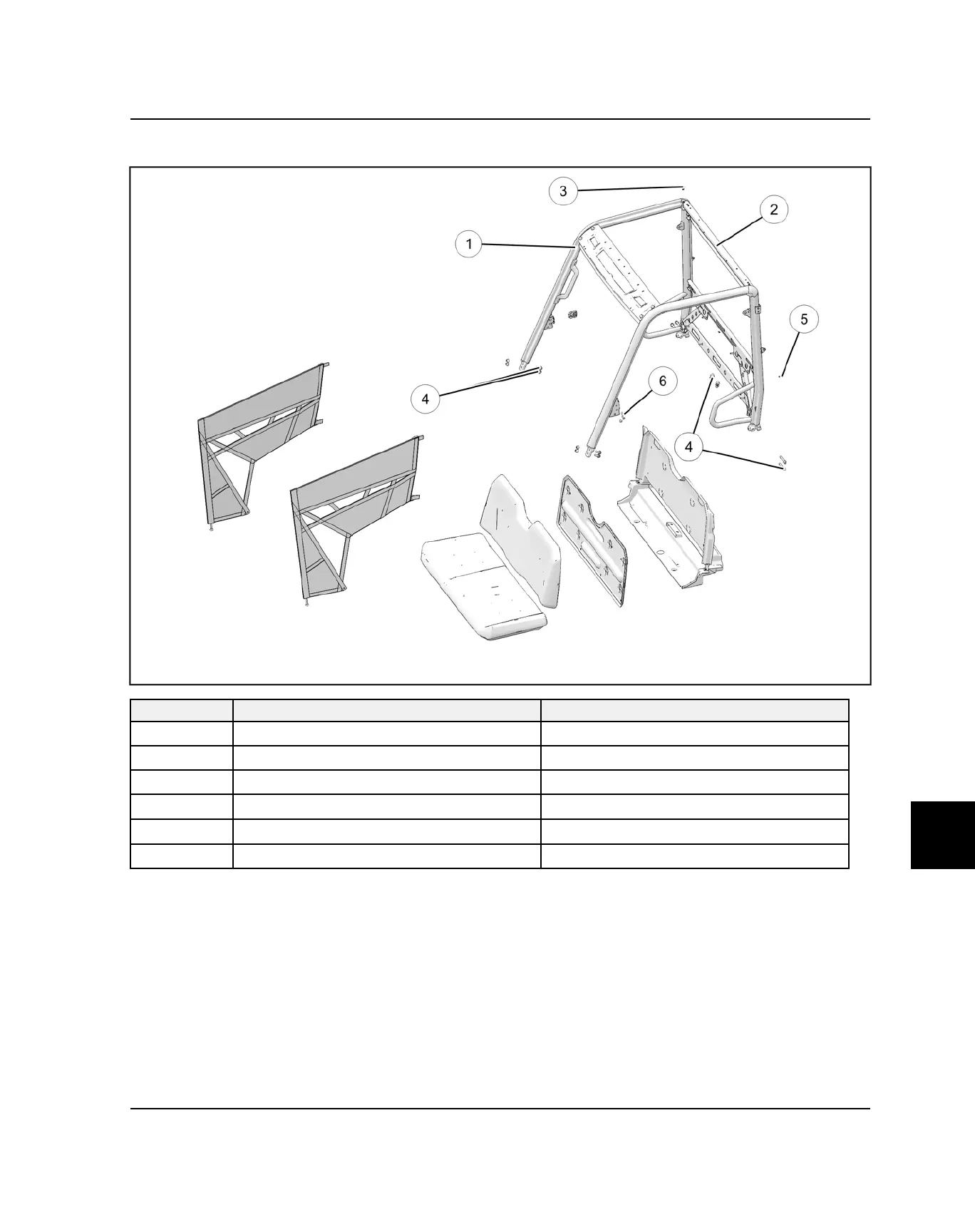

2015-2016 CAB FRAME
REF.
DESCRIPTION NOTES
q
Front Cab Frame
w
Rear Cab Frame
e
Screws Torque to 36 ft-lbs (49 Nm)
r
Screws Torque to 36 ft-lbs (49 Nm)
t
Screws Torque to 18 in-lbs (27 Nm)
y
Screw Torque to 8 ft-lbs
