Polysoude PS 406-2 - Spare Parts; Fig. 6.12 - View Left Side; Fig. 6.13 - View Right Side

PN-0908073 Rev. 11 65-92
PS 164-2
THE ART OF WELDING
1
2
3
5
6
7
8
9
10
4
12
13
6. 5. 2. Spare parts
Designation Position Reference
Relay 48 V
AC
1 00544027
Relay 12 V
DC
(emergency stop) 2 9000544034
Rectifi er 3 00320042
Coolant fi lter 4 00699017
Water fi ltering element 5 00699016
Toric transformer 6 2040410145
Memory circuit interface 7 21700680
Gas safety valve 8 00629085
Water safety valve 9 00629084
Water pump 230V/50Hz
Water pump 230V/60Hz
10 00629073
00629074

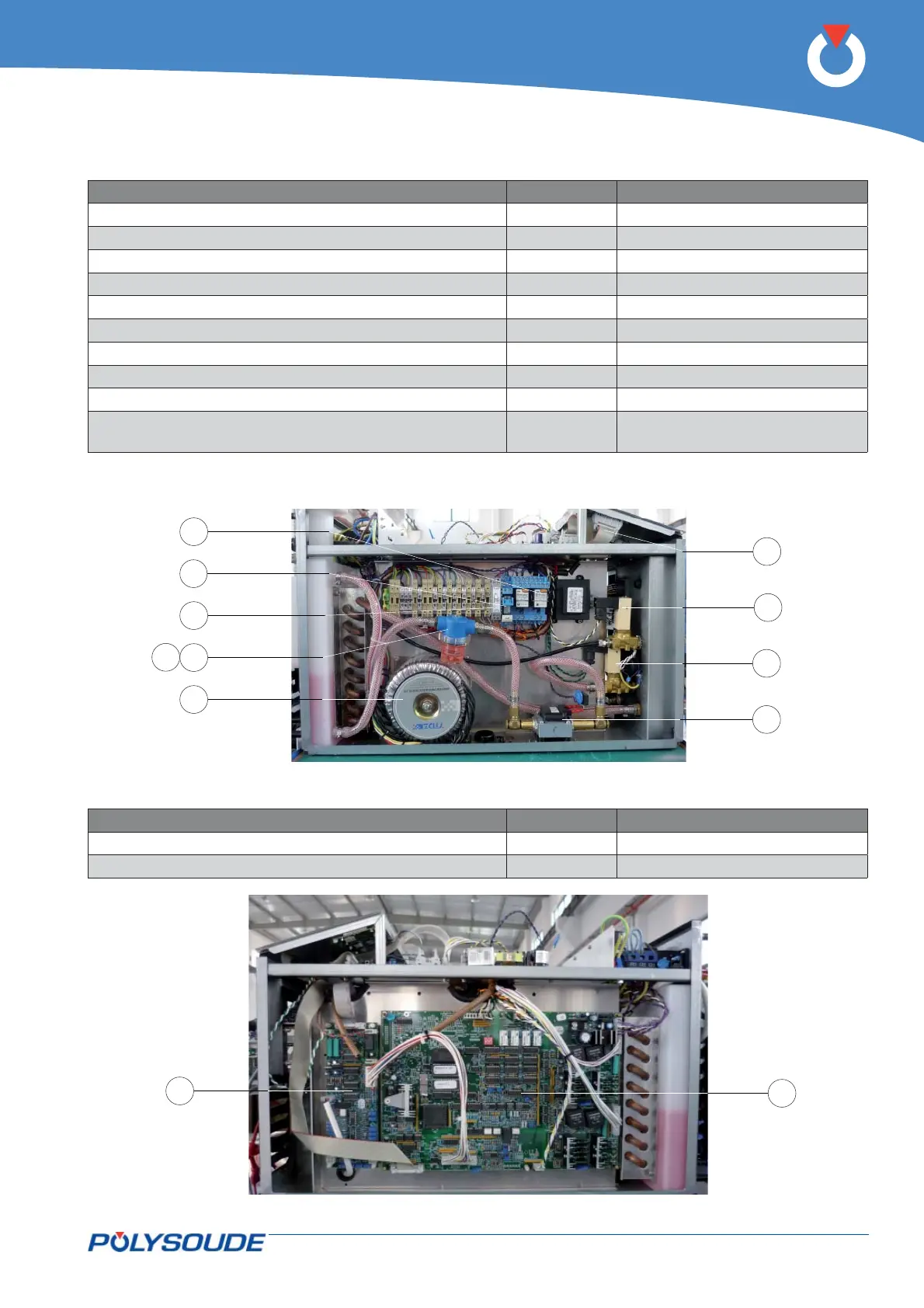

Fig. 6.12 - View left side
Fig. 6.13 - View right side
Designation Position Reference
Source interface card 12 2021700750
Sequencer card 13 21700633
