Polysoude PS 406-2 - Fig. 6.14 - Topview; Fig. 6.15 - Rearview

66-92 PN-0908073 Rev. 11
PS 164-2
THE ART OF WELDING
14
15
16
17
18
19
20
21
23
22
Designation Position Reference
Gas solenoid valve 14 75301335
Single mains fi lter 16A/230V 15 00629098
Power supply card+5V 16 00629076
Synoptic card 17 21700634
Display 18 00503026
Key switch 19 00545112
Synoptic 20 2017005299
White cover - 2017005240
Front cover blue - 2017005280
Rear cover blue - 2017005290

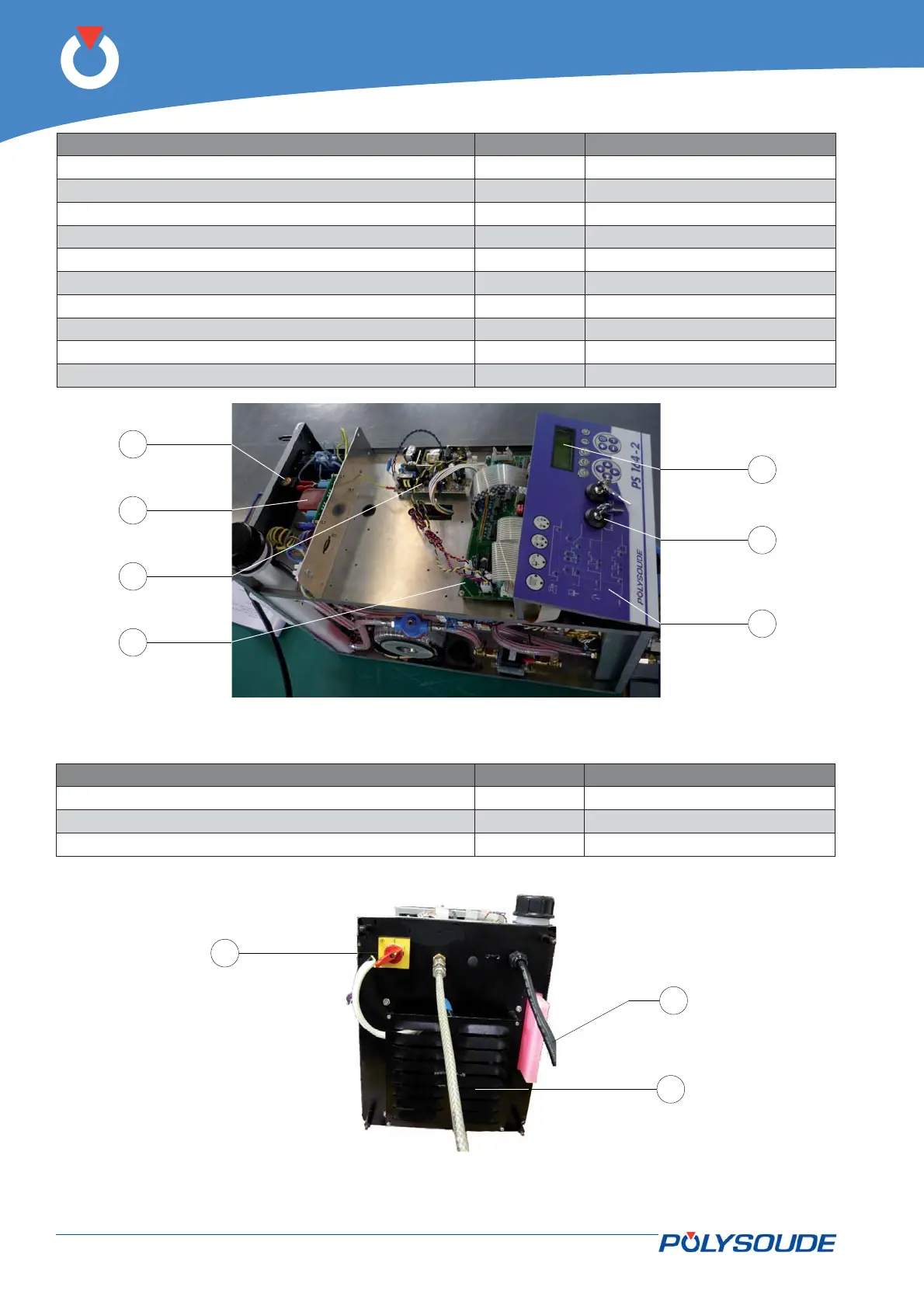

Fig. 6.14 - Topview
Fig. 6.15 - Rearview
Designation Position Reference
Power switch 21 00545111
Fan 230V/50-60Hz 22 00629091
Mains power outlet connection cable 23 00629120
