A-3
A TMS-A-305 Calibration Set
INFORMATION
In the Standards.xml file, some values have already been defined by default.
2. Enter the name of the standard and from the calibration certificate, enter
the depth, uncertainty and width for every groove and if applicable, delete
any values which are not relevant (refer to the following figure).

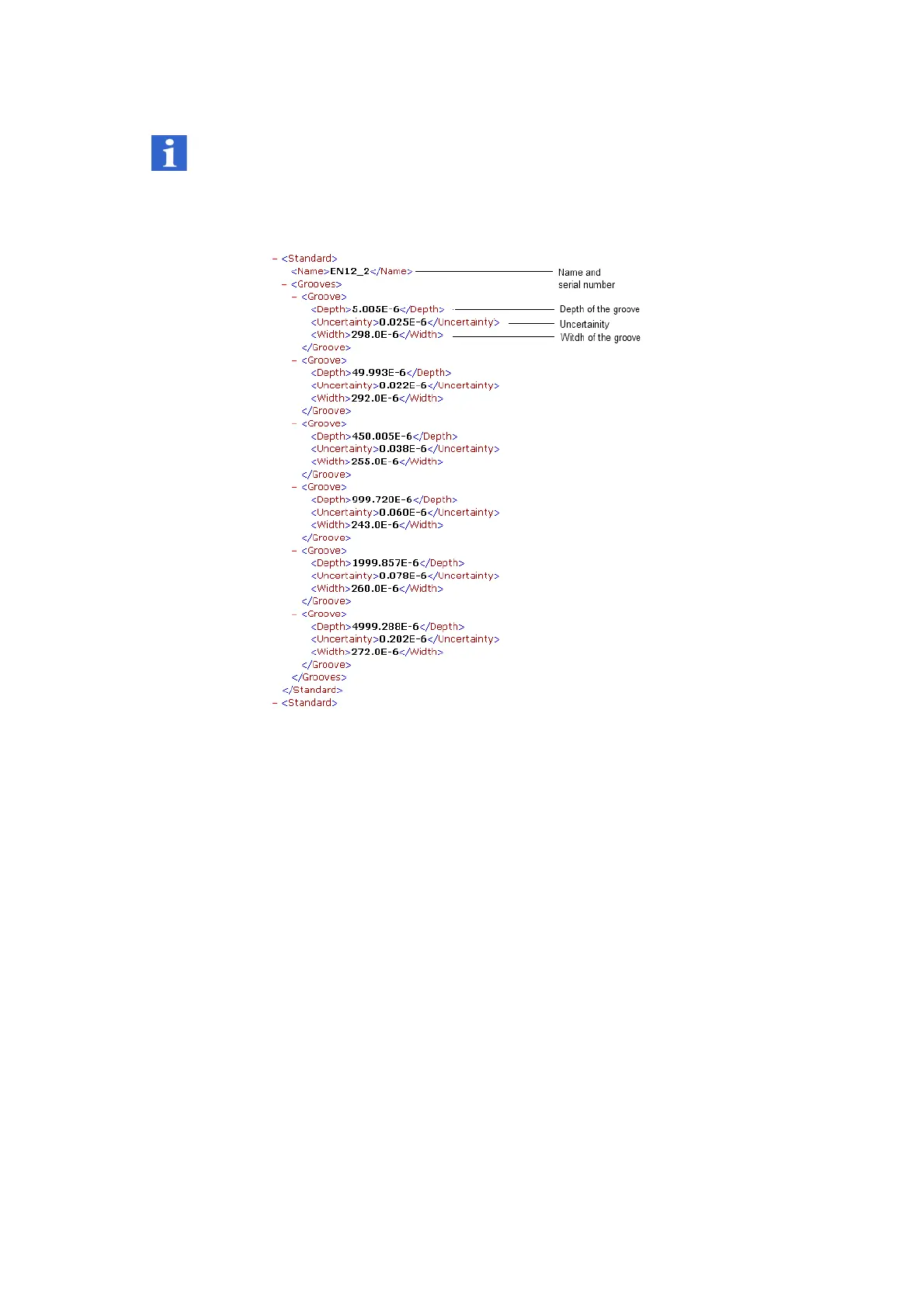

Figure A.2: Excerpt of the XML file to define the depth setting standard
3. To define more standards, repeat step 2.
4. Once you have defined all standards, save the XML file to apply the data
to the TMS software.
