POSEIDON M28 USER MANUAL

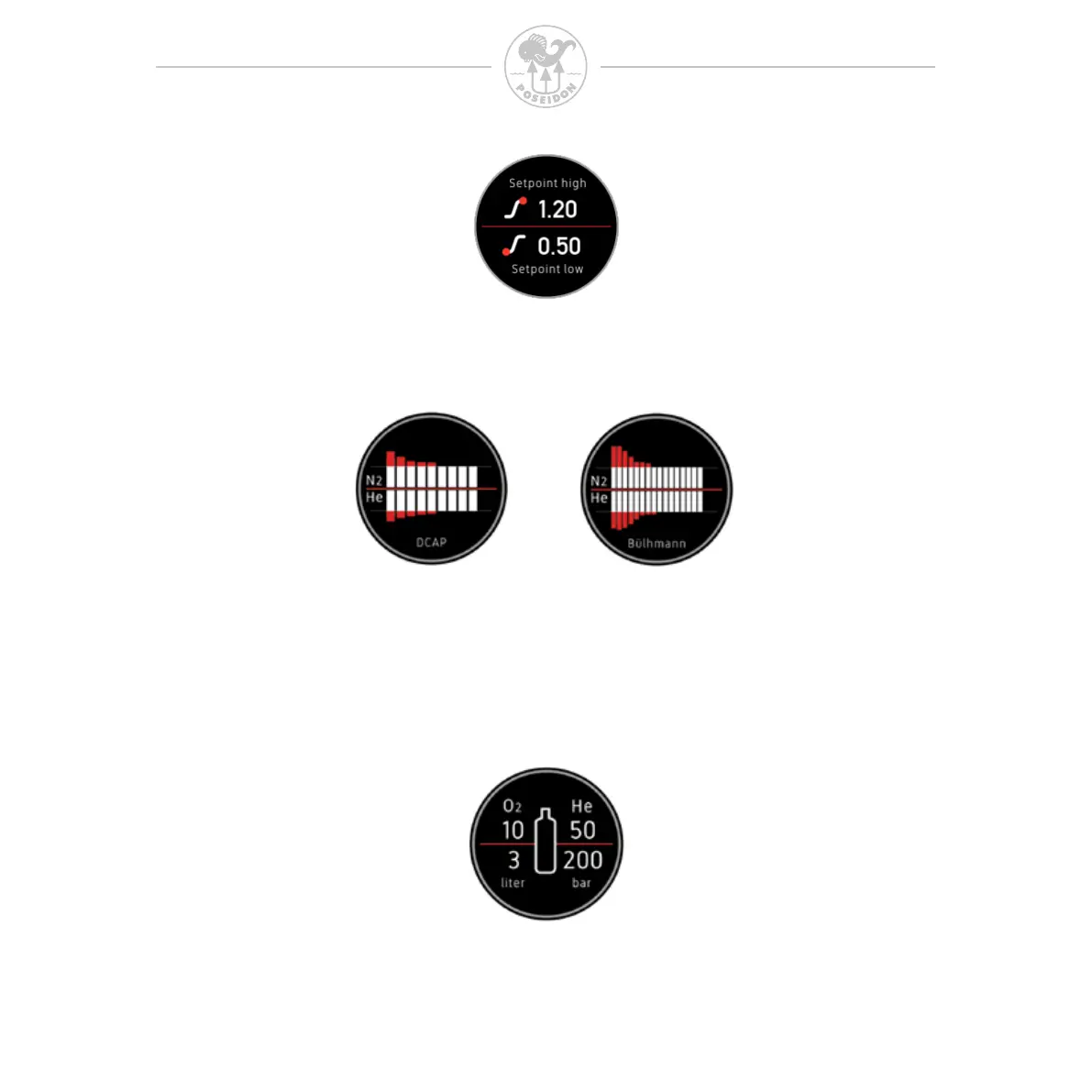

Setpoint which are used by SE7EN and the M28 to determine the sliding setpoint at
the current depth. Setpoint low and Setpoint high can be recongured from the Dive
app menu in SE7EN, CPOD and Setpoint dive mode.
DCAP or Bühlmann tissue value graph.
Indicates the gas load of the tissues used in the decompression model.
Bars representing gas load in fast tissues on the left side and slow on the right.
Nitrogen (N2) is the upper part of the graph growing upwards, while helium (He) is
the lower part of the graph, growing downwards. The intent of this graph is to give an
overview of the current gas load for the tissues in the decompression model.
Cylinder pressure and gas. Displays the conguration of the currently selected gas
tank in terms of tank volume, tank pressure rating, oxygen fraction and helium fraction.
Units used for pressure and volume can be congured in Settings.
