G2000e/G3000e/G6000e User’s Manual Chapter 2: Setup and Use
13

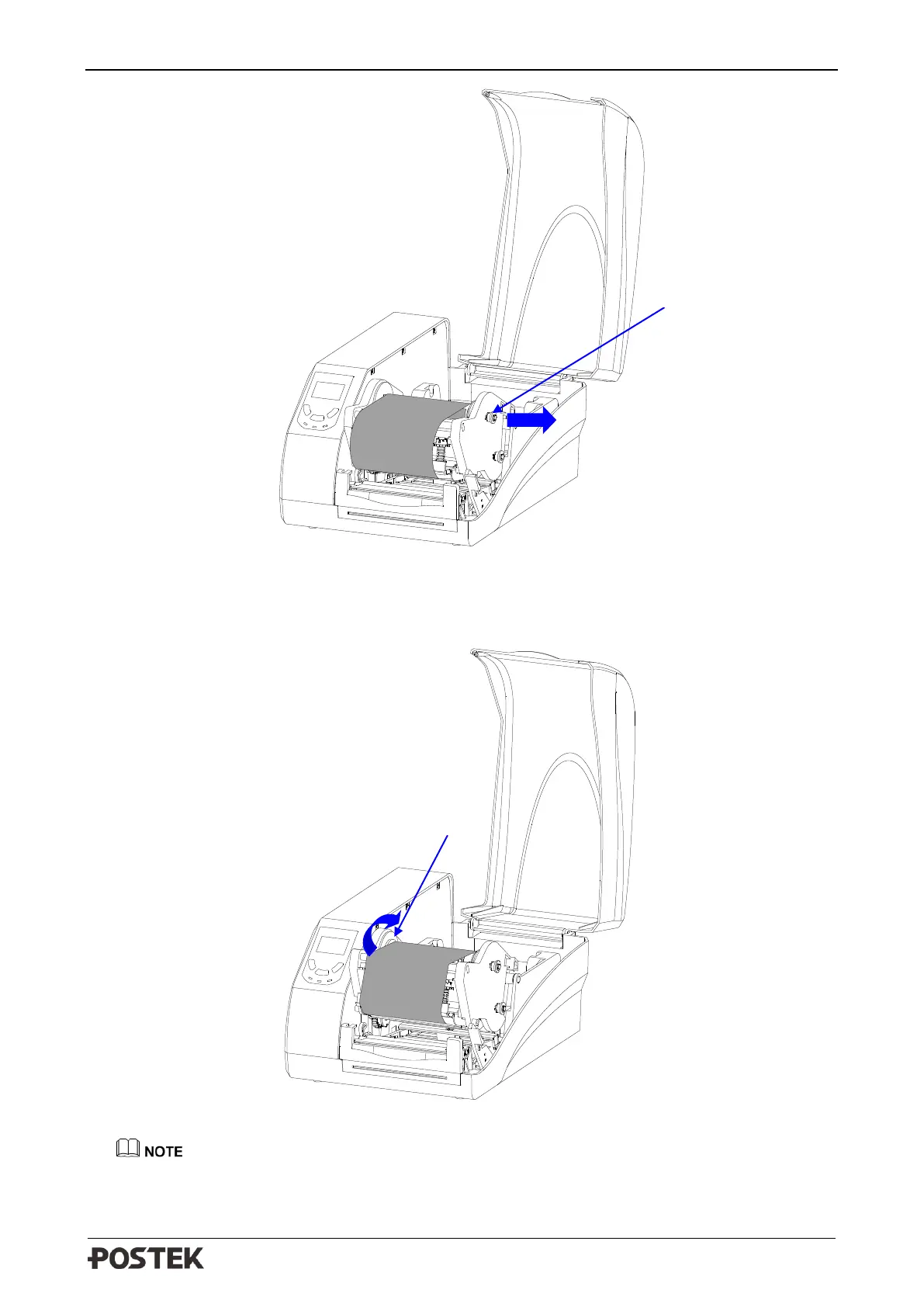

Figure 2-9 Place the Core on Ribbon Take-up
8. Turn the Left Mount of Ribbon Take-up to ensure the ribbon is tight and smooth, see Figure
2-10.
Figure 2-10 Ribbon Roll loaded
To make sure the Ribbon End Sensor works properly, please use ribbon rolls which end with
reflective materials or transparent materials with good reflective performance.
Release Knob
Left Mount_Ribbon Take-up
