3.3 Module 2416 EL
The control unit has optionally one or two 2416 EL module(s).
Each module has 24 digital inputs and 16 digital outputs (24V DC).
The inputs and outputs are fully opto-isolated from the internal
logic.
Each module has its own monitoring system. The module status is
displayed via 4 LEDs.

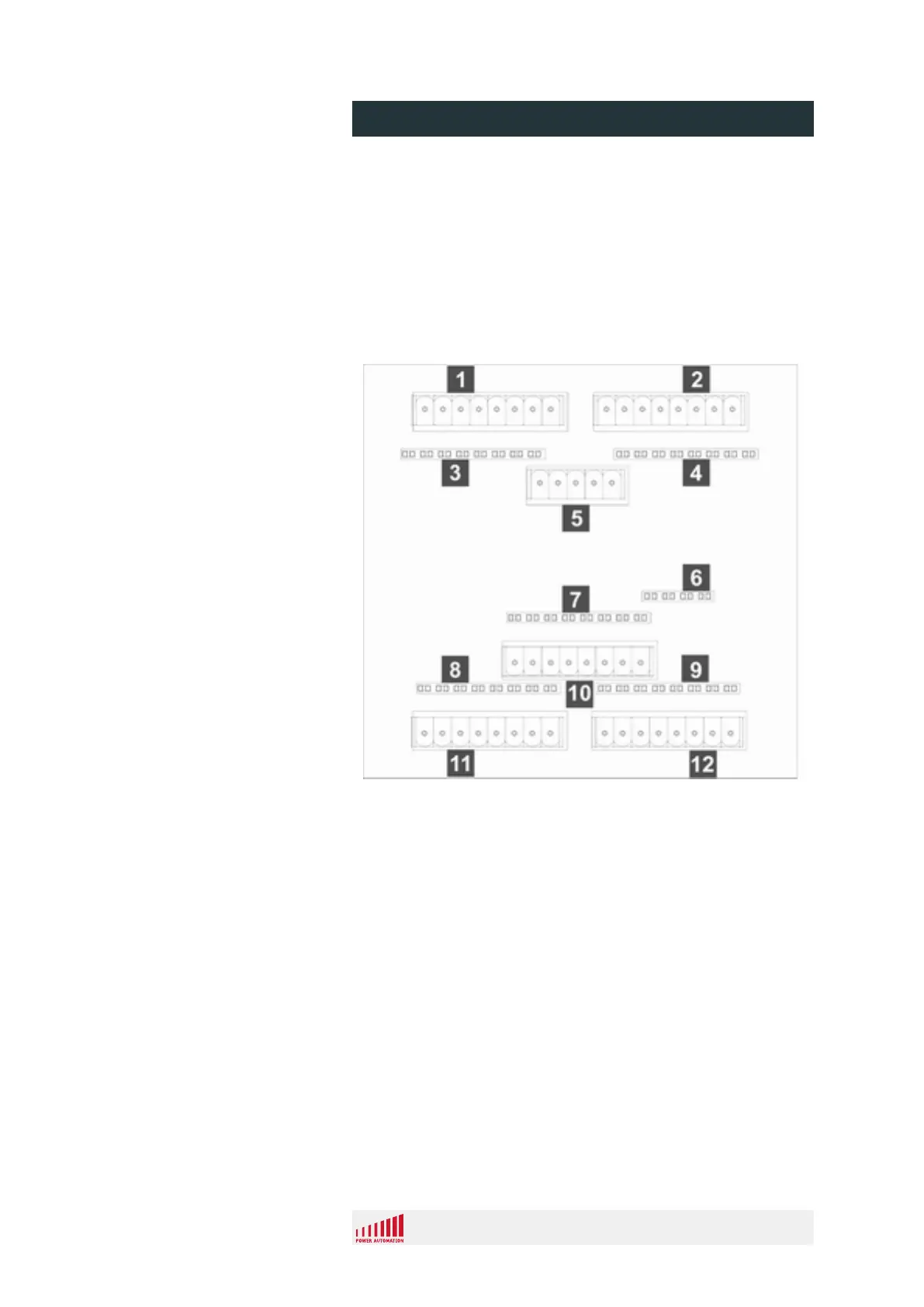

Fig. 7: Overview: connectors module 2416 EL
1 Output byte 2 (X41)
2 Output byte 1 (X40)
3 Status LEDs output byte 2
4 Status LEDs output byte 1
5 Power connector +24 V (X30)
6 Module status LEDs
7 Status LEDs input byte 2
8 Status LEDs input byte 1
9 Status LEDs input byte 3
10 Input byte 2 (X46)
11 Input byte 1 (X45)
12 Input byte 3 (X47)
PA 8000 EL CNC control unit
Design and function
24.09.2015 | 28
