3.3.2.3 Output schematic
This figure shows how the outputs are realized on each 2416 EL
module.

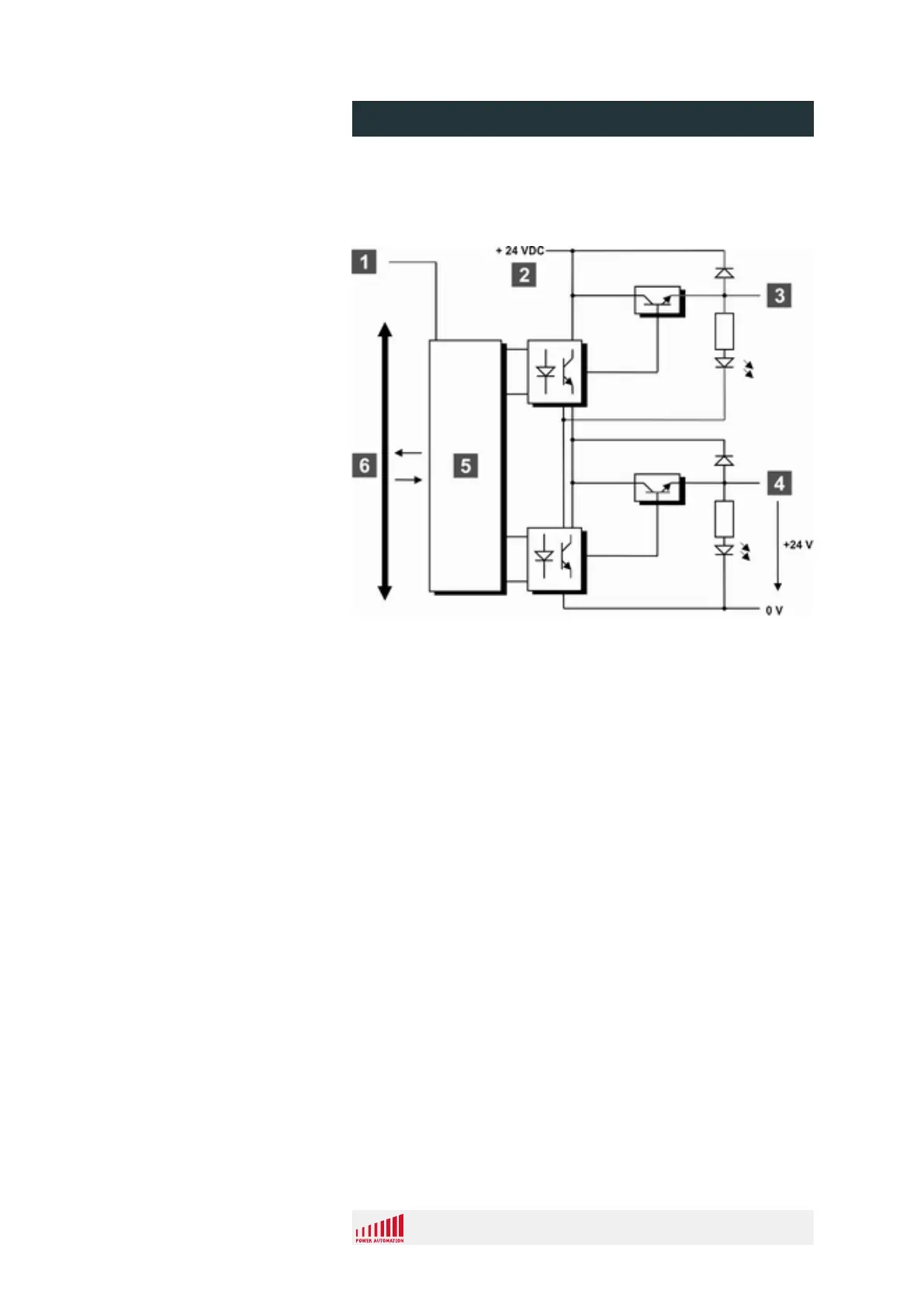

Fig. 18: Module 2416 EL output schematic
1 Supplied from PCI Superbus board
2 Output supply input (-15 % - +12.5 %)
3 Output n + 1
4 Output n
5 Logic
6 Internal serial bus
PA 8000 EL CNC control unit
Design and function
24.09.2015 | 42
