3.8 PAMIO interface (superbus)
The control unit's interfaces are extendable via the Superbus inter-
face. A variety of I/O and axes extension modules (PAMIO) can be
connected to the connector.

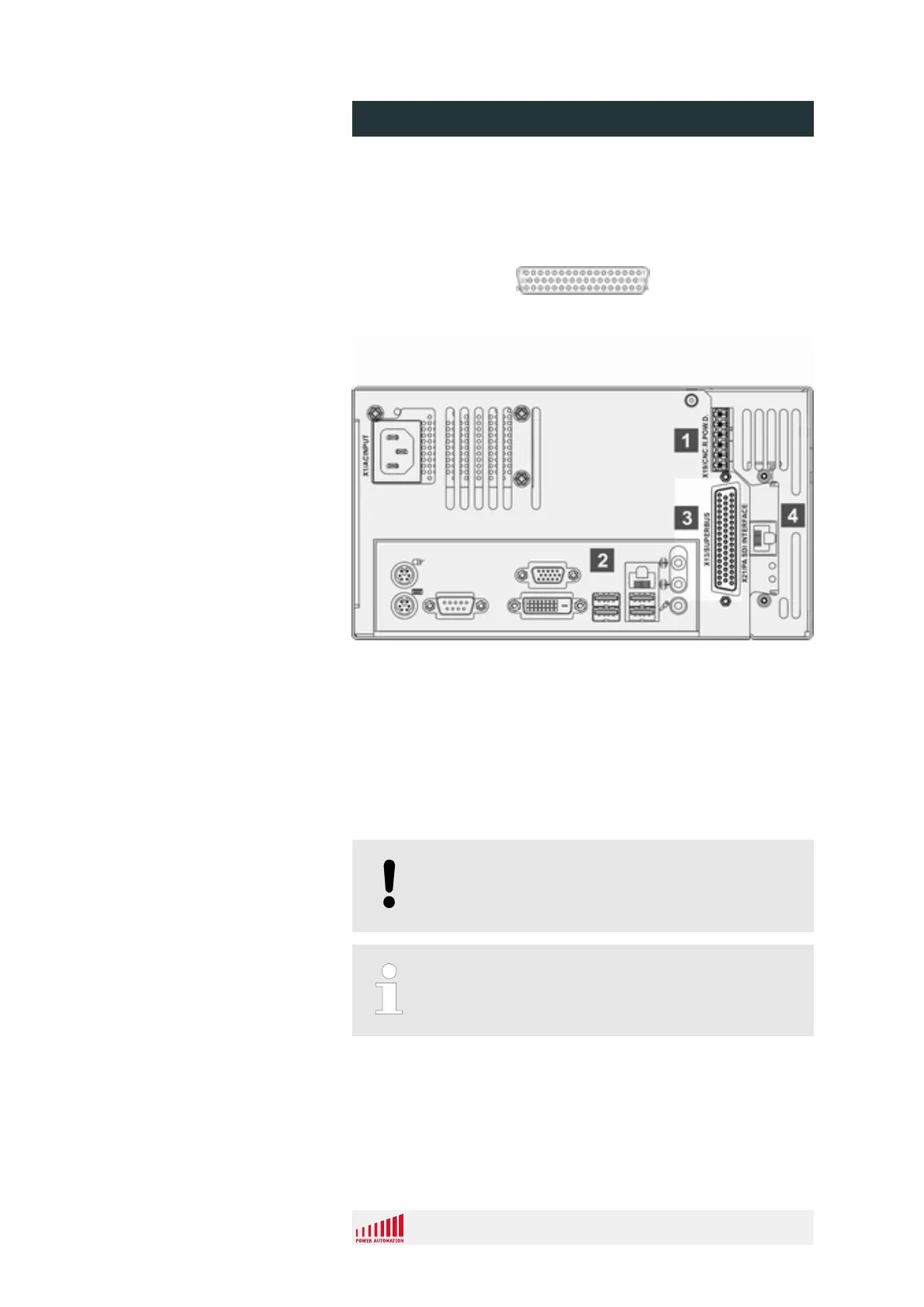

Fig. 35: Superbus connector
Fig. 36: Location superbus connector
Every PA 8000 EL model has a PAMIO superbus connector
located on the PCI interface board.
For further information see
Ä Chapter 3.8.1 “PAMIO boxes and
modules” on page 61 or the PA Accessories installation manual.
The interface cable required to connect PAMIO modules can be
ordered from Power Automation.
NOTICE!
All cables connected to the control unit are intended
for stationary use only.
The cable shield is connected to both connector cas-
ings.
Overview
Cable Specification
PA 8000 EL CNC control unit
Design and function
24.09.2015 | 60
