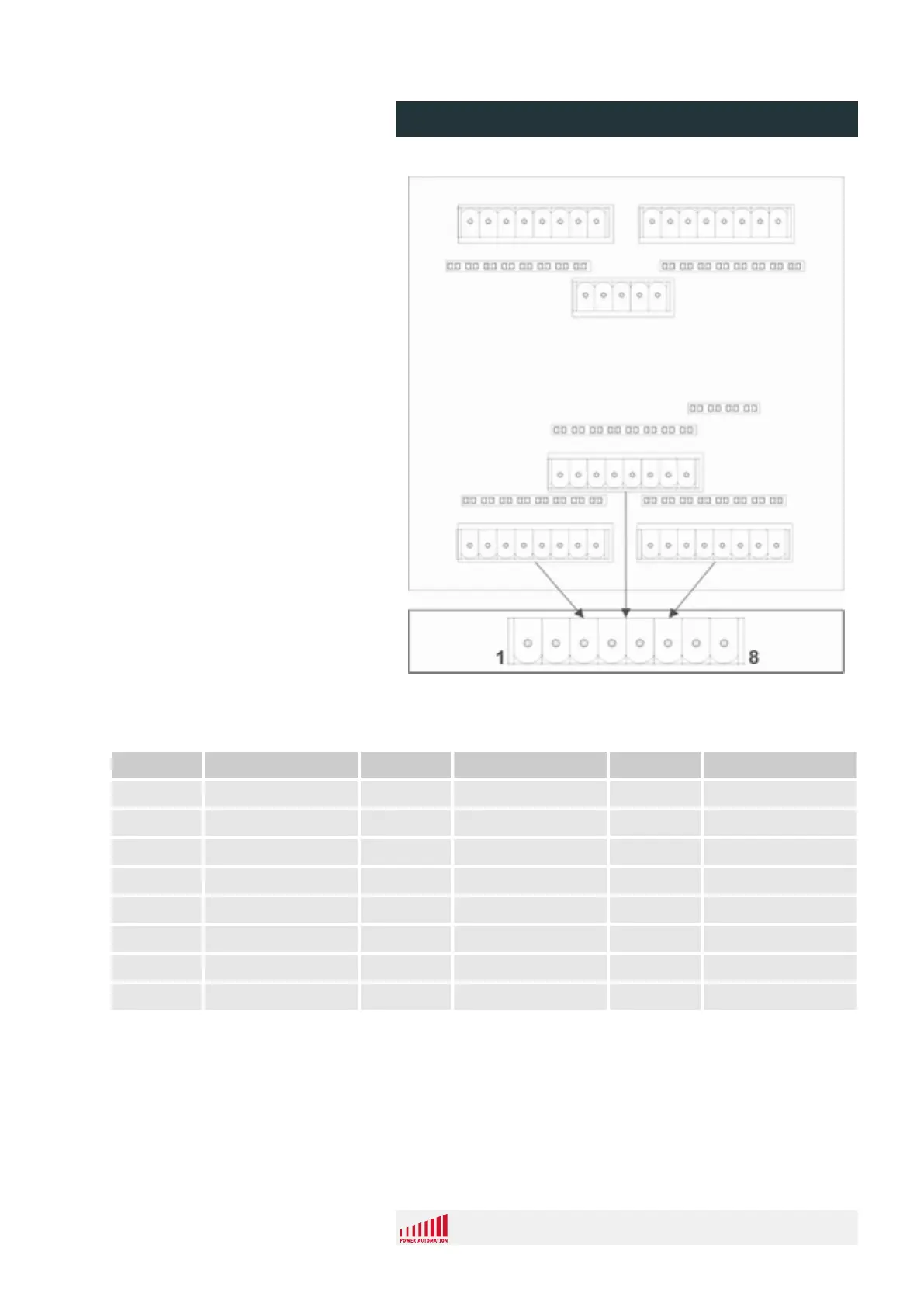

Fig. 10: Pin assignment
Byte 1 +24 V input Byte 2 +24 V input Byte 3 +24 V input
pin 1 1. input bit pin 1 9. input bit pin 1 17. input bit
pin 2 2. input bit pin 2 10. input bit pin 2 18. input bit
pin 3 3. input bit pin 3 11. input bit pin 3 19. input bit
pin 4 4. input bit pin 4 12. input bit pin 4 20. input bit
pin 5 5. input bit pin 5 13. input bit pin 5 21. input bit
pin 6 6. input bit pin 6 14. input bit pin 6 22. input bit
pin 7 7. input bit pin 7 15. input bit pin 7 23. input bit
pin 8 8. input bit pin 8 16. input bit pin 8 24. input bit
Pin Assignment
PA 8000 EL CNC control unit
Design and function
24.09.2015 | 31
